Solar Energy Potential in Palmas, Brazil

Palmas, Brazil, located in the Southern Sub Tropics at latitude -26.4861 and longitude -51.981, offers a promising location for solar energy generation throughout the year. The solar energy output varies considerably across seasons, with the highest production occurring during summer months. The seasonal variations in electricity output are quite significant. During summer, each kilowatt of installed solar capacity generates an impressive 6.41 kWh per day. Spring follows as the second most productive season with 5.53 kWh per day. Autumn sees a moderate decrease to 4.84 kWh per day, while winter represents the lowest production period with 3.72 kWh per day. For those considering solar installation in Palmas, the optimal times for maximum energy generation are clearly the summer and spring seasons. These periods, which span approximately half the year, provide significantly higher solar yields compared to autumn and winter.

Optimal Panel Installation

For fixed solar panel installations in Palmas, the ideal tilt angle to maximize year-round energy production is 24 degrees facing North. This specific angle has been calculated taking into account the location's latitude, the sun's position throughout the year, and the weighted solar potential across different seasons.

Environmental Considerations

There are several environmental factors that could potentially impact solar production in Palmas:

• Seasonal rainfall patterns, particularly during the summer months, may temporarily reduce solar output despite this being the season with highest potential
• Morning fog in valley areas, especially during winter and autumn, can delay peak production hours
• Dust accumulation from nearby agricultural activities can gradually reduce panel efficiency

Preventative measures to mitigate these factors include installing panels at a slightly steeper angle than the recommended 24 degrees in areas prone to dust accumulation, implementing automated cleaning systems calibrated to local rainfall patterns, and positioning arrays away from low-lying areas where fog tends to linger. Additionally, using high-quality panels with anti-reflective coatings can help maximize energy capture during the less productive winter months. Despite these considerations, the overall solar potential in Palmas remains favorable, with an average daily production of over 5 kWh per installed kilowatt when averaged across the year, making it a viable location for solar PV investments.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

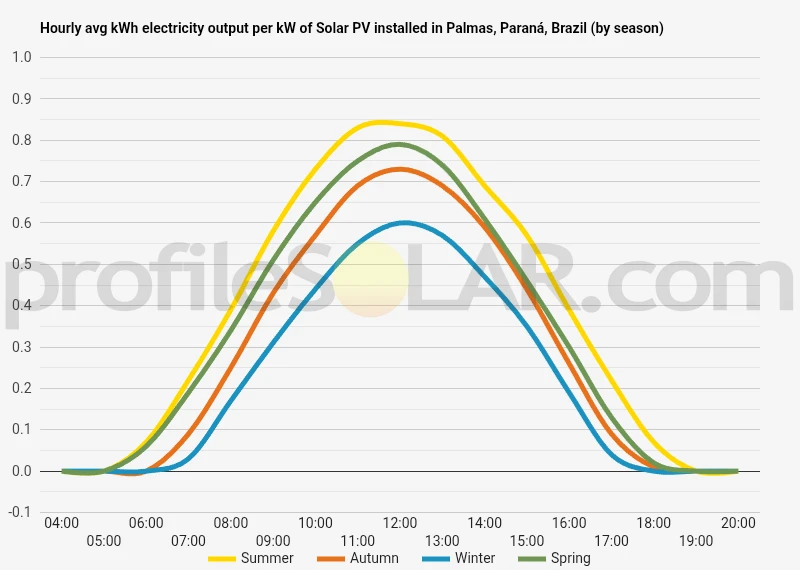

Solar output per kW of installed solar PV by season in Palmas, Paraná

Seasonal solar PV output for Latitude: -26.4861, Longitude: -51.981 (Palmas, Paraná, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Palmas, Paraná, Brazil

To maximize your solar PV system's energy output in Palmas, Paraná, Brazil (Lat/Long -26.4861, -51.981) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Palmas, Paraná, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Palmas, Paraná, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	42° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Palmas, Paraná, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Palmas, Paraná, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Palmas, Paraná, Brazil

The topography around Palmas in the state of Paraná, southern Brazil, is characterized by undulating terrain that forms part of the broader Southern Brazilian Plateau. This region features a mix of rolling hills, plateaus, and shallow valleys with elevations generally ranging between 1,000 and 1,300 meters above sea level. The landscape has been shaped by the geological processes of the Serra Geral formation, resulting in basaltic rock formations that underlie much of the area. The municipality sits within a transition zone between the Atlantic Forest biome and the Araucaria moist forests, with the natural vegetation historically dominated by Araucaria pine trees, though much of this has been cleared for agriculture and urban development. The terrain gradually descends toward the Iguaçu River basin to the south, while more pronounced hills rise to the east toward the Serra da Esperança.

Hydrography

The area around Palmas is well-watered, with numerous streams and small rivers forming part of the upper Iguaçu River watershed. This hydrographic network has carved shallow valleys throughout the region, creating a gently dissected plateau. The Iratim River flows near the western portion of the municipality, while smaller tributaries crisscross the surrounding countryside.

Climate Influence on Topography

The subtropical highland climate of the region has contributed to the weathering patterns visible in the landscape. The combination of wet seasons and the region's geology has resulted in moderately deep, often reddish soils that cover much of the undulating terrain. Frost and occasional winter freezes are common due to the elevation, which affects both the natural vegetation patterns and agricultural possibilities.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Palmas would be the gently sloping plateaus and broader hilltops that face northward (in the Southern Hemisphere, north-facing slopes receive more direct sunlight). These areas offer several advantages: The elevated plateaus to the northeast and northwest of the urban center provide relatively flat terrain that would require minimal grading for solar array installation. These locations at higher elevations typically experience less morning fog than the valley bottoms, allowing for earlier solar exposure during the day. The agricultural lands that have already been cleared of native vegetation, particularly in the northern portions of the municipality, present opportunities for solar development with reduced environmental impact compared to forested areas. These locations often have existing access roads, simplifying construction logistics and maintenance. The drier, more open grassland areas (campos) that characterize portions of the region offer good solar exposure with minimal shading concerns. These natural clearings typically have less ecological sensitivity than forested zones, potentially streamlining environmental permitting processes. Areas to avoid would include the steeper slopes along the eastern mountain ridges, where installation would be technically challenging and could increase erosion risks. Similarly, the lower-lying areas along watercourses should be avoided due to potential flooding concerns and higher morning fog frequency, which could reduce overall solar efficiency. The southwestern portions of the region, where the terrain begins to descend more dramatically toward the Iguaçu basin, offer some promising sites on the upper slopes and ridge lines, provided they have northerly aspects and reasonable access to existing transmission infrastructure.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
