Quatis, Rio de Janeiro, Brazil presents a moderately favorable location for year-round solar photovoltaic energy generation. Located in the tropical region, this area benefits from relatively consistent sunlight throughout the year, with seasonal variations driven more by wet and dry periods than dramatic changes in daylight hours.

Seasonal Solar Performance

The solar energy output at Quatis varies significantly across the seasons. Summer delivers the strongest performance at 6.15 kWh per day per installed kilowatt, making it the optimal time for solar generation. Spring follows as the second-best season with 5.32 kWh/day per kW, while autumn produces 5.24 kWh/day per kW. Winter represents the lowest production period at 4.54 kWh/day per kW, though this still maintains reasonable output levels. For maximum year-round energy production from a fixed panel installation at this location, solar panels should be tilted at 21 degrees facing north. This angle optimizes the total annual solar collection by accounting for the sun's varying position throughout the year and the area's specific latitude.

Environmental Challenges and Solutions

Several local factors can potentially impact solar energy production in Quatis. The tropical climate brings distinct wet and dry seasons, with heavy rainfall during wet periods that can reduce solar irradiance and create challenges for equipment maintenance. High humidity levels common in tropical regions can lead to accelerated degradation of solar panels and electrical components. Additionally, the warm temperatures year-round, while beneficial for consistent sunlight, can actually reduce solar panel efficiency since photovoltaic cells perform less effectively as temperatures rise.

Preventative Installation Measures

To maximize solar production despite these challenges, several installation strategies prove effective:

• Install panels with adequate ventilation spacing to promote air circulation and cooling
• Use corrosion-resistant mounting hardware and electrical components rated for high-humidity environments
• Implement proper drainage systems to prevent water accumulation around equipment
• Select solar panels with anti-reflective coatings and self-cleaning properties to minimize maintenance needs during rainy seasons

Regular maintenance scheduling becomes particularly important in this climate, with cleaning and inspection routines adjusted to account for the wet season's impact on equipment performance and accessibility.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

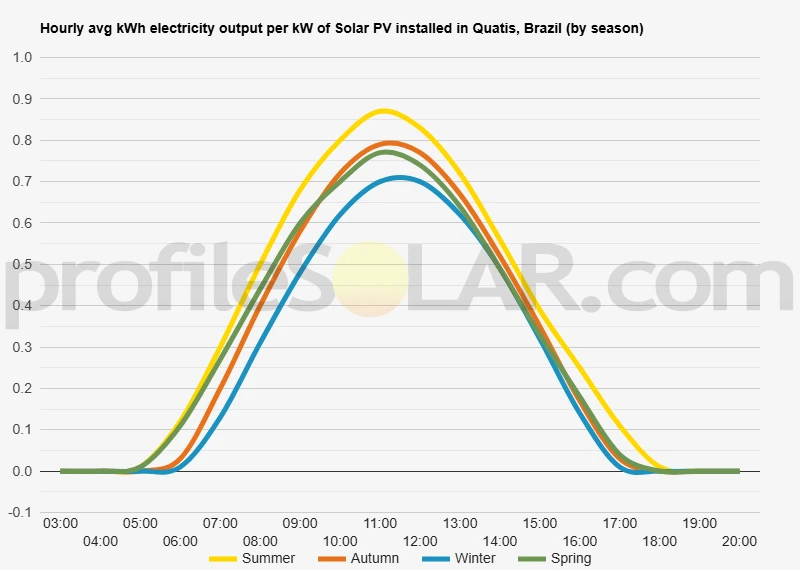

Solar output per kW of installed solar PV by season in Quatis

Seasonal solar PV output for Latitude: -22.3623, Longitude: -44.2322 (Quatis, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Quatis, Brazil

To maximize your solar PV system's energy output in Quatis, Brazil (Lat/Long -22.3623, -44.2322) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Quatis, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Quatis, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Quatis, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Quatis, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Quatis, Brazil

Topographical Features of Quatis

Quatis sits in the southeastern region of Rio de Janeiro state, nestled within the Paraíba Valley between the Serra da Mantiqueira mountain range to the north and the Serra do Mar coastal mountains to the south. The municipality occupies a transitional zone where the Brazilian Highlands begin to descend toward the coastal lowlands, creating a landscape characterized by rolling hills, gentle slopes, and relatively modest elevation changes. The terrain around Quatis features predominantly undulating topography with elevations ranging from approximately 400 to 800 meters above sea level. The area displays the classic geomorphology of the Paraíba Valley, with rounded hilltops and broad valleys carved by ancient river systems. These geological formations result from millions of years of erosion acting upon the crystalline basement rocks that form the foundation of this part of the Brazilian Shield. Local drainage patterns flow primarily toward the Paraíba do Sul River system, with numerous small streams and tributaries creating shallow valleys throughout the region. The watershed boundaries create natural ridgelines that often provide elevated positions with minimal obstruction from surrounding terrain features.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie on the broader hilltops and gentle south-facing slopes that characterize much of the terrain surrounding Quatis. These elevated positions typically offer excellent exposure to solar radiation while remaining accessible for construction and maintenance activities. The rolling plateau areas to the east and southeast of the municipal center present particularly favorable conditions for solar development. These zones combine relatively flat or gently sloping terrain with good drainage characteristics and minimal shading from adjacent topographical features. The natural elevation of these areas also provides advantages in terms of air circulation and temperature management for solar panel efficiency. Agricultural areas on the broader valley floors could also accommodate large solar installations, particularly where the land use patterns allow for dual-purpose development or where farming activities are transitioning. These flatter areas offer easier construction access and reduced grading requirements, though careful consideration of drainage patterns would be essential during the design phase. The western portions of the region, where the terrain begins to rise more steeply toward the Serra da Mantiqueira foothills, would be less suitable for large-scale development due to increased slope angles and potential shading issues from the mountainous terrain. Similarly, the narrow valley bottoms and areas with significant forest cover would present greater environmental and logistical challenges for solar installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
