Trindade, Brazil presents an excellent location for year-round solar energy generation through photovoltaic (PV) systems. Located in the tropical region at coordinates -7.7833, -40.3341, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than traditional temperature-based seasons.

Solar Energy Output Performance

The solar energy production at Trindade shows impressive and consistent performance across all seasons. During summer, solar panels generate 5.50 kWh per day for each kW of installed capacity. Autumn sees a slight improvement to 5.87 kWh/day per kW, while winter production increases further to 6.32 kWh/day per kW. Spring emerges as the peak season for solar generation, delivering an outstanding 7.15 kWh per day per kW of installed solar capacity. This seasonal pattern makes spring and winter the most productive periods for solar energy harvesting at this location.

Optimal Panel Configuration

For maximum year-round solar production at Trindade, fixed solar panels should be tilted at 8 degrees toward the north. This optimal angle is calculated by analyzing daily solar elevation angles at the specific latitude, determining optimal panel tilt for each day, and weighting these angles using solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this tropical location:

• Heavy rainfall and storms: The wet season brings intense precipitation that can reduce solar irradiance and potentially damage equipment
• High humidity: Persistent moisture in the air can cause corrosion and electrical issues in solar components
• Dust and debris accumulation: During dry periods, dust buildup on panels significantly reduces efficiency
• Extreme heat: While sunlight is abundant, excessive temperatures can decrease panel efficiency and accelerate component degradation

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Robust mounting systems: Use corrosion-resistant materials like anodized aluminum or stainless steel, with secure anchoring to withstand strong winds and storms
• Improved drainage: Design installations with proper water runoff to prevent standing water and reduce humidity-related issues
• Regular cleaning protocols: Establish routine maintenance schedules for panel cleaning, particularly important during dusty dry seasons
• Enhanced ventilation: Install panels with adequate air circulation underneath to reduce operating temperatures and improve efficiency
• Quality electrical components: Use weather-sealed inverters and electrical connections rated for high humidity and temperature fluctuations

Despite these potential challenges, Trindade's consistent solar output throughout the year, particularly during spring and winter months, makes it a highly suitable location for solar PV installations when proper preventative measures are implemented during the design and installation phases.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

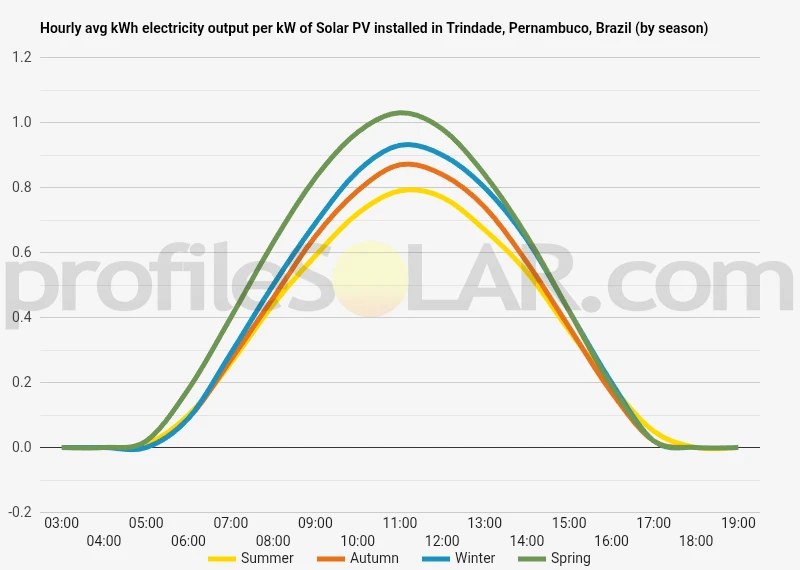

Solar output per kW of installed solar PV by season in Trindade, Pernambuco

Seasonal solar PV output for Latitude: -7.7833, Longitude: -40.3341 (Trindade, Pernambuco, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° North in Trindade, Pernambuco, Brazil

To maximize your solar PV system's energy output in Trindade, Pernambuco, Brazil (Lat/Long -7.7833, -40.3341) throughout the year, you should tilt your panels at an angle of 8° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Trindade, Pernambuco, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Trindade, Pernambuco, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	14° North in Autumn	23° North in Winter	2° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Trindade, Pernambuco, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Trindade, Pernambuco, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Trindade, Pernambuco, Brazil

Topographical Features of the Trindade Region

The area surrounding Trindade in Brazil's Pernambuco state is characterized by a diverse topographical landscape that transitions between different elevation zones and terrain types. This region sits within the Caatinga biome, where the land gradually rises from lower-lying areas toward the more elevated interior portions of the Brazilian Northeast. The immediate vicinity of Trindade features gently rolling hills interspersed with flatter valley floors and plateau areas. The terrain is generally well-drained, with seasonal watercourses that flow during the rainy periods but remain dry for much of the year. The elevation changes are moderate rather than dramatic, creating a landscape of undulating surfaces that provide good natural drainage while avoiding the extreme slopes that would make development challenging. Moving outward from the town center, the topography becomes more varied, with some areas rising to form modest ridgelines and others opening into broader, flatter expanses. The soil composition consists primarily of crystalline bedrock covered by relatively thin layers of sediment, which creates stable ground conditions suitable for infrastructure development.

Natural Advantages for Solar Development

The semi-arid climate of this region has shaped a landscape with minimal tree cover and vegetation that remains low to the ground throughout most of the year. This natural clearing of the land reduces the need for extensive vegetation removal when preparing sites for solar installations. The sparse canopy coverage also means that shading issues are naturally minimized across large areas. The geological stability of the region, built upon ancient crystalline formations, provides excellent foundation conditions for mounting systems and supporting infrastructure. The well-drained nature of the terrain helps prevent water accumulation that could interfere with solar panel efficiency or create maintenance challenges.

Optimal Areas for Large-Scale Solar Installations

The most suitable locations for extensive solar photovoltaic developments would be the flatter plateau areas and gentle slopes found to the north and east of Trindade. These areas offer the ideal combination of relatively level terrain, good accessibility for construction and maintenance vehicles, and sufficient space for large arrays without requiring excessive grading or earthwork. The broader valley floors in the region also present excellent opportunities for solar development. These areas typically feature gentle gradients that can accommodate solar tracking systems while maintaining proper drainage. The natural clearing of these spaces means that environmental impact would be minimized during construction phases. Areas with southern-facing slopes of moderate grade would be particularly well-suited for fixed-tilt solar installations, as they can take advantage of optimal panel orientation while working with the natural contours of the land. The stable soil conditions throughout the region mean that foundation requirements would be straightforward to meet across most potential sites. The relatively low population density in the surrounding countryside means that large tracts of land could potentially be developed without significant displacement of existing communities or agricultural activities. The existing road network, while modest, provides adequate access to many of the most promising locations for solar development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
