Santa Terezinha, Brazil presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows distinct seasonal patterns. Summer delivers the strongest performance at 6.11 kWh per day per kW of installed capacity, making it the optimal time for solar generation. Spring follows as the second-best season with 4.95 kWh per day per kW, while autumn produces 4.51 kWh per day per kW. Winter presents the most challenging period for solar generation, dropping to just 3.43 kWh per day per kW of installed capacity. This represents a 44% decrease compared to summer output, which is quite substantial and should factor into any solar investment calculations.

Optimal Panel Configuration

For maximum year-round energy production at Santa Terezinha, solar panels should be installed at a fixed tilt angle of 24 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying elevation throughout the year and Earth's elliptical orbit patterns.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this location:

• Seasonal cloud cover: The dramatic winter reduction in solar output suggests significant cloud cover during cooler months, likely associated with Southern Brazil's subtropical climate patterns
• Humidity and moisture: The subtropical location typically experiences high humidity levels that can reduce panel efficiency and promote dust accumulation
• Dust and pollen buildup: Agricultural activities common in this region of Brazil can create airborne particles that settle on solar panels
• Potential for severe weather: Subtropical regions can experience intense storms, hail, and strong winds that may damage installations

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Regular cleaning schedule: Implement monthly panel cleaning during dry seasons and bi-weekly cleaning during humid periods to remove dust, pollen, and moisture residue
• Robust mounting systems: Install reinforced mounting hardware designed to withstand high winds and potential hail damage common in subtropical climates
• Adequate ventilation: Ensure proper air circulation around panels to prevent overheating during humid conditions, which can reduce efficiency
• Quality inverters with monitoring: Use high-quality inverters with remote monitoring capabilities to quickly identify and address performance issues
• Strategic placement: Position panels away from areas with heavy tree coverage or agricultural dust sources where possible

Despite the winter performance reduction, Santa Terezinha's strong summer and decent spring/autumn output make it a viable location for solar energy, particularly when proper installation and maintenance practices are followed.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

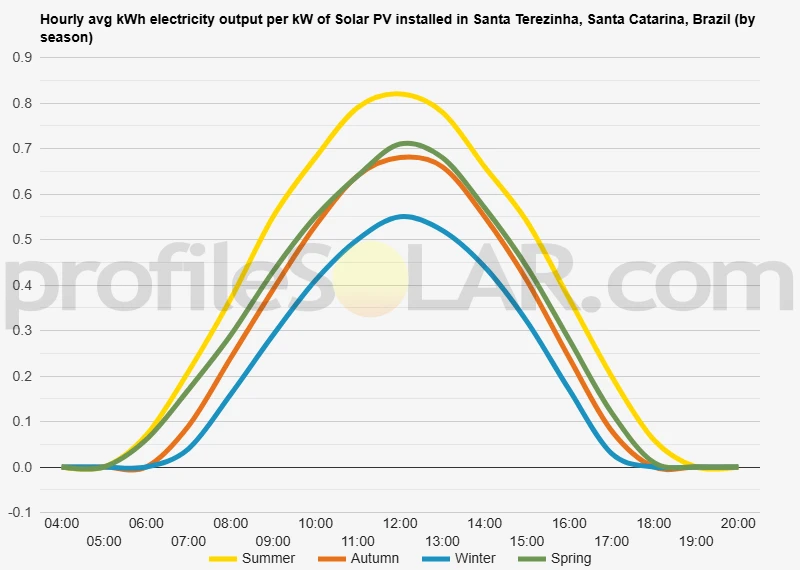

Solar output per kW of installed solar PV by season in Santa Terezinha, Santa Catarina

Seasonal solar PV output for Latitude: -26.6696, Longitude: -50.0134 (Santa Terezinha, Santa Catarina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Santa Terezinha, Santa Catarina, Brazil

To maximize your solar PV system's energy output in Santa Terezinha, Santa Catarina, Brazil (Lat/Long -26.6696, -50.0134) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Santa Terezinha, Santa Catarina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Santa Terezinha, Santa Catarina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	42° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Santa Terezinha, Santa Catarina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Santa Terezinha, Santa Catarina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Santa Terezinha, Santa Catarina, Brazil

Topography Around Santa Terezinha

Santa Terezinha is located in the state of Santa Catarina in southern Brazil, positioned within the Atlantic Forest region where the landscape transitions from coastal plains to highland plateaus. The immediate area around the municipality features a predominantly hilly terrain with rolling topography characteristic of the Serra Geral formation. Elevations in the region typically range from 800 to 1,200 meters above sea level, creating a landscape of gentle to moderate slopes interspersed with broader valley floors.

The terrain exhibits the classic features of the southern Brazilian highlands, with rounded hilltops and wide, shallow valleys carved by centuries of erosion. The underlying geology consists primarily of volcanic rocks from ancient lava flows, which have weathered to create fertile soils but also contribute to the undulating nature of the landscape. Several small rivers and streams flow through the area, creating natural drainage patterns that have shaped the local topography into a series of ridges and valleys running in roughly parallel formations.

The vegetation in the region has been largely modified by agricultural activities, with much of the original Atlantic Forest replaced by pastures, crop fields, and planted forests. This land use change has created a mosaic of open areas and forested patches across the rolling terrain. The climate is subtropical highland, with the elevation contributing to cooler temperatures than found in lower-lying areas of Santa Catarina.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Santa Terezinha would be the broader valley floors and gentle south-facing slopes that characterize much of the agricultural landscape. These areas offer several advantages for solar development, including relatively flat terrain that minimizes construction costs and reduces the need for extensive grading or terracing of the land.

The agricultural areas that have been cleared of forest vegetation provide excellent opportunities for solar installations, as they already feature open canopy conditions with minimal shading from trees or other obstacles. Many of these areas consist of pasturelands or crop fields on gentle slopes of less than 10 degrees, which are ideal for mounting solar panels while maintaining good drainage and accessibility for maintenance vehicles.

The elevated plateaus and ridge tops in the region, while offering excellent exposure to solar radiation due to their prominent positions in the landscape, may present challenges for large-scale development due to steeper access routes and potential wind exposure. However, some of the broader, flatter ridge areas could be suitable for solar installations, particularly those that have been cleared for agriculture and offer good road access.

Areas near existing infrastructure, including the network of rural roads that connect the agricultural properties throughout the region, would be particularly advantageous for solar development. The proximity to electrical transmission lines that serve the rural communities and agricultural operations would reduce the costs associated with connecting solar installations to the power grid. The relatively stable geology of the volcanic bedrock provides a solid foundation for mounting systems, though proper soil analysis would be necessary to determine the most appropriate foundation designs for specific sites.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
