Pinhalzinho, Brazil, located in the Southern Sub Tropics at coordinates -26.8175, -52.9745, offers reasonably good conditions for year-round solar energy generation, though with notable seasonal variations that potential solar installers should understand.

Seasonal Solar Performance

The solar energy output at this location varies significantly throughout the year. Summer provides the strongest performance at 7.02 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best season with 6.07 kWh per day per kW, while autumn drops to 5.23 kWh per day per kW. Winter presents the most challenging conditions, producing only 3.94 kWh per day per kW of installed capacity. This seasonal pattern means that solar installations in Pinhalzinho will generate nearly 78% more electricity during summer compared to winter months. The ideal times for solar generation are clearly the warmer months from spring through summer, when the sun's path is more favorable for this southern hemisphere location.

Optimal Panel Configuration

For maximum year-round solar production at Pinhalzinho, fixed solar panels should be tilted at 24 degrees facing north. This angle has been calculated to optimize total annual energy output by accounting for the sun's varying position throughout the year and weighting the angles based on actual solar irradiance data for this specific latitude.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Pinhalzinho region could potentially impact solar energy production:

• Subtropical humidity and cloud cover: The Southern Sub Tropical climate typically brings higher humidity levels and more frequent cloud formation, particularly during certain seasons, which can reduce solar irradiance reaching the panels
• Seasonal precipitation patterns: Increased rainfall during specific periods can lead to more cloudy days and reduced solar output, though it also helps keep panels clean
• Agricultural dust and pollen: Being in a rural Brazilian location, airborne particles from farming activities and natural vegetation can accumulate on solar panels, reducing their efficiency
• Temperature effects: While solar panels need sunlight, excessive heat can actually reduce their efficiency, and the subtropical climate may create challenging temperature conditions during peak summer months

Preventative Measures for Better Performance

To maximize solar energy production despite these local challenges, several installation strategies can be employed:

• Regular cleaning schedules: Implement monthly panel cleaning to remove dust, pollen, and other debris, with more frequent cleaning during high-pollen seasons or after dust storms
• Proper ventilation design: Install panels with adequate spacing beneath to allow air circulation and prevent overheating, which is particularly important in the subtropical climate
• Quality mounting systems: Use corrosion-resistant mounting hardware suitable for humid subtropical conditions to ensure long-term structural integrity
• Monitoring systems: Install performance monitoring equipment to quickly identify when panels need cleaning or maintenance, helping maintain optimal output year-round

Overall, while Pinhalzinho presents some challenges typical of subtropical locations, proper installation techniques and maintenance practices can help ensure reliable solar energy production throughout the year, with particularly strong performance during the spring and summer seasons.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

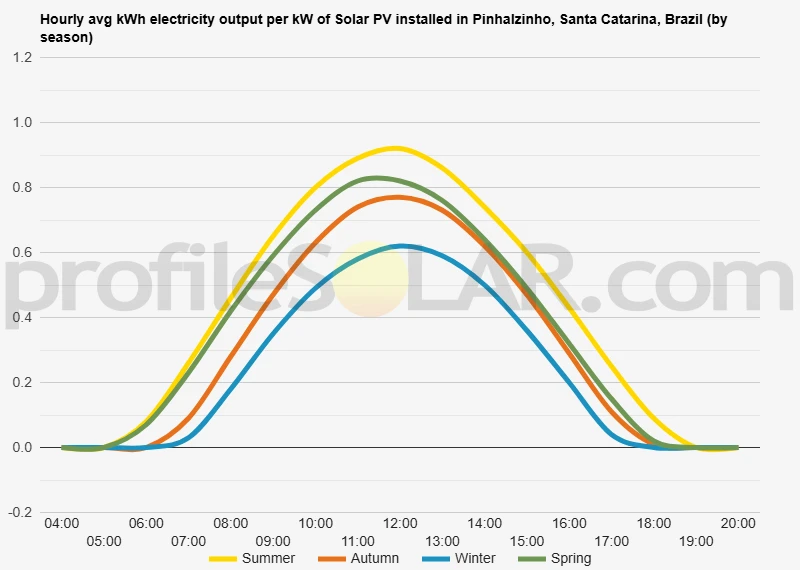

Solar output per kW of installed solar PV by season in Pinhalzinho, Santa Catarina

Seasonal solar PV output for Latitude: -26.8175, Longitude: -52.9745 (Pinhalzinho, Santa Catarina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Pinhalzinho, Santa Catarina, Brazil

To maximize your solar PV system's energy output in Pinhalzinho, Santa Catarina, Brazil (Lat/Long -26.8175, -52.9745) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pinhalzinho, Santa Catarina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pinhalzinho, Santa Catarina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	42° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pinhalzinho, Santa Catarina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pinhalzinho, Santa Catarina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pinhalzinho, Santa Catarina, Brazil

Topographical Features of Pinhalzinho

Pinhalzinho sits within the rolling hill country of western Santa Catarina state, positioned in Brazil's southern region where the landscape transitions from the coastal mountains toward the interior plateaus. The terrain around this municipality is characterized by gentle to moderate slopes, with elevations typically ranging from 400 to 800 meters above sea level. The topography consists of undulating hills interspersed with valleys carved by small rivers and streams that eventually drain into the Uruguay River basin. The region forms part of the broader Planalto Meridional, or Southern Plateau, which extends across much of southern Brazil. This geological formation creates a landscape of sedimentary rocks overlaid with fertile soils, resulting in terrain that is neither completely flat nor excessively mountainous. The hills tend to have rounded profiles rather than sharp ridges, a characteristic typical of this part of Santa Catarina's interior. Local drainage patterns follow the natural contours of the land, with waterways meandering through the lower-lying areas between hills. The Chapecó River system influences the broader regional topography, though Pinhalzinho itself sits on higher ground relative to the main river valleys. This elevated position contributes to the area's well-drained characteristics and provides good visibility across the surrounding countryside.

Vegetation and Land Use Patterns

The natural vegetation of the Pinhalzinho area originally consisted of mixed Atlantic Forest, known locally as Mata Atlântica, along with patches of Araucaria forest dominated by the distinctive Paraná pine trees. However, extensive agricultural development over the past century has transformed much of the landscape into farmland and pasture. The remaining forest cover tends to concentrate along steeper slopes and watercourse margins where cultivation is less practical. Agricultural land use dominates the gentler slopes and valley floors, with crops including soybeans, corn, and various other grains rotating across the landscape according to seasonal patterns. Livestock grazing also occupies significant portions of the terrain, particularly on areas with moderate slopes that are suitable for pasture but may be less ideal for row crops.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Pinhalzinho would be the broader hilltops and gentle south-facing slopes that characterize much of the local terrain. These elevated areas typically offer several advantages including good exposure to sunlight throughout the day, natural drainage that prevents water accumulation, and relatively stable ground conditions for supporting solar panel arrays. Areas with slopes between 0 and 15 degrees would be particularly well-suited for solar development, as they provide adequate drainage while minimizing the need for extensive grading or specialized mounting systems. The rolling nature of the topography means that many locations offer these ideal slope conditions across substantial contiguous areas, making them practical for utility-scale installations. Former agricultural land on the gentler hills could be readily converted to solar use, particularly areas that are currently used for grazing or less intensive farming operations. The existing rural infrastructure, including farm roads and electrical connections serving agricultural operations, could potentially be adapted to support solar facilities, reducing development costs and environmental impact. The higher elevation areas northeast and southeast of Pinhalzinho's urban center appear particularly promising, as they combine favorable topographical conditions with sufficient distance from residential areas to minimize visual impact concerns. These locations also tend to have fewer trees and other obstacles that might create shading issues for solar panels. Valley floors and areas immediately adjacent to waterways would generally be less suitable for large solar installations due to potential flooding concerns, higher humidity levels, and the likelihood of morning fog formation that could reduce energy generation efficiency during certain periods of the year.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
