Realeza, Paraná, Brazil presents a moderately favorable location for year-round solar PV energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows significant fluctuation throughout the year. Summer delivers the strongest performance at 7.02kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best period with 6.11kWh per day per kW, while autumn drops to 5.30kWh per day per kW. Winter presents the greatest challenge for solar production, with output falling to just 3.96kWh per day per kW of installed capacity. This represents nearly a 44% reduction compared to summer peak performance, which is typical for locations in the Southern Hemisphere's subtropical regions.

Optimal Installation Configuration

For maximum year-round energy production at Realeza, Paraná, solar panels should be installed at a fixed tilt angle of 23 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting these angles based on actual solar irradiance potential.

Environmental and Weather Factors

Several local factors could potentially impact solar production efficiency at this location:

• Subtropical humidity levels may lead to increased dust and debris accumulation on panels
• Seasonal rainfall patterns could affect panel cleanliness and atmospheric clarity
• Temperature fluctuations between seasons may impact panel efficiency
• Potential for severe weather events common to subtropical regions

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate spacing for air circulation to prevent overheating
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation increases
• Use high-quality mounting systems designed to withstand subtropical weather conditions
• Consider anti-reflective coatings that perform well in humid conditions
• Ensure proper drainage around installations to prevent water pooling during heavy rains

Overall, while Realeza offers decent solar potential, the significant winter reduction in output means that installations should be sized appropriately to meet energy needs during the lowest production months, or supplemented with battery storage systems to balance seasonal variations.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

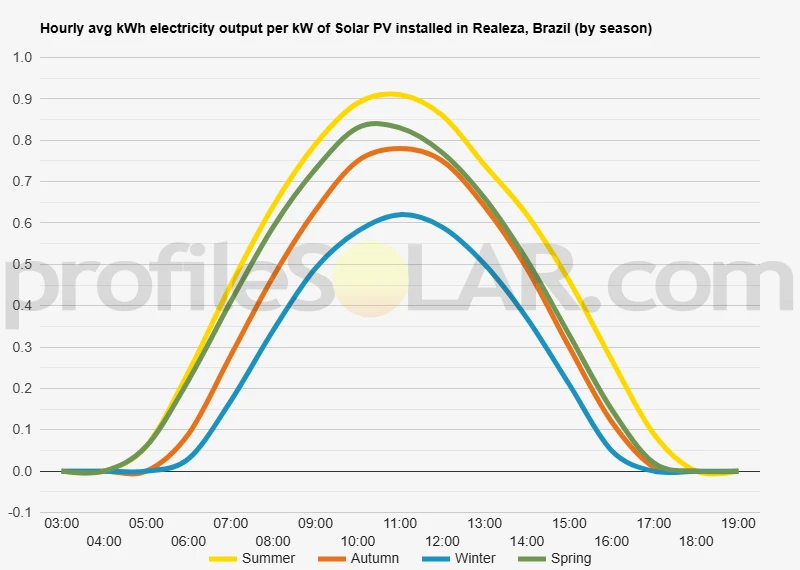

Solar output per kW of installed solar PV by season in Realeza

Seasonal solar PV output for Latitude: -25.6759, Longitude: -53.5494 (Realeza, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° North in Realeza, Brazil

To maximize your solar PV system's energy output in Realeza, Brazil (Lat/Long -25.6759, -53.5494) throughout the year, you should tilt your panels at an angle of 23° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Realeza, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Realeza, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	31° North in Autumn	41° North in Winter	18° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Realeza, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Realeza, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Realeza, Brazil

Topographical Features of the Realeza Region

Realeza sits within the gently rolling landscape of southwestern Paraná state in Brazil, positioned at an elevation of approximately 400 meters above sea level. The terrain around this municipality is characterized by undulating hills and broad valleys that form part of the larger Paraná Plateau system. This region represents a transition zone where the dramatic escarpments of the Serra Geral gradually give way to more moderate topographical features as they extend westward toward the Paraná River basin.

The immediate surroundings of Realeza feature predominantly gentle slopes with occasional steeper inclines, creating a landscape that alternates between pastoral valleys and modest ridgelines. The area is drained by several small tributaries that flow westward toward the Iguaçu River system, carving shallow valleys through the sedimentary rock formations that underlie much of this part of Paraná. These waterways have created a network of relatively flat bottomlands interspersed with rolling uplands that rise gradually from the valley floors.

Moving outward from Realeza, the topography becomes increasingly varied. To the east, the land gradually rises toward the higher elevations of the Paraná Plateau's central spine, where elevations can exceed 800 meters. Westward, the terrain generally slopes downward toward the Paraná River valley, creating increasingly expansive areas of relatively flat to gently rolling countryside. The northern and southern approaches to Realeza maintain similar characteristics to the immediate vicinity, with moderate relief and well-drained uplands separated by shallow stream valleys.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations around Realeza would be found on the broader upland areas that extend to the west and southwest of the municipality. These elevated plains offer several advantages, including relatively flat terrain that minimizes grading requirements, good drainage characteristics that reduce infrastructure complications, and expansive open areas that can accommodate large arrays without significant topographical constraints.

The rolling uplands located between Realeza and the communities of Ampére and Santa Izabel do Oeste present particularly favorable conditions. This zone features gentle slopes that rarely exceed gradients problematic for solar installations, while providing sufficient elevation to ensure good air circulation and drainage. The broader valley systems in this western direction also offer substantial flat areas where large-scale developments could be established with minimal site preparation.

Areas to the northwest, extending toward Capanema and the broader Iguaçu River valley, represent another excellent zone for solar development. Here, the topography becomes increasingly gentle, with extensive areas of low-relief terrain that would be well-suited to utility-scale photovoltaic projects. The combination of adequate elevation for drainage, minimal slope variation, and large contiguous areas of suitable land makes this northwestern sector particularly attractive for major solar installations.

The upland areas south and southwest of Realeza, extending toward the border regions with Argentina, also present favorable characteristics. These locations benefit from the gradually declining elevation toward the Paraná River system while maintaining sufficient topographical stability for large infrastructure projects. The open nature of much of this landscape, combined with its gentle relief and good accessibility via existing road networks, makes it well-suited for the substantial land requirements of utility-scale solar facilities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
