Reduto, Minas Gerais, Brazil presents a generally favorable location for year-round solar PV energy generation, with the tropical climate providing consistent sunlight throughout most of the year where seasons are characterized more by wet and dry periods rather than traditional temperature variations.

Solar Energy Production Performance

The solar energy output data for Reduto shows solid performance across all seasons. Summer delivers the highest production at 6.12 kWh per day per kW of installed solar capacity, followed by autumn at 5.50 kWh/day. Spring provides 5.13 kWh/day, while winter shows the lowest but still respectable output of 4.56 kWh/day per kW installed. The ideal times for solar generation at this location are clearly during the summer months when output peaks, though the relatively modest seasonal variation means solar panels remain productive year-round. Even during the winter low point, the system still generates about 75% of peak summer output, demonstrating good consistency.

Optimal Panel Installation

For maximum year-round energy production, fixed solar panels at Reduto should be tilted at 19 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's path throughout the year and weighting the angles based on solar irradiance data.

Environmental and Weather Challenges

Several local factors could potentially impact solar production at this location and require consideration during installation:

• Tropical rainfall patterns: The wet season brings heavy rainfall that can reduce solar irradiance and create cloud cover
• High humidity: Persistent moisture in the air can affect panel efficiency and create maintenance challenges
• Dust and debris accumulation: Tropical environments often have airborne particles that can coat panels
• Extreme weather events: Tropical storms or heavy winds during wet seasons could damage installations

Preventative Measures for Better Performance

To maximize energy production despite these challenges, several installation strategies should be implemented. Proper drainage systems around solar installations prevent water pooling and ensure quick runoff during heavy rains. Regular cleaning schedules become essential, with panels requiring more frequent washing during dusty periods or after storms. Installing panels with adequate spacing allows for better air circulation, helping to reduce the impact of humidity on system performance. Using corrosion-resistant mounting hardware and electrical components specifically rated for tropical climates extends system lifespan and maintains efficiency. Robust mounting systems designed to withstand high winds provide protection during severe weather events. Additionally, installing monitoring systems helps identify performance drops quickly, allowing for prompt maintenance when environmental factors impact energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

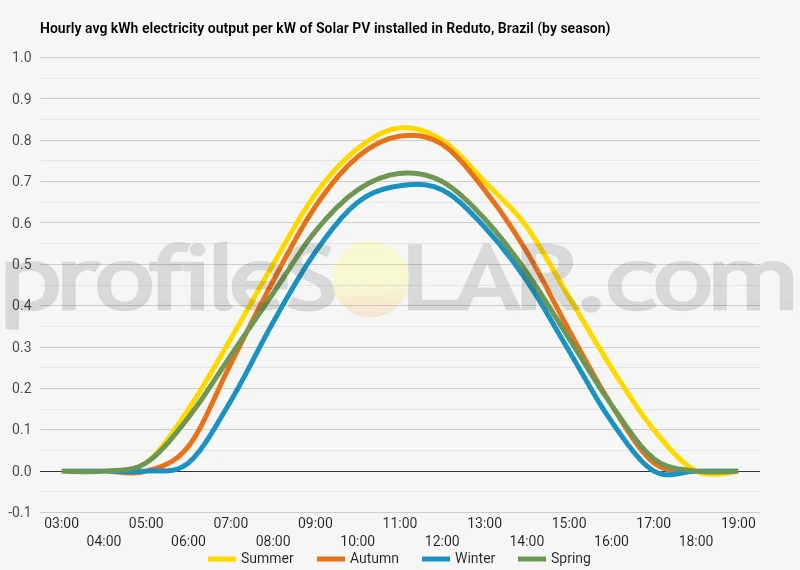

Solar output per kW of installed solar PV by season in Reduto

Seasonal solar PV output for Latitude: -20.2287, Longitude: -41.9427 (Reduto, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Reduto, Brazil

To maximize your solar PV system's energy output in Reduto, Brazil (Lat/Long -20.2287, -41.9427) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Reduto, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Reduto, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Reduto, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Reduto, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Reduto, Brazil

Topographical Features of Reduto, Brazil

Reduto is situated in the mountainous region of Minas Gerais state, nestled within the Brazilian Highlands at an elevation of approximately 850 meters above sea level. The surrounding landscape is characterized by rolling hills, steep valleys, and scattered plateaus that are typical of the southeastern Brazilian interior. This region forms part of the ancient geological formation known as the Brazilian Shield, which creates a complex terrain of undulating topography with significant elevation changes across relatively short distances.

The immediate area around Reduto features a mix of gentle slopes and more dramatic inclines, with many ridgelines running in various directions. The terrain is intersected by numerous small streams and seasonal watercourses that have carved narrow valleys through the landscape over geological time. These waterways generally flow toward larger river systems that eventually drain into the Atlantic Ocean, creating a dendritic pattern of valleys that adds to the topographical complexity.

The vegetation in this region consists primarily of Atlantic Forest remnants mixed with pastureland and agricultural areas. The natural forest cover has been largely replaced by human activities, leaving a landscape dominated by open fields, scattered woodlots, and rural settlements. The soils are generally well-drained due to the elevated terrain and sloping ground, though some areas experience seasonal waterlogging in valley bottoms.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Reduto would be the elevated plateaus and gentle south-facing slopes that offer relatively flat or moderately sloping terrain. These areas provide the stable ground conditions necessary for mounting large arrays while minimizing the need for extensive site preparation and grading work.

The higher elevation ridgelines and plateau areas extending to the north and west of Reduto present particularly attractive opportunities for solar development. These locations benefit from reduced atmospheric interference due to their elevation and typically experience less fog and low-lying cloud formation compared to the valley areas. The exposed nature of these elevated sites also means they are less likely to experience shading from surrounding terrain features.

Areas with slopes between 0 and 15 degrees would be most practical for large installations, as steeper terrain would require more complex mounting systems and potentially extensive earthwork. The existing cleared agricultural land and pastures scattered throughout the region provide ready-made development sites that would require minimal vegetation clearing, reducing both environmental impact and development costs.

The relatively dry, well-drained soils found on the hillsides and plateaus offer excellent foundation conditions for solar installations, with lower risk of ground instability or waterlogging that could affect equipment performance. Additionally, the existing network of rural roads throughout the area would facilitate construction access and ongoing maintenance operations for solar facilities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
