Resende, Rio de Janeiro, Brazil, situated at latitude -22.4676 and longitude -44.4465, offers a promising location for solar PV energy generation. Located in the tropics, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods than temperature fluctuations.

The solar energy potential in Resende demonstrates a favorable year-round output. During summer, the region experiences peak production at 6.14 kWh per day for each kilowatt of installed solar capacity. Although there's a slight decrease in other seasons, the output remains substantial: 5.32 kWh/day in spring, 5.23 kWh/day in autumn, and 4.52 kWh/day in winter.

Optimal Solar Panel Installation

For fixed panel installations in Resende, Rio de Janeiro, the ideal tilt angle to maximize year-round solar production is 21 degrees facing North. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the Earth's elliptical orbit and the location's specific latitude.

Seasonal Variations and Energy Generation

While Resende experiences consistent sunlight, there are still seasonal variations in solar energy production. Summer months offer the highest potential for solar generation, making it an excellent time for peak energy production. However, the relatively small difference between summer and winter output (approximately 1.62 kWh/day) indicates that the location is suitable for year-round solar energy generation.

Environmental and Weather Considerations

Resende's tropical climate presents some challenges for solar PV installations. The region experiences a wet season, typically from October to March, which could potentially impact solar production due to increased cloud cover. However, this factor is not significant enough to severely impede overall annual energy generation.

To mitigate the effects of the wet season and optimize solar production, consider the following preventative measures:

• Install high-quality, water-resistant solar panels designed for tropical climates
• Implement a regular cleaning schedule to remove dust and debris, especially during the dry season
• Use micro-inverters or power optimizers to minimize the impact of partial shading from clouds

In conclusion, Resende, Rio de Janeiro, Brazil, presents a highly favorable location for solar PV energy generation. With its consistent sunlight and relatively stable seasonal output, the area offers excellent potential for year-round solar energy production, making it an ideal choice for both residential and commercial solar installations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

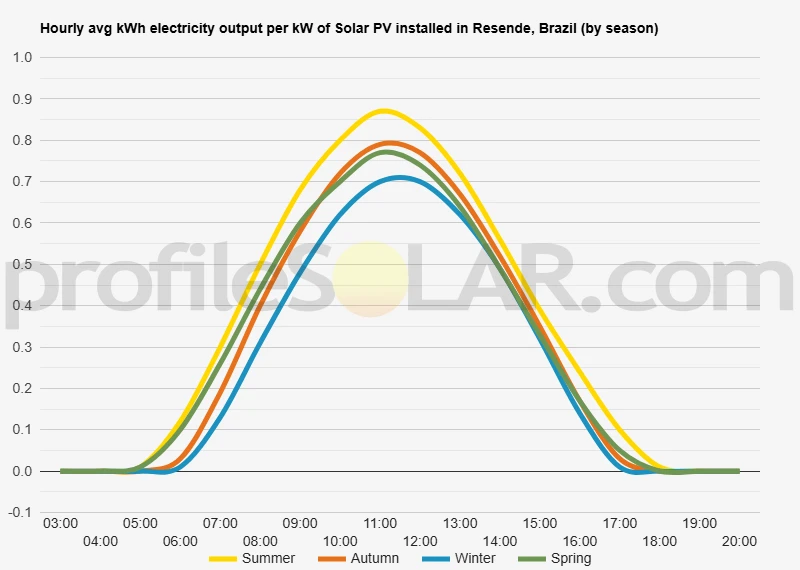

Solar output per kW of installed solar PV by season in Resende

Seasonal solar PV output for Latitude: -22.4676, Longitude: -44.4465 (Resende, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Resende, Brazil

To maximize your solar PV system's energy output in Resende, Brazil (Lat/Long -22.4676, -44.4465) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Resende, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Resende, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Resende, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Resende, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Resende, Brazil

The topography around Resende, Brazil, is characterized by a diverse and picturesque landscape. Located in the state of Rio de Janeiro, Resende sits within the Paraíba Valley, nestled between two prominent mountain ranges: the Serra da Mantiqueira to the north and the Serra do Mar to the south. This positioning creates a striking contrast between the relatively flat valley floor and the surrounding steep, forested mountains. The Paraíba do Sul River, a major waterway in southeastern Brazil, flows through the region, carving out a wide valley and contributing to the area's fertile lowlands. The river's presence has played a significant role in shaping the local terrain, creating alluvial plains and gentle slopes near its banks. These lowland areas are primarily used for agriculture and urban development. As one moves away from the river and the central valley, the terrain becomes increasingly hilly and eventually transitions into the rugged mountain slopes. The Serra da Mantiqueira, in particular, features dramatic elevations, with some peaks reaching over 2,000 meters above sea level. These mountains are covered in lush Atlantic Forest vegetation, adding to the region's ecological importance and scenic beauty.

Potential Areas for Large-Scale Solar PV

When considering areas near Resende that would be most suited for large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would combine ample sunlight exposure, relatively flat terrain, and proximity to existing infrastructure. The valley floor and gently sloping areas near the Paraíba do Sul River offer promising potential for solar PV development. These locations benefit from less shadowing from the surrounding mountains and generally have better accessibility. The agricultural lands that are less productive or have been set aside could be particularly suitable for solar farms, as they often provide the necessary open space and are already connected to road networks. Some of the lower foothills and plateaus leading up to the mountain ranges might also be considered for solar installations. These elevated areas could potentially receive more consistent sunlight throughout the day, although careful site selection would be necessary to avoid steep slopes or heavily forested regions. It's important to note that while the mountainous areas receive abundant sunlight, their steep terrain and dense forest cover make them less practical for large-scale solar developments. The costs and environmental impact of clearing these areas would likely outweigh the benefits. Any large-scale solar PV project in the region would need to balance energy production potential with environmental conservation efforts, as the area around Resende is known for its rich biodiversity and important ecosystems. Proper planning and environmental impact assessments would be crucial to ensure sustainable development that respects the unique topography and natural heritage of the region.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
