Rio Bonito, Rio de Janeiro, Brazil offers a promising location for solar PV energy generation, situated in the tropical region where sunlight patterns differ from temperate zones. This location experiences relatively consistent solar conditions throughout the year, though with notable seasonal variations that affect energy production.

Seasonal Solar Production

Solar panels installed in Rio Bonito demonstrate varying performance across the four seasons. Summer months yield the highest energy output at 6.39kWh per day for each kilowatt of installed capacity. Production decreases slightly during autumn to 5.19kWh/day, before reaching the annual low in winter months at 4.24kWh/day. Spring sees a recovery to 4.90kWh/day as the region transitions back toward summer conditions.

This seasonal pattern shows that while Rio Bonito experiences some fluctuation in solar production, the difference between the highest and lowest producing seasons is less dramatic than in locations at higher latitudes. Even during winter, the output remains substantial enough to support reliable solar energy generation.

Optimal Panel Installation

For fixed solar panel installations in Rio Bonito, Rio de Janeiro, the ideal tilt angle is 21 degrees facing North. This specific angle has been calculated to maximize year-round energy production based on the location's position in the Southern Hemisphere. This orientation allows panels to capture optimal sunlight across seasons, balancing between summer and winter sun positions.

Environmental and Weather Considerations

Several factors may affect solar production in Rio Bonito:

• Rainfall patterns during the wet season can temporarily reduce solar output due to cloud cover and direct precipitation on panels
• High humidity levels typical of tropical regions may cause slight reductions in panel efficiency
• Dust and pollen accumulation, particularly during dry periods, can gradually diminish panel performance
• Potential for tropical storms during certain months may occasionally impact system integrity

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended during installation and maintenance:

• Implement regular cleaning schedules, particularly before and after the dry season when dust accumulation is highest
• Install panels with adequate elevation and robust mounting to withstand occasional heavy rainfall and strong winds
• Consider semi-automated cleaning systems for larger installations to maintain efficiency
• Use high-quality panels with anti-reflective coatings that perform better in high humidity conditions
• Incorporate weather monitoring systems to track local conditions that might affect production

Despite these considerations, Rio Bonito remains a favorable location for solar energy production with its year-round solar resource and relatively modest seasonal variations. The consistent tropical sunlight ensures that even during the lower-producing winter months, solar PV systems can continue generating substantial energy.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

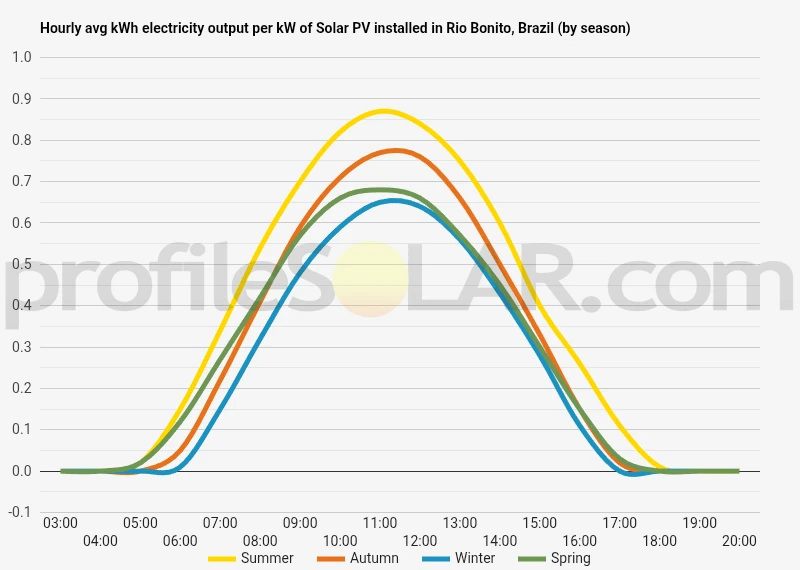

Solar output per kW of installed solar PV by season in Rio Bonito

Seasonal solar PV output for Latitude: -22.7439, Longitude: -42.6192 (Rio Bonito, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Rio Bonito, Brazil

To maximize your solar PV system's energy output in Rio Bonito, Brazil (Lat/Long -22.7439, -42.6192) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rio Bonito, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rio Bonito, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rio Bonito, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rio Bonito, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rio Bonito, Brazil

The region surrounding Rio Bonito, Brazil presents a diverse and complex topographical landscape characteristic of Brazil's Atlantic coastal areas. Situated in the state of Rio de Janeiro, approximately 40 miles (64 kilometers) east of Rio de Janeiro city, Rio Bonito sits within a transitional zone between the coastal plains and the inland highlands. The area features a predominantly hilly terrain with notable variations in elevation. The landscape is characterized by rolling hills, steep slopes, and small valleys that form part of the broader Serra do Mar mountain range system. These hills are generally rounded in profile, having been shaped by centuries of erosion, and many reach elevations between 100 to 500 meters above sea level.

Surrounding Topographical Features

To the east of Rio Bonito lies the coastal lowlands that gradually slope toward the Atlantic Ocean. This coastal zone features flatter terrain with some wetland areas and sandy soils. Moving westward from Rio Bonito, the landscape becomes increasingly mountainous as it transitions into the more dramatic portions of the Serra do Mar range, with some peaks in the broader region exceeding 1,000 meters. Numerous small rivers and streams cut through the landscape, creating narrow valleys between the hills. The Caceribu River and its tributaries form an important watershed in the area, with the river valleys typically containing more fertile alluvial soils compared to the surrounding hillsides. The natural vegetation of the region consists primarily of Atlantic Forest (Mata Atlântica) ecosystems, though much of the original forest has been cleared for agriculture, pasture, and urban development. Remaining forest patches tend to be concentrated on steeper slopes and in protected areas.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several areas near Rio Bonito offer favorable conditions based on topographical considerations: The eastern lowlands between Rio Bonito and the coast present the most suitable terrain for extensive solar PV development. These areas feature gentler slopes and more consistent elevation, reducing construction challenges and costs associated with complex terrain. The relatively flat coastal plains would minimize earthwork requirements and simplify the installation of solar array mounting systems. Some of the broader valley floors within 15-20 kilometers of Rio Bonito also offer potential sites for solar development. These areas typically have moderate slopes and sufficient contiguous land area to support commercial-scale installations. The valleys running roughly east-west would have favorable sun exposure throughout the day. The tops of some of the larger, flatter hills in the region could also be considered for solar development, particularly those with southern exposures that receive consistent sunlight throughout the year. However, these would likely support smaller installations due to space limitations. Areas to avoid include the steeper western slopes of the Serra do Mar, which present significant engineering challenges and higher development costs. Additionally, the numerous river corridors and any remaining protected forest areas would be unsuitable for environmental and regulatory reasons. The region's proximity to major population centers like Rio de Janeiro city and Niterói is advantageous from a transmission infrastructure perspective, potentially reducing the costs associated with connecting new solar generation to the existing electrical grid. Several major highways, including the BR-101, pass near Rio Bonito, which would facilitate construction access and ongoing maintenance for solar facilities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
