Rio Brilhante, Mato Grosso do Sul, Brazil offers excellent conditions for year-round solar energy generation, making it a highly suitable location for solar photovoltaic installations. Located in the tropics at coordinates -21.7745, -54.4566, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods than traditional temperature-based seasons.

Solar Energy Output Performance

The solar energy production data reveals strong performance across all seasons. Summer delivers the highest output at 6.96 kWh per day per kW of installed solar capacity, while spring follows closely with 6.21 kWh per day. Autumn provides moderate production at 5.60 kWh per day, and even winter, the lowest-producing season, still generates a respectable 4.55 kWh per day per kW installed. The ideal times for solar generation at Rio Brilhante are clearly summer and spring, when output exceeds 6 kWh per day per kW installed. However, the location maintains good solar production year-round, with winter output still reaching approximately 65% of summer peak performance. For optimal energy capture, solar panels should be installed at a fixed tilt angle of 20 degrees facing north. This angle has been calculated to maximize total year-round production by accounting for the sun's path throughout the year, Earth's elliptical orbit, and daily solar irradiance patterns specific to this latitude.

Environmental and Weather Factors

Several local factors could potentially impact solar energy production at Rio Brilhante and require consideration during installation planning. The tropical climate brings distinct wet and dry seasons, with the wet season potentially reducing solar output due to increased cloud cover and frequent rainfall. Heavy rains and storms during wet periods can temporarily decrease energy generation and may pose risks to equipment if not properly protected. High humidity levels, common in tropical regions, can lead to faster degradation of solar equipment and electrical components. Moisture infiltration into electrical systems poses risks to both performance and safety over time. The region may experience occasional severe weather events, including strong winds and hailstorms, which could damage solar panels and mounting systems if not adequately designed for local conditions.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize energy production and equipment longevity at this location:

• Install panels with robust waterproof sealing and drainage systems to handle heavy rainfall and prevent moisture damage
• Use corrosion-resistant mounting hardware and electrical components rated for high-humidity tropical environments
• Design mounting systems to withstand local wind loads and potential severe weather events
• Implement regular cleaning schedules to remove dust and debris that accumulate more rapidly in tropical climates
• Install adequate ventilation behind panels to prevent overheating and maintain optimal operating temperatures

Despite these considerations, Rio Brilhante remains an excellent location for solar energy generation. The consistent tropical sunlight and strong year-round production figures far outweigh the manageable environmental challenges. With proper installation techniques and equipment selection, solar installations can achieve excellent long-term performance and reliability at this location.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

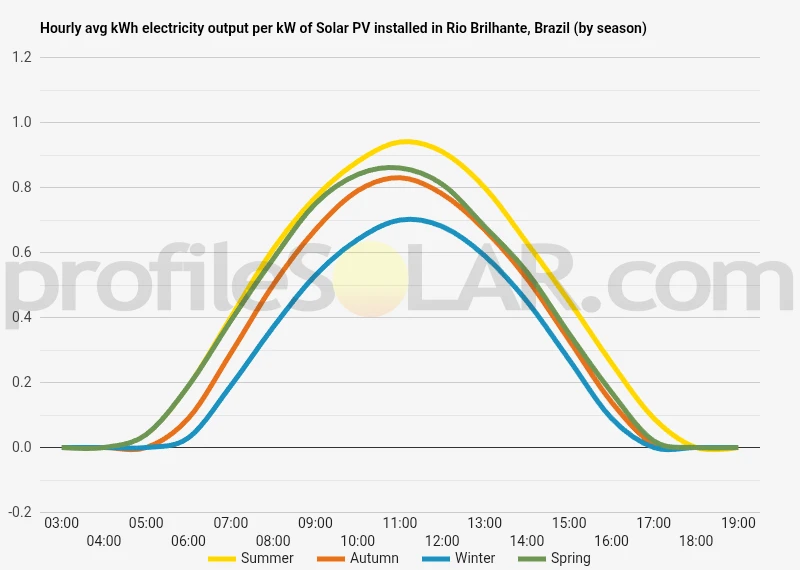

Solar output per kW of installed solar PV by season in Rio Brilhante

Seasonal solar PV output for Latitude: -21.7745, Longitude: -54.4566 (Rio Brilhante, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Rio Brilhante, Brazil

To maximize your solar PV system's energy output in Rio Brilhante, Brazil (Lat/Long -21.7745, -54.4566) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rio Brilhante, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rio Brilhante, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rio Brilhante, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rio Brilhante, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rio Brilhante, Brazil

Topographical Features of Rio Brilhante Region

The area surrounding Rio Brilhante in Mato Grosso do Sul, Brazil, is characterized by gently rolling terrain that forms part of the Brazilian Plateau. This region sits at an elevation of approximately 400 to 500 meters above sea level, creating a landscape that transitions between the Pantanal wetlands to the west and the higher plateau areas to the east. The topography consists primarily of low hills and broad valleys with gentle slopes, making it part of the larger Cerrado savanna ecosystem. The terrain around Rio Brilhante features relatively modest elevation changes, with most variations occurring gradually across the landscape rather than through steep inclines or dramatic ridges. This creates an undulating plain that extends across much of southern Mato Grosso do Sul. The region's geology is dominated by sedimentary rocks and weathered crystalline formations, which have been shaped over millions of years into the current gentle relief patterns. Water features in the area include several small rivers and streams that flow generally westward toward the Paraguay River basin. These waterways have carved shallow valleys into the landscape, but the overall topographical character remains one of subdued relief with broad interfluves between drainage channels.

Optimal Areas for Large-Scale Solar Development

The gently rolling topography around Rio Brilhante presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas would be the broad, relatively flat plateau surfaces that dominate the landscape between the shallow river valleys. These elevated areas typically feature slopes of less than five degrees, which is ideal for solar panel installation and maintenance access. The interfluves - the higher ground between river valleys - represent the prime locations for solar development in this region. These areas offer several advantages including stable ground conditions, minimal flooding risk, and the ability to construct large contiguous solar arrays without significant grading requirements. The gentle nature of the terrain means that earth-moving costs would be relatively low compared to more mountainous regions. Areas on the eastern and southeastern sides of Rio Brilhante would be particularly well-suited for solar installations due to their position on slightly elevated terrain that provides good drainage while maintaining the gentle slopes necessary for efficient panel orientation. The broad valleys, while generally flat, would be less suitable due to potential seasonal water accumulation and the need to preserve agricultural land and riparian corridors. The region's stable geological foundation, consisting largely of consolidated sedimentary rocks beneath a layer of weathered soil, provides excellent support for solar infrastructure. This geological stability, combined with the favorable topography, creates ideal conditions for large-scale renewable energy development across thousands of hectares of suitable terrain.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
