Rio Grande da Serra, Brazil, located in the Southern Sub Tropics at coordinates -23.7351, -46.3735, presents a reasonably favorable location for year-round solar PV energy generation, though with notable seasonal variations in output.

Seasonal Solar Performance

The location demonstrates strong summer performance with solar panels generating 6.06 kWh per day per kW of installed capacity. Spring follows as the second-best season at 5.33 kWh/day per kW, while autumn produces 5.06 kWh/day per kW. Winter shows the lowest output at 4.16 kWh/day per kW, representing about 31% less generation compared to peak summer months. For optimal year-round energy production, fixed solar panels should be tilted at 22 degrees facing North. This angle maximizes total annual solar output by accounting for the sun's changing position throughout the year and Earth's elliptical orbit around the sun.

Best Times for Solar Generation

Summer months offer the most productive period for solar energy generation, followed closely by spring. The combination of summer and spring represents the peak solar season for this location, providing significantly higher energy yields than the autumn and winter months.

Local Factors Affecting Solar Production

Several environmental and weather factors in this Southern Sub Tropical location can impact solar panel performance:

• High humidity levels typical of subtropical climates can reduce panel efficiency and create moisture-related issues
• Heavy rainfall during wet seasons may cause temporary power reductions and increase maintenance needs
• Tropical storms and strong winds pose risks to panel mounting systems
• Dense vegetation growth in the humid climate can quickly create shading problems

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove beneficial. Proper drainage systems around panel installations prevent water accumulation that could damage electrical components. Using corrosion-resistant mounting hardware and electrical components helps combat the effects of high humidity and moisture. Installing panels with adequate spacing allows for better air circulation, reducing heat buildup and moisture retention. Regular vegetation management around the solar installation prevents shading issues that can significantly reduce output. Storm-resistant mounting systems designed for high wind loads protect the investment during severe weather events. Choosing panels with anti-reflective coatings and self-cleaning properties helps maintain efficiency during periods of high humidity and frequent rainfall. Additionally, implementing proper grounding and surge protection systems safeguards against electrical issues common in areas prone to thunderstorms.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

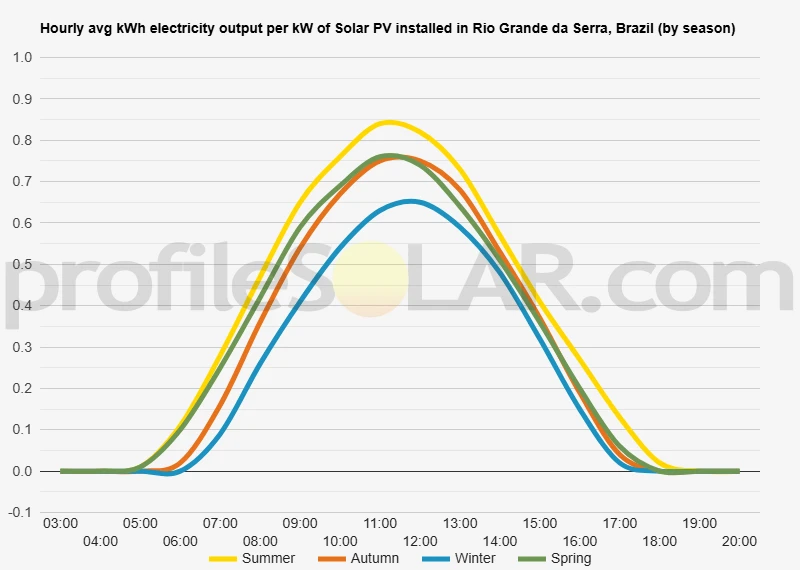

Solar output per kW of installed solar PV by season in Rio Grande Da Serra

Seasonal solar PV output for Latitude: -23.7351, Longitude: -46.3735 (Rio Grande Da Serra, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Rio Grande Da Serra, Brazil

To maximize your solar PV system's energy output in Rio Grande Da Serra, Brazil (Lat/Long -23.7351, -46.3735) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rio Grande Da Serra, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rio Grande Da Serra, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rio Grande Da Serra, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rio Grande Da Serra, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rio Grande Da Serra, Brazil

Topographical Features of Rio Grande da Serra

Rio Grande da Serra sits within the complex mountainous terrain of the Serra do Mar coastal range in São Paulo state, Brazil. This region is characterized by steep hills, deep valleys, and dramatic elevation changes that create a challenging topographical landscape. The municipality is positioned on the slopes and ridges of these ancient mountains, with elevations ranging significantly across relatively short distances.

The terrain around Rio Grande da Serra features a mix of steep inclines, rolling hills, and narrow valleys carved by small streams and tributaries. Dense Atlantic Forest (Mata Atlântica) covers much of the natural landscape, creating a lush green canopy across the mountainous terrain. The topography is typical of the Serra do Mar region, with sharp ridgelines, deep ravines, and irregular terrain that has been shaped by millions of years of geological activity and erosion.

The area experiences significant variations in elevation within short distances, making the landscape both scenic and challenging for development. Rock outcroppings are common throughout the region, and the underlying geology consists primarily of crystalline rocks from the Brazilian Shield. Water drainage follows the natural contours of the land, flowing toward the Atlantic Ocean through various river systems.

Optimal Areas for Large-Scale Solar Development

Given the mountainous nature of Rio Grande da Serra, finding suitable locations for large-scale solar photovoltaic installations requires careful consideration of topographical constraints. The most promising areas would be the relatively flatter ridge tops and plateau areas that exist between the steeper valley slopes. These elevated positions often provide better exposure to sunlight while offering more stable ground conditions for mounting systems.

Areas to the northwest and west of Rio Grande da Serra, moving toward the interior of São Paulo state, present more favorable topography for extensive solar installations. These regions transition from the steep coastal mountains to gentler rolling terrain and eventually to flatter agricultural areas. The municipalities of Suzano, Mogi das Cruzes, and areas further inland toward Salesópolis offer increasingly suitable terrain as the dramatic elevation changes of the Serra do Mar give way to more manageable slopes.

South of Rio Grande da Serra, the terrain remains challenging due to the continued presence of steep valleys and ridges. However, some elevated plateau areas near Santo André and São Bernardo do Campo could potentially accommodate smaller-scale solar installations, though these areas are more densely developed and may have limited available land.

The most practical approach for large-scale solar development in this region would likely involve identifying cleared or previously developed plateau areas, abandoned mining sites, or agricultural land on gentler slopes. Areas that have already been deforested or developed would be preferable to avoid impacting the valuable Atlantic Forest ecosystem that covers much of the natural terrain.

Transportation access is another crucial factor, as the mountainous terrain can make construction and maintenance challenging. Areas with existing road infrastructure or those accessible via the major highways that traverse the region would be most practical for large-scale solar development. The proximity to São Paulo's metropolitan area also provides advantages in terms of grid connection and energy demand, making even moderately challenging sites potentially viable for development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
