Solar Energy Potential in Rio Negro, Paraná, Brazil

Rio Negro, Paraná, Brazil, nestled in the Southern Sub Tropics at latitude -26.09 and longitude -49.7158, offers reasonable conditions for solar photovoltaic (PV) energy generation throughout the year, though with notable seasonal variations. The location experiences its peak solar production during summer months, generating approximately 5.93 kWh per day for each kilowatt of installed solar capacity. This production decreases to 4.41 kWh/day during autumn and drops further to 3.37 kWh/day in winter, which represents the annual low point. Spring brings a recovery in solar generation to 4.59 kWh/day. For those considering solar installation in Rio Negro, Paraná, it's worth noting that the optimal fixed panel tilt angle for maximizing year-round energy production is 23 degrees facing North. This specific angle has been calculated to capture the most solar energy across all seasons based on the location's position relative to the sun's path.

Seasonal Considerations

The significant difference between summer and winter production (nearly 76% more energy generated in summer than winter) suggests that Rio Negro experiences moderate seasonal variability. This means residents and businesses will see their solar systems performing at their best during the summer months of December through February, while the June-August winter period will yield notably less energy. Spring and autumn serve as transitional periods with respectable energy production levels, making them suitable times for maintenance activities if needed, as the system isn't operating at either extreme of its production range.

Potential Challenges and Solutions

Being in a subtropical region, Rio Negro may face several environmental factors that could impact solar production. Heavy rainfall and humidity common to the region can reduce panel efficiency through temporary shading and dirt accumulation. Installing panels with adequate drainage systems and scheduling regular cleaning, especially after rainy periods, can help maintain optimal performance. The region also experiences occasional severe storms which could potentially damage installations. Using high-quality mounting systems designed to withstand strong winds and hail can provide protection against these weather events. Morning fog and mist, common in river-adjacent areas like Rio Negro, Paraná, might delay peak production hours. This factor should be considered when forecasting daily energy generation patterns, though it doesn't significantly impact overall production figures. Despite these challenges, with proper installation techniques and maintenance protocols, solar PV systems in Rio Negro can provide reliable renewable energy, with an annual average of approximately 4.58 kWh per day for each kilowatt installed—making it a viable location for solar energy investment.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

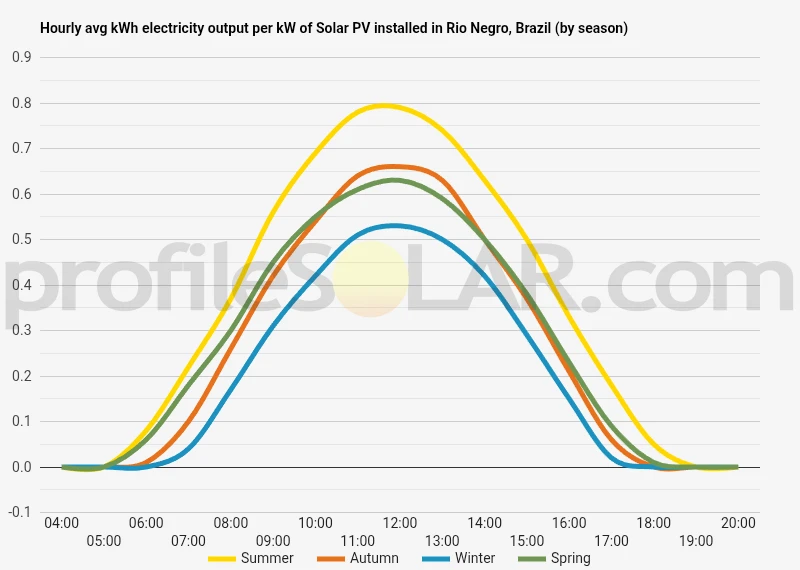

Solar output per kW of installed solar PV by season in Rio Negro

Seasonal solar PV output for Latitude: -26.09, Longitude: -49.7158 (Rio Negro, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° North in Rio Negro, Brazil

To maximize your solar PV system's energy output in Rio Negro, Brazil (Lat/Long -26.09, -49.7158) throughout the year, you should tilt your panels at an angle of 23° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rio Negro, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rio Negro, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	42° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rio Negro, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rio Negro, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rio Negro, Brazil

The region around Rio Negro, Brazil, situated at coordinates -26.09 latitude and -49.7158 longitude, presents a diverse topographical landscape characteristic of southern Brazil's transition between the coastal areas and the inland plateau. Rio Negro sits in the state of Paraná, near the border with Santa Catarina state, and its terrain features a mix of rolling hills, river valleys, and moderate elevation changes typical of the southern Brazilian highlands. The area lies within what is known as the Southern Plateau (Planalto Meridional), with elevations generally ranging between 700-900 meters above sea level. This plateau formation is part of the larger Brazilian Highlands that dominate much of the country's southern and southeastern regions. The terrain around Rio Negro is moderately undulating rather than featuring extreme elevation changes, creating a landscape of gentle hills interspersed with river valleys.

River Systems and Valleys

The namesake Rio Negro (Black River) flows through the region, creating distinctive valley formations. This river and its tributaries have carved natural depressions in the landscape over geological time. These waterways belong to the larger Iguaçu River basin, an important hydrological system in southern Brazil. The river valleys typically have fertile soils but can be subject to occasional flooding during heavy rainfall periods.

Vegetation and Land Cover

The natural vegetation in this region historically consisted of mixed Araucaria forests (also known as Brazilian pine forests), which are characteristic of higher elevation areas in southern Brazil. However, significant portions of the original forest cover have been converted to agricultural land and pasture over the decades. The remaining forest patches are important ecological reserves that influence the local topography by stabilizing soil and preventing erosion on steeper slopes.

Climate Influence on Topography

The region experiences a humid subtropical climate, which contributes to the weathering patterns visible in the landscape. Rainfall is distributed throughout the year, contributing to the lush vegetation and influencing the erosion patterns that have shaped the rolling hills over time. The moderate climate has generally led to rounded hill formations rather than the sharp features found in more arid regions.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, several topographical factors must be considered in the Rio Negro region. The most suitable areas would be: The gently sloping hillsides with southern to northern exposures provide ideal conditions for solar PV arrays. These areas benefit from reduced shading issues while still offering stable ground for installation. Particularly promising are the slightly elevated plateaus that extend to the west and northwest of Rio Negro, where the terrain flattens somewhat and offers expansive areas with consistent solar exposure. Agricultural clearings on the plateau areas represent another opportunity for solar development. These locations already have reduced tree cover and often feature the necessary infrastructure access for construction and maintenance. The slightly higher elevation of these plateau regions also typically experiences less fog and mist compared to the river valleys. Areas with stable soil conditions away from the flood-prone river valleys are essential for long-term installation success. The moderately elevated regions approximately 5-15 kilometers from the main river courses offer this stability while maintaining relatively flat topography that minimizes the need for extensive grading during construction. The terrain approximately 10-20 kilometers west of Rio Negro city presents perhaps the most promising combination of factors: relatively flat plateau areas, good road access, stable soil conditions, and minimal natural barriers to solar radiation. These areas balance the need for suitable construction conditions with optimal solar exposure potential. It's worth noting that while the hillier sections might seem challenging for solar development, modern mounting systems can adapt to moderate slopes, and in some cases, south-facing slopes in the Southern Hemisphere can be advantageous for capturing maximum solar radiation throughout the day.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
