Rio Novo do Sul, Brazil represents a good location for year-round solar energy generation, with its tropical climate providing consistent sunlight throughout most of the year. Located at coordinates -20.7839, -40.9357, this area benefits from the typical tropical pattern where seasons are characterized more by wet and dry periods rather than significant temperature variations.

Solar Energy Production Potential

The solar energy output at Rio Novo do Sul shows solid performance across all seasons, though with notable seasonal variation. Summer delivers the highest production at 6.23kWh per day per kW of installed solar capacity, making it the peak generation period. Spring follows with 5.03kWh/day per kW, while autumn produces 5.34kWh/day per kW. Winter shows the lowest output at 4.44kWh/day per kW, though this still represents reasonable production levels. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 19 degrees facing north. This angle maximizes total annual solar output by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Rio Novo do Sul. The tropical climate brings distinct wet and dry seasons, with the wet season likely coinciding with reduced solar output during certain months. Heavy rainfall and increased cloud cover during wet periods can significantly reduce solar irradiance reaching the panels. High humidity levels, common in tropical coastal areas, can lead to accelerated corrosion of solar equipment and electrical components. The proximity to the Atlantic coast may also introduce salt air, which can cause additional corrosion issues over time.

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Use corrosion-resistant materials and coatings specifically designed for tropical marine environments
• Install proper drainage systems to handle heavy rainfall and prevent water accumulation
• Ensure adequate ventilation around panels to reduce humidity-related issues
• Implement regular cleaning schedules to remove salt deposits and debris
• Use high-quality sealing materials to protect electrical connections from moisture

Regular maintenance becomes particularly important in this environment, with more frequent inspections recommended during and after the wet season to address any weather-related damage or performance issues promptly.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

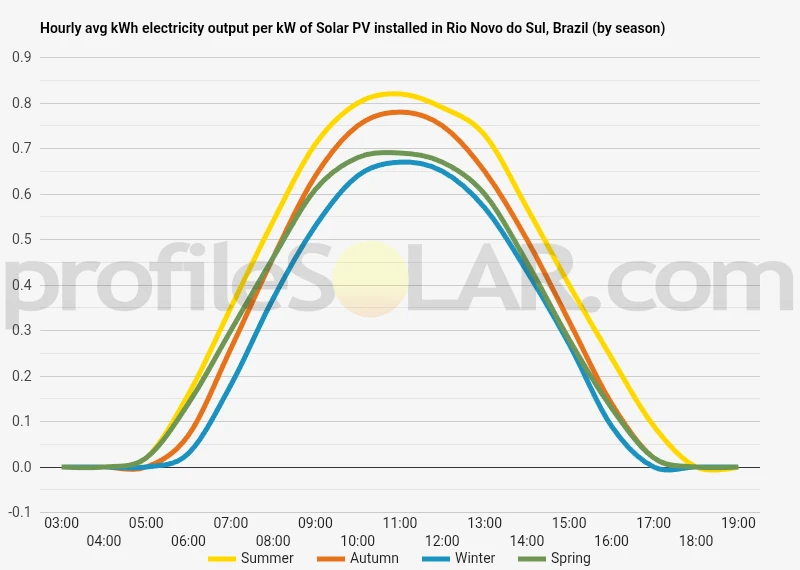

Solar output per kW of installed solar PV by season in Rio Novo Do Sul

Seasonal solar PV output for Latitude: -20.7839, Longitude: -40.9357 (Rio Novo Do Sul, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Rio Novo Do Sul, Brazil

To maximize your solar PV system's energy output in Rio Novo Do Sul, Brazil (Lat/Long -20.7839, -40.9357) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rio Novo Do Sul, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rio Novo Do Sul, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rio Novo Do Sul, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rio Novo Do Sul, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rio Novo Do Sul, Brazil

Topographical Features of Rio Novo do Sul

Rio Novo do Sul sits in the southern coastal region of Espírito Santo state, where the Atlantic Coastal Plain meets the rolling hills of the Brazilian Highlands. The municipality occupies a transitional landscape characterized by relatively gentle terrain that gradually rises from sea level to modest elevations inland. The topography consists primarily of undulating hills and shallow valleys, with elevations typically ranging from near sea level along the coast to approximately 200-300 meters above sea level in the interior areas. The region features a mix of coastal lowlands and inland plateaus, creating a varied but generally manageable terrain for development projects. The landscape is punctuated by numerous small rivers and streams that flow eastward toward the Atlantic Ocean, creating shallow drainage patterns throughout the area. These waterways have carved gentle valleys between the low hills, resulting in a terrain that alternates between modest ridgelines and broad, open valleys. The coastal influence extends several kilometers inland, where the topography remains relatively flat before transitioning into the more pronounced hill country that characterizes much of Espírito Santo's interior. The underlying geology consists primarily of crystalline rocks typical of the Brazilian Shield, overlain by sedimentary deposits in the coastal areas.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Rio Novo do Sul would be the elevated plateau areas located inland from the immediate coastal zone. These areas offer several topographical advantages, including relatively flat to gently sloping terrain that minimizes grading requirements and construction costs while providing excellent drainage characteristics. The inland plateaus, particularly those situated 5-15 kilometers from the coast, present ideal conditions for solar development. These elevated areas benefit from reduced coastal moisture and fog effects while maintaining accessible terrain for equipment installation and maintenance. The gentle slopes found on these plateaus allow for optimal panel orientation and spacing while facilitating natural drainage during the rainy season. Areas along the broader valley floors also present excellent opportunities for solar installations, particularly where the terrain opens into wider, flatter expanses. These locations often provide large contiguous areas suitable for utility-scale projects while maintaining reasonable access to existing infrastructure and transmission networks. The transitional zone between the coastal lowlands and the inland hills offers particularly attractive sites, where developers can take advantage of elevated positions without encountering the steeper slopes and more challenging terrain found in the higher elevations further inland. These areas typically feature well-drained soils and stable geological conditions favorable for large-scale construction projects. When evaluating potential sites, the broad valley systems that extend inland from the coast provide excellent opportunities for linear solar installations that can follow the natural contours of the landscape. These areas often benefit from reduced wind exposure while maintaining the open sky access essential for solar energy generation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
