Rio Real, Bahia, Brazil represents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropical zone at coordinates -11.53, -37.9039, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than the traditional temperature-based seasons found in temperate climates.

Solar Energy Output Performance

The solar energy production data for Rio Real demonstrates excellent year-round performance. Spring delivers the highest output at 6.78 kWh per day per kW of installed solar capacity, closely followed by summer at 6.74 kWh per day. Even during the lowest production period in winter, the location still generates a respectable 5.11 kWh per day per kW, while autumn produces 6.00 kWh per day per kW. The peak generation periods occur during spring and summer months, making these the ideal times for maximum solar energy harvest. However, the relatively modest seasonal variation means that solar installations at this location can provide reliable energy production throughout the entire year.

Optimal Panel Installation

For fixed panel installations at Rio Real, Bahia, the ideal tilt angle to maximize total year-round solar production is 10 degrees facing North. This relatively shallow angle reflects the location's proximity to the equator, where the sun maintains a high position in the sky throughout the year.

Environmental and Weather Challenges

Several environmental factors could potentially impact solar production at Rio Real and require consideration during installation planning:

• Tropical rainfall and humidity: The wet season brings heavy precipitation and high humidity levels that can reduce panel efficiency and create maintenance challenges
• Salt air exposure: Being located near the Atlantic coast, installations may face corrosion issues from salt-laden air
• Dust and debris accumulation: Dry season conditions can lead to dust buildup on panel surfaces
• Tropical storms: The region may experience severe weather events that could damage installations

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several preventative measures should be implemented: Installing panels with anti-reflective coatings and hydrophobic surfaces helps minimize the impact of rain and humidity while reducing cleaning requirements. Using marine-grade aluminum frames and stainless steel mounting hardware provides enhanced corrosion resistance against salt air exposure. Regular cleaning schedules become particularly important during dry periods to prevent dust accumulation from reducing panel efficiency. Automated cleaning systems or easily accessible manual cleaning arrangements should be incorporated into the installation design. Robust mounting systems designed to withstand high winds and potential storm conditions are essential. This includes using reinforced mounting structures and ensuring proper drainage around installations to prevent water damage during heavy rainfall periods. Adequate ventilation spacing behind panels helps combat the efficiency-reducing effects of high temperatures and humidity, while protective measures such as surge protectors and weatherproof electrical connections safeguard against tropical storm damage.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

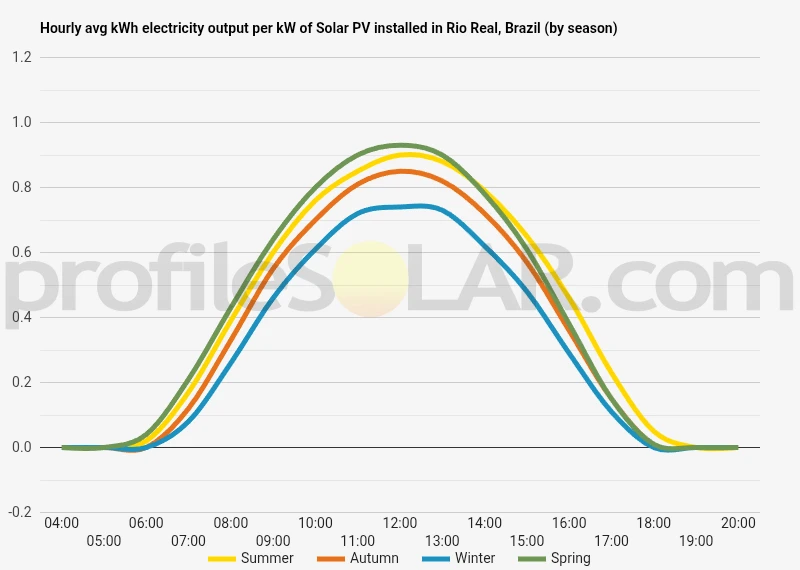

Solar output per kW of installed solar PV by season in Rio Real

Seasonal solar PV output for Latitude: -11.53, Longitude: -37.9039 (Rio Real, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° North in Rio Real, Brazil

To maximize your solar PV system's energy output in Rio Real, Brazil (Lat/Long -11.53, -37.9039) throughout the year, you should tilt your panels at an angle of 10° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rio Real, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rio Real, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° South in Summer	17° North in Autumn	27° North in Winter	6° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rio Real, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rio Real, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rio Real, Brazil

Topography and Terrain Around Rio Real

Rio Real is situated in the coastal region of Bahia state in northeastern Brazil, positioned inland from the Atlantic Ocean. The area is characterized by gently rolling hills and low-lying plains that are typical of the coastal tablelands known as the "Tabuleiros Costeiros." These elevated plateaus rise gradually from sea level to modest heights of 100 to 200 meters above sea level, creating a landscape that undulates softly rather than presenting dramatic elevation changes.

The terrain features broad, open spaces with relatively gentle slopes that extend across much of the region. The topography is punctuated by shallow valleys carved by seasonal streams and small rivers that flow toward the coast. These waterways create natural drainage patterns through the landscape, though they rarely form deep gorges or steep-sided valleys that would significantly interrupt the generally flat to moderately rolling character of the area.

The soil composition consists primarily of sedimentary formations with sandy and clay-rich layers that have been shaped by millions of years of coastal processes. This geological foundation contributes to the stable, well-drained nature of the land, with minimal risk of significant erosion or ground instability. The vegetation in the region transitions between coastal Atlantic Forest remnants and areas of Caatinga scrubland, depending on local moisture conditions and soil characteristics.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the elevated plateau areas that stretch inland from Rio Real toward the west and southwest. These tablelands offer several key advantages for solar development, including their relatively flat topography that minimizes grading requirements and reduces installation costs. The stable geological foundation of these areas provides excellent support for mounting systems and infrastructure.

The open grassland and scrubland areas present the best opportunities for large solar farms, as they typically have minimal tree coverage and fewer environmental constraints compared to forested regions. These areas often feature gentle south-facing slopes that can be advantageous for optimizing panel orientation and minimizing shading between panel rows.

Areas located at moderate elevations, typically between 80 and 150 meters above sea level, would be particularly well-suited for development. These locations benefit from good air circulation that helps maintain optimal operating temperatures for photovoltaic panels while remaining accessible for construction and maintenance activities. The natural drainage patterns in these elevated areas also help prevent water accumulation that could impact equipment performance.

The proximity to existing transportation infrastructure, including roads that connect Rio Real to larger regional centers, makes certain areas more practical for large-scale development. Sites within reasonable distance of electrical transmission lines would also be preferred to minimize the cost and complexity of grid connection for utility-scale solar projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
