Rio Tinto, Paraíba, Brazil represents an excellent location for year-round solar energy generation, with its tropical climate providing consistent sunlight throughout most of the year where seasons are characterized more by wet and dry periods rather than traditional temperature variations.

Solar Energy Production Performance

The solar energy output at this location shows strong performance across all seasons, with spring delivering the highest production at 7.14 kWh per day per kW of installed solar capacity. Summer follows closely with 6.36 kWh/day, while autumn maintains solid output at 5.95 kWh/day. Even during the lowest-producing season of winter, the location still generates a respectable 5.41 kWh/day per kW installed. For optimal year-round energy production, solar panels should be installed at a fixed tilt angle of 6 degrees facing north. This relatively shallow angle is calculated to maximize total annual solar output by accounting for the location's proximity to the equator and varying sun angles throughout the year.

Optimal Energy Generation Periods

Spring emerges as the ideal time for solar energy generation at this location, producing approximately 32% more energy than the winter months. The combination of spring and summer provides the peak production period, offering nearly consistent high-output performance for roughly half the year.

Environmental and Weather Challenges

Several environmental factors could potentially impact solar production efficiency at Rio Tinto:

• Tropical rainfall and humidity: The wet season brings heavy precipitation and high humidity levels that can reduce panel efficiency and create maintenance challenges
• Dust and particulate accumulation: Dry periods may lead to dust buildup on solar panels, reducing their ability to capture sunlight effectively
• Vegetation growth: The tropical climate promotes rapid plant growth that could create shading issues if not properly managed

Preventative Installation Measures

To maximize energy production despite these challenges, several preventative measures should be implemented during installation. Installing panels with adequate drainage systems and slight tilting helps rainwater naturally clean the surfaces while preventing water accumulation. Regular maintenance schedules should include panel cleaning, particularly during dry seasons when dust accumulation is highest. Proper site preparation involves clearing vegetation and establishing buffer zones around solar installations to prevent future shading issues. Additionally, selecting panels and mounting systems designed for high-humidity tropical environments ensures better long-term performance and durability. The installation should also incorporate adequate ventilation beneath panels to reduce heat buildup, which can decrease efficiency in the consistently warm tropical climate. Despite these considerations, the location's strong and consistent solar output makes it highly suitable for solar energy generation with proper planning and maintenance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

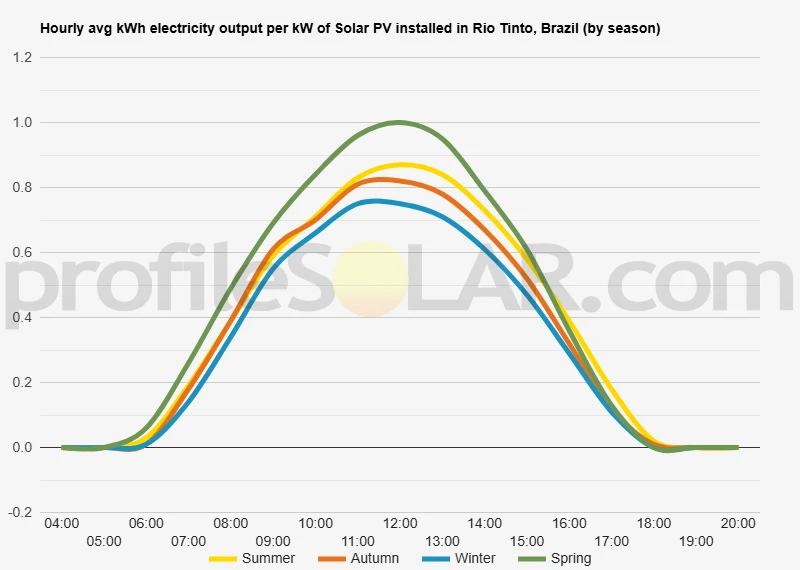

Solar output per kW of installed solar PV by season in Rio Tinto

Seasonal solar PV output for Latitude: -6.7851, Longitude: -35.0151 (Rio Tinto, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 6° North in Rio Tinto, Brazil

To maximize your solar PV system's energy output in Rio Tinto, Brazil (Lat/Long -6.7851, -35.0151) throughout the year, you should tilt your panels at an angle of 6° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rio Tinto, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rio Tinto, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	13° North in Autumn	23° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rio Tinto, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rio Tinto, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rio Tinto, Brazil

Topographical Features Around Rio Tinto, Brazil

Rio Tinto is located in the northeastern state of Paraíba, Brazil, positioned within the Caatinga biome that characterizes much of the interior Northeast region. The topography around this area is predominantly characterized by gently rolling hills and relatively flat plains, typical of the Borborema Plateau's eastern slopes. Elevations in the immediate vicinity generally range from 200 to 400 meters above sea level, creating a landscape that undulates moderately without extreme variations in height.

The terrain consists primarily of crystalline basement rock formations covered by thin soils and sparse vegetation adapted to the semi-arid climate. Small valleys and depressions dot the landscape, often following seasonal watercourses that flow intermittently during the rainy season. These drainage patterns create a network of shallow valleys separated by low ridges and gentle slopes that rarely exceed gradients of 10-15 degrees.

The region's geological foundation is composed mainly of Precambrian metamorphic and igneous rocks, which have been weathered over millions of years to create the current relatively stable topographical features. This geological stability, combined with the moderate relief, results in minimal erosion risks and good ground conditions for infrastructure development.

Optimal Areas for Large-Scale Solar Development

The most suitable areas for large-scale solar photovoltaic installations around Rio Tinto would be the extensive flat to gently sloping plains that stretch eastward and southward from the town center. These areas offer several key advantages including minimal grading requirements, reduced construction costs, and optimal panel positioning capabilities. The relatively uniform terrain allows for efficient installation of tracking systems and minimizes shading between panel arrays.

The elevated plateaus and mesa-like formations to the north and west of Rio Tinto present excellent opportunities for solar development due to their stable foundations and minimal vegetation coverage. These higher elevation areas benefit from consistent wind patterns that help cool solar panels naturally, improving their operational efficiency. The sparse Caatinga vegetation in these zones requires minimal clearing, reducing environmental impact and preparation costs.

Areas with south-facing gentle slopes, particularly those with gradients between 2-8 degrees, would be especially advantageous for fixed-tilt solar installations. These natural inclinations can reduce the need for extensive racking systems while optimizing solar collection angles. The numerous cleared or lightly vegetated areas that have been previously used for agriculture or grazing provide ready-made sites with existing access routes.

The flat valley floors and broader plain areas offer the greatest potential for utility-scale developments due to their expansive, uninterrupted spaces. These locations typically have good accessibility for construction equipment and maintenance vehicles, while their level terrain simplifies both installation and ongoing operations. The stable soil conditions and low risk of flooding in most of these areas make them particularly attractive for long-term solar investments.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
