Solar Energy Potential in Rio das Pedras, Brazil

Rio das Pedras, Brazil, located at latitude -22.1828 and longitude -47.0158, offers a favorable location for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with seasons characterized more by wet and dry periods than dramatic temperature changes.

Seasonal Solar Production

The solar energy output varies throughout the year, with distinct patterns across the four seasons:

• Summer: 6.78 kWh per day per kW installed (highest production)
• Autumn: 5.55 kWh per day per kW installed
• Winter: 4.80 kWh per day per kW installed (lowest production)
• Spring: 6.22 kWh per day per kW installed

This seasonal variation shows that while winter months produce approximately 30% less energy than peak summer months, the location still maintains respectable output year-round, making it a viable site for solar PV installations.

Optimal Panel Installation

For fixed solar panel installations at this location, the ideal tilt angle to maximize year-round energy production is 20 degrees facing North. This angle optimizes the capture of solar radiation throughout the year, accounting for the site's position in the Southern Hemisphere and the Earth's elliptical orbit.

Environmental and Weather Considerations

Several factors may affect solar production in Rio das Pedras. The region's wet season can bring extended periods of cloud cover and rain, temporarily reducing solar output. Additionally, dust accumulation during dry periods can diminish panel efficiency if not regularly maintained. High humidity levels in this tropical location may accelerate degradation of electrical components if proper waterproofing measures aren't implemented. During summer months, elevated temperatures can slightly reduce panel efficiency as solar panels typically perform best at moderate temperatures.

Preventative Measures

To maximize energy production despite these challenges, several preventative measures are recommended: Installing panels with the optimal 20-degree northward tilt not only maximizes annual production but also promotes natural cleaning during rainfall. Implementing regular cleaning schedules, especially during dry periods, helps maintain optimal performance. Using high-quality, humidity-resistant components and proper enclosures for electrical equipment protects against moisture damage. Ensuring adequate ventilation behind panels can help mitigate efficiency losses during hot weather. Lastly, incorporating weather monitoring systems can help predict periods of lower production, allowing for better energy management planning throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

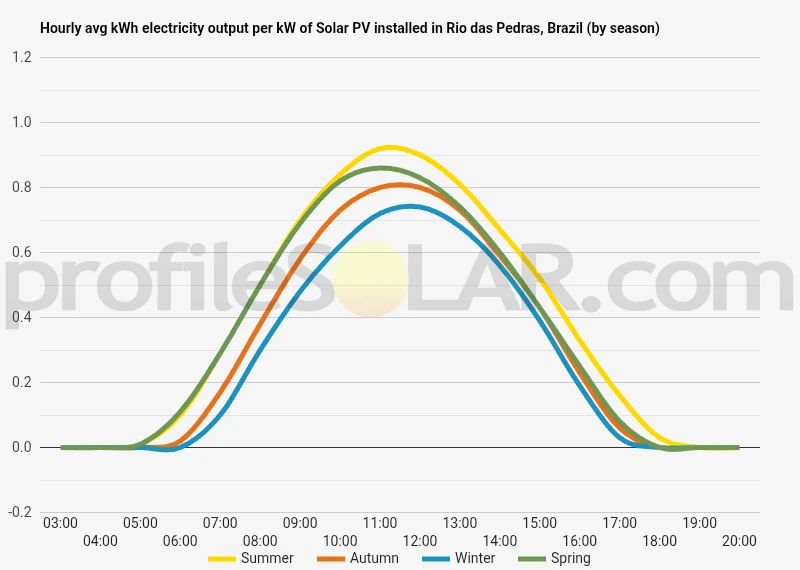

Solar output per kW of installed solar PV by season in Rio Das Pedras

Seasonal solar PV output for Latitude: -22.1828, Longitude: -47.0158 (Rio Das Pedras, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Rio Das Pedras, Brazil

To maximize your solar PV system's energy output in Rio Das Pedras, Brazil (Lat/Long -22.1828, -47.0158) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rio Das Pedras, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rio Das Pedras, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rio Das Pedras, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rio Das Pedras, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rio Das Pedras, Brazil

The topography around Rio das Pedras, Brazil presents a varied landscape characterized by gently rolling hills, shallow valleys, and modest elevation changes typical of the interior São Paulo state region. Located in the eastern portion of the state, this area sits within the Paraná River Basin, one of Brazil's major hydrographic regions. The terrain generally consists of undulating plains with elevations ranging between approximately 500 to 700 meters above sea level. The landscape has been shaped by centuries of erosion, creating a series of low hills with gradual slopes rather than steep mountains. This topographical profile means the region avoids extreme elevation changes that might otherwise complicate large-scale development projects.

Hydrography and Natural Features

As suggested by its name ("River of Stones"), Rio das Pedras features several water courses flowing through the area. The region belongs to the larger Piracicaba River watershed system, with numerous smaller streams and tributaries creating natural divisions in the landscape. These waterways have carved shallow valleys throughout the territory, creating natural drainage systems. The native vegetation historically consisted of transitional zones between Atlantic Forest and Cerrado (Brazilian savanna) biomes, though much has been converted to agricultural use over decades of development. The remaining natural vegetation tends to follow watercourses in riparian forests or exists in protected reserves.

Current Land Use

The surrounding region has experienced significant transformation through agricultural activities, with substantial portions of land devoted to sugar cane cultivation, cattle ranching, and other agricultural enterprises. This agricultural development has created large open spaces with minimal tree cover in many areas, resulting in relatively flat, cleared land parcels throughout the region. Urban development is moderate, with Rio das Pedras itself representing a small to medium-sized municipality surrounded by rural landscapes. The broader region includes other similarly sized towns and cities, with Piracicaba being one of the larger urban centers in relative proximity.

Areas Suitable for Solar PV Development

Several factors make certain areas around Rio das Pedras particularly well-suited for large-scale solar photovoltaic installations: The gently sloping hillsides facing northward (in the southern hemisphere, north-facing slopes receive more consistent solar radiation) represent prime locations for solar development. These areas benefit from favorable sun angles throughout the year while avoiding the potential flooding concerns of lowland areas. Former agricultural lands that have been degraded or are less productive present excellent opportunities for solar development. These areas typically offer large, contiguous parcels with minimal vegetation clearance requirements and existing access roads. The elevated plateaus between stream valleys provide flat terrain ideal for large-scale installations, minimizing the earthwork necessary for creating level surfaces for solar arrays. These higher elevation areas also tend to experience less morning fog than valley bottoms, maximizing potential solar exposure. Areas situated away from the riparian zones (protective buffers around waterways required by Brazilian environmental regulations) offer fewer regulatory hurdles for development while still providing suitable terrain for solar installations. The regions southwest of Rio das Pedras, extending toward Piracicaba, feature particularly favorable topography with extensive areas of gently rolling terrain and good existing infrastructure connections, making them especially promising for large-scale solar development. The combination of moderate elevation, predominantly clear skies, and extensive areas of suitable terrain make the broader Rio das Pedras region naturally conducive to solar energy development, with minimal topographical impediments to large-scale installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
