Rio do Pires, Brazil represents an excellent location for year-round solar energy generation. This tropical location benefits from consistent sunlight throughout the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Potential

The solar energy output data for Rio do Pires demonstrates remarkably consistent performance across all seasons. Spring emerges as the most productive season with 6.88 kWh per day per kW of installed solar capacity, followed closely by summer at 6.55 kWh/day. Autumn maintains strong performance at 6.49 kWh/day, while winter shows the lowest but still substantial output of 6.11 kWh/day. This seasonal variation of less than 13% between the highest and lowest performing seasons indicates exceptional stability for solar energy generation. The relatively small difference between seasons makes Rio do Pires highly suitable for consistent year-round solar power production. For optimal performance, solar panels should be installed at a fixed tilt angle of 13 degrees facing north. This angle has been calculated to maximize total annual solar energy production by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Rio do Pires, though the strong seasonal output figures suggest these challenges are manageable with proper planning. Wet Season Impacts: The tropical climate brings distinct wet and dry seasons. During wet periods, increased cloud cover and frequent rainfall can temporarily reduce solar panel efficiency. Heavy rains, while beneficial for cleaning panels, may be accompanied by extended periods of overcast skies that diminish solar irradiance. Dust and Particulate Accumulation: During dry seasons, dust accumulation on solar panels can significantly reduce their efficiency. The semi-arid characteristics of parts of Bahia state can contribute to dust buildup, particularly during periods of low rainfall. High Humidity Effects: Tropical humidity levels can affect electrical components and may contribute to faster degradation of certain solar panel materials over time.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate spacing and ventilation to prevent overheating and allow air circulation
• Use high-quality, humidity-resistant electrical components and proper sealing systems
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Consider automated cleaning systems for larger installations to maintain consistent performance
• Install monitoring systems to track performance and identify when cleaning or maintenance is needed

Seasonal Maintenance Planning: Scheduling intensive maintenance during the transition between wet and dry seasons can help ensure panels are clean and functioning optimally during peak production periods. The spring season's superior performance (6.88 kWh/day) makes it particularly important to ensure panels are in excellent condition during this time. Despite these potential challenges, the consistently high solar output figures across all seasons indicate that Rio do Pires offers excellent conditions for solar energy generation with proper installation and maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

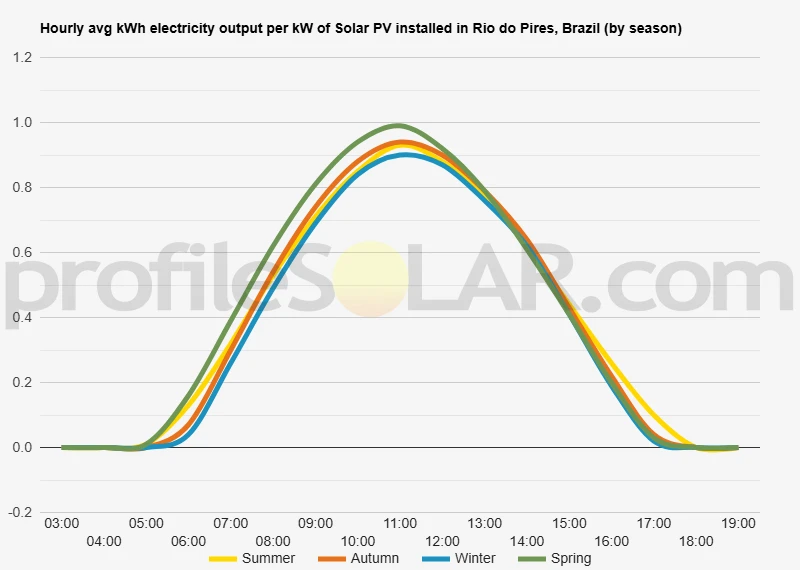

Solar output per kW of installed solar PV by season in Rio Do Pires

Seasonal solar PV output for Latitude: -13.1113, Longitude: -42.1775 (Rio Do Pires, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 13° North in Rio Do Pires, Brazil

To maximize your solar PV system's energy output in Rio Do Pires, Brazil (Lat/Long -13.1113, -42.1775) throughout the year, you should tilt your panels at an angle of 13° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rio Do Pires, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rio Do Pires, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 13° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° South in Summer	19° North in Autumn	29° North in Winter	8° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rio Do Pires, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rio Do Pires, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rio Do Pires, Brazil

Topographical Features of the Rio do Pires Region

The area around Rio do Pires in Bahia, Brazil sits within the semi-arid Caatinga region of northeastern Brazil, characterized by gently rolling hills and relatively modest elevation changes. This landscape forms part of the broader Brazilian Highlands, though at considerably lower elevations than the more mountainous regions further south. The terrain consists primarily of undulating plains punctuated by low ridges and shallow valleys, creating a landscape that rises and falls in gentle waves across the countryside. The elevation in this region typically ranges from approximately 400 to 600 meters above sea level, with the highest points representing low hills rather than significant peaks. These modest elevation changes contribute to good natural drainage patterns while avoiding the steep slopes that would complicate large infrastructure projects. The underlying geology consists primarily of crystalline basement rocks covered by weathered soils, creating relatively stable ground conditions suitable for construction activities.

Drainage and Water Features

The Rio do Pires itself represents one of several seasonal watercourses that flow through this semi-arid landscape. During the wet season, these rivers carry substantial water flows, but many become intermittent or completely dry during extended dry periods. The drainage pattern follows the natural topography, with streams flowing generally eastward toward the Atlantic coast through broad, shallow valleys. The presence of these seasonal water features creates slight depressions in the landscape, surrounded by higher ground that remains well-drained throughout the year. These elevated areas between the watercourses often provide the most suitable terrain for large-scale development projects, as they avoid both flood-prone areas and the steeper slopes immediately adjacent to water channels.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie on the broad, gently sloping plateaus that extend between the major drainage channels. These elevated areas typically feature slopes of less than five degrees, making them ideal for solar panel installation while providing excellent natural drainage to prevent water accumulation around equipment. The areas northwest and southeast of Rio do Pires present particularly favorable conditions, where the landscape opens into extensive flat to gently rolling terrain. These zones offer the combination of stable soils, minimal slope variation, and distance from seasonal flooding that large solar installations require. The crystalline bedrock underlying these areas provides solid foundations for mounting systems and access roads. Areas closer to the immediate vicinity of Rio do Pires and other watercourses should generally be avoided for major solar developments due to increased slope variability and potential seasonal water flow issues. The higher ground extending outward from these valley systems offers much more consistent conditions for large-scale solar arrays.

Infrastructure and Access Considerations

The topography around Rio do Pires facilitates relatively straightforward road construction and maintenance, which proves essential for solar project development and ongoing operations. The gentle terrain allows for efficient routing of access roads without requiring extensive grading or bridge construction. The stable soil conditions and modest elevation changes also support the heavy vehicle traffic necessary during construction phases. The broad, open character of the landscape means that large solar installations can be developed without significant clearing of steep terrain or complex earthwork projects. This topographical advantage, combined with the region's abundant solar resource, makes the elevated plateaus surrounding Rio do Pires well-suited to accommodate utility-scale photovoltaic developments that can take advantage of the area's excellent solar conditions.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
