Solar Energy Production in Rio do Sul, Brazil

Rio do Sul, Brazil, located in the Southern Sub Tropics, presents a moderate to good location for solar PV energy generation, with seasonal variations that impact overall production throughout the year. The solar energy output shows significant seasonal fluctuation, with summer being the most productive period at 6.22kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 4.68kWh/day, while autumn generates 4.40kWh/day. Winter shows the lowest production at 3.22kWh/day per kilowatt installed. For fixed panel installations in Rio do Sul, the ideal tilt angle to maximize year-round solar production is 24 degrees facing North. This specific angle optimizes the capture of solar radiation across all seasons, balancing the higher summer sun path with the lower winter sun trajectory.

Seasonal Considerations

Summer (December-February) represents the peak production period, making it an excellent time for energy generation. During these months, solar panels will operate at their highest efficiency, producing nearly twice the energy compared to winter months. The transition seasons of spring and autumn offer moderate production levels, with spring slightly outperforming autumn. These seasons still provide reasonable energy generation that can meet moderate household or business needs. Winter performance drops considerably, with output falling to approximately half of summer production. This seasonal dip should be factored into any energy planning for systems that need consistent year-round power.

Environmental Challenges

Rio do Sul's subtropical climate brings several challenges for solar PV installations. The region experiences high humidity and significant rainfall, particularly during summer months, which can temporarily reduce panel efficiency through cloud cover. Regular cleaning systems or self-cleaning panel technologies can help mitigate the effects of humidity and dust accumulation. The area is also subject to occasional severe storms, which pose risks of physical damage to solar installations. Robust mounting systems designed to withstand high winds and potential flooding are recommended, along with proper drainage solutions for installation sites. Additionally, the region's lush vegetation can create shading issues as trees grow. Regular maintenance to trim surrounding vegetation and careful initial placement of panels away from potential future shading sources can help maintain optimal production levels over the system's lifetime. Despite these challenges, with proper system design and preventative measures, Rio do Sul remains a viable location for solar energy production, particularly with its strong summer and moderate spring/autumn performance.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

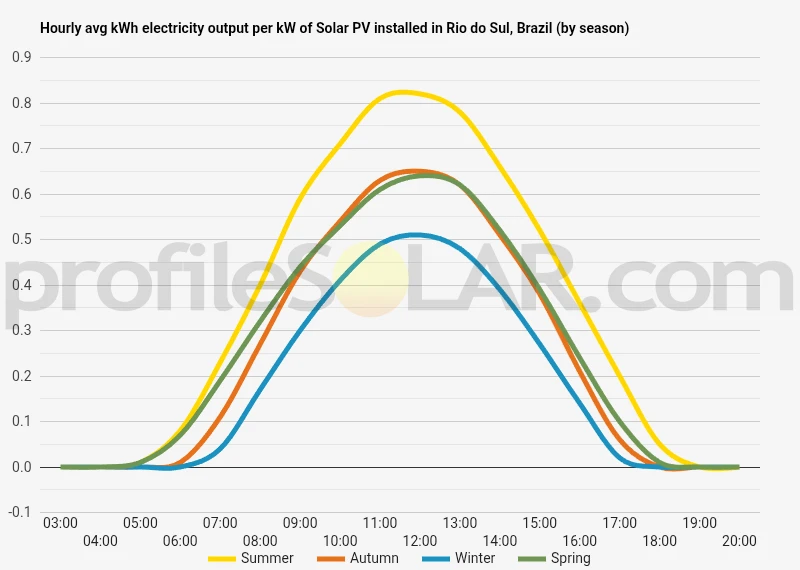

Solar output per kW of installed solar PV by season in Rio Do Sul

Seasonal solar PV output for Latitude: -27.199, Longitude: -49.6287 (Rio Do Sul, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Rio Do Sul, Brazil

To maximize your solar PV system's energy output in Rio Do Sul, Brazil (Lat/Long -27.199, -49.6287) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rio Do Sul, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rio Do Sul, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	33° North in Autumn	43° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rio Do Sul, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rio Do Sul, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rio Do Sul, Brazil

Rio do Sul, located in the Itajaí Valley of Santa Catarina state in southern Brazil, presents a varied and complex topography that significantly influences its potential for solar energy development. The city sits at approximately 340 meters above sea level and is nestled within a valley surrounded by rolling hills and more elevated terrain. The landscape around Rio do Sul is characterized by the presence of the Itajaí-Açu River, which cuts through the valley and has historically shaped both the physical environment and human settlement patterns. This river valley is flanked by hills that gradually rise to elevations of 600-800 meters in the surrounding areas, creating a basin-like formation where the city has developed.

Valley and Highland Characteristics

The topographical profile of Rio do Sul features a distinctive valley bottom where the urban center is concentrated, with terrain gradually rising into surrounding hills and small mountains. These elevated areas form part of the Serra do Mar mountain range's southern extensions, creating a varied landscape of valleys, hills, and plateaus. The region experiences a humid subtropical climate, with rainfall distributed throughout the year. This climate pattern, combined with the topographical features, has contributed to the development of dense vegetation in areas not cleared for agriculture or urban development.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations, the most suitable areas around Rio do Sul would be the higher elevation plateaus and hillsides that surround the valley, particularly those with northern exposures (in the Southern Hemisphere, north-facing slopes receive more direct sunlight). The elevated areas to the east and west of the city, where terrain flattens into plateaus at around 600-700 meters elevation, offer particular promise. These locations benefit from reduced fog effects that can be common in the valley bottom, especially during winter months. The higher elevations also experience less shading from surrounding terrain and vegetation. Areas along the highway BR-470 corridor, where some flatter terrain exists outside the immediate river valley, could also provide suitable locations that balance good solar exposure with accessibility for construction and grid connection.

Topographical Challenges

The varied topography does present certain challenges for large-scale solar development. Many hillsides in the region have significant slopes that would require careful engineering for solar array installation. The region's abundant rainfall has also created numerous small watersheds and drainage patterns that would need consideration in site planning. Additionally, the valley orientation runs roughly east-west, meaning that some southern-facing slopes would have reduced solar potential compared to northern-facing alternatives. The morning and evening horizon obstructions from surrounding hills could also slightly reduce the total daily solar radiation in some locations. Despite these challenges, the higher elevation areas surrounding Rio do Sul offer promising potential for solar PV development, particularly where relatively flat plateaus can be found with good northern exposure and existing access infrastructure.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
