Rio dos Cedros, Brazil, located in the Southern Sub Tropics, presents a moderately favorable location for year-round solar PV energy generation, though with notable seasonal variations that potential solar installers should understand.

Seasonal Solar Performance

The location experiences significant seasonal fluctuations in solar energy production. Summer delivers the highest output at 5.93 kWh per day per kW of installed solar capacity, making it the prime season for solar generation. Spring follows as the second-best performing season with 4.59 kWh per day per kW, while autumn drops to 4.41 kWh per day per kW. Winter presents the most challenging period for solar production, generating only 3.37 kWh per day per kW of installed capacity. This represents a 43% decrease from peak summer performance, which is quite substantial and should be factored into energy planning and system sizing calculations.

Optimal Installation Configuration

For maximum year-round energy production at Rio dos Cedros, solar panels should be installed at a fixed tilt angle of 24 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying elevation throughout the year and weighting these angles based on actual solar irradiance data.

Environmental and Weather Challenges

Several local factors could potentially impact solar production efficiency at this Southern Sub Tropical location:

• High humidity and moisture: The subtropical climate brings elevated humidity levels year-round, which can reduce panel efficiency and create condensation issues that may impede optimal light transmission to solar cells.
• Seasonal rainfall patterns: The region likely experiences distinct wet and dry seasons typical of subtropical climates, with heavy rainfall potentially reducing solar irradiance during certain periods and creating debris accumulation on panels.
• Temperature effects: While solar panels need sunlight, excessive heat can reduce their efficiency, and the warm subtropical temperatures may impact performance during peak summer months despite higher irradiance levels.
• Vegetation growth: The favorable growing conditions in subtropical climates mean that trees and vegetation can grow rapidly, potentially creating shading issues that weren't present during initial installation.

Preventative Measures for Optimal Performance

To maximize energy production despite these environmental challenges, several installation strategies should be considered:

• Enhanced ventilation: Install panels with adequate spacing beneath to promote air circulation, helping to manage both heat buildup and moisture-related issues.
• Regular maintenance scheduling: Establish a routine cleaning program to remove debris, dust, and organic matter that accumulates more rapidly in humid subtropical conditions.
• Strategic positioning: Carefully survey the installation site for current and potential future shading from vegetation, positioning panels to minimize obstruction while accounting for plant growth patterns.
• Quality mounting systems: Use corrosion-resistant mounting hardware designed for high-humidity environments to ensure long-term structural integrity.
• Drainage considerations: Ensure proper water runoff from panels to prevent standing water and associated efficiency losses.

Overall, while Rio dos Cedros offers reasonable solar potential, the significant winter production drop and subtropical environmental factors require careful planning and ongoing maintenance to achieve optimal energy generation throughout the year.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

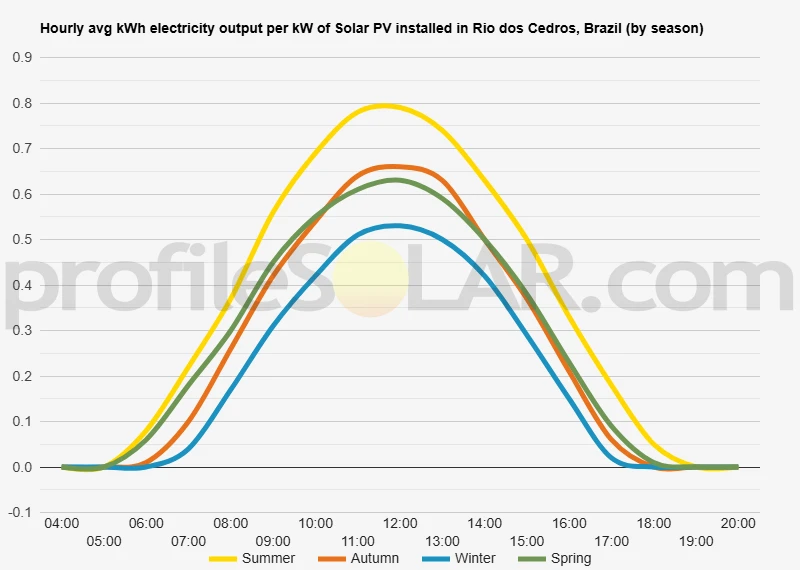

Solar output per kW of installed solar PV by season in Rio Dos Cedros

Seasonal solar PV output for Latitude: -26.6077, Longitude: -49.3712 (Rio Dos Cedros, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Rio Dos Cedros, Brazil

To maximize your solar PV system's energy output in Rio Dos Cedros, Brazil (Lat/Long -26.6077, -49.3712) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rio Dos Cedros, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rio Dos Cedros, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	42° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rio Dos Cedros, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rio Dos Cedros, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rio Dos Cedros, Brazil

Topographical Features of Rio dos Cedros Region

Rio dos Cedros sits within the coastal mountain ranges of Santa Catarina state in southern Brazil, characterized by rolling hills and moderate elevation changes typical of the Atlantic Forest region. The terrain around this municipality features a mix of gentle slopes and steeper inclines, with elevations generally ranging from 200 to 800 meters above sea level. The landscape is dominated by remnants of the Mata Atlântica (Atlantic Forest) biome, interspersed with agricultural areas and small settlements. The region's topography is heavily influenced by its position within the Itajaí River valley system, which creates a network of smaller valleys and ridgelines throughout the area. These valleys tend to follow northeast-southwest orientations, carved by centuries of water erosion through the underlying geological formations. The terrain becomes progressively more mountainous as one moves inland from the coast, with the Serra do Mar mountain range creating a dramatic backdrop to the east.

Climate and Environmental Characteristics

The subtropical highland climate of Rio dos Cedros brings distinct wet and dry seasons, with the topography playing a significant role in local weather patterns. The mountainous terrain creates orographic effects that influence rainfall distribution and cloud formation throughout the region. Valleys often experience morning fog and mist, while higher elevations tend to receive more consistent wind exposure. Dense forest cover remains prevalent across much of the steeper terrain, while flatter areas and gentle slopes have been converted to agricultural use over the decades. The region's elevation provides cooler temperatures compared to coastal areas, which can be beneficial for certain types of solar installations that perform better in moderate temperature conditions.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Rio dos Cedros would be the relatively flat to gently sloping areas found in the broader valley floors and on plateau-like formations at moderate elevations. These areas typically offer the best combination of accessible terrain, reduced construction complexity, and favorable solar exposure conditions. Agricultural areas on gentle slopes facing north or northwest would be particularly well-suited for solar development, as they often have existing road access and electrical infrastructure nearby. The cleared farmland also eliminates the environmental concerns associated with forest removal, making permitting processes more straightforward. Higher elevation plateaus and ridge tops, while offering excellent solar exposure, may present challenges due to access difficulties and potential wind exposure issues. However, some of these locations could still be viable for solar development if transportation infrastructure can be adequately established. The flatter sections of the Itajaí River valley system present excellent opportunities for ground-mounted solar arrays, particularly where the terrain has already been cleared for agriculture. These areas typically have good drainage characteristics and are less prone to the fog and mist issues that can affect solar panel performance in some valley locations. Areas to avoid would include the steeper forested slopes, narrow valley bottoms prone to flooding, and locations with significant tree cover that would require extensive clearing. The region's environmental sensitivity also means that any large-scale solar development would need to carefully consider impacts on remaining Atlantic Forest fragments and local watersheds.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
