Morrinhos, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -3.3144, -40.1246, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than the dramatic temperature and daylight changes seen in temperate regions.

Solar Energy Production Potential

The solar energy output data for Morrinhos demonstrates strong and consistent performance across all seasons. Summer produces 5.61 kWh per day per kW of installed solar capacity, while autumn shows a slight improvement at 5.73 kWh/day. Winter performance increases further to 6.17 kWh/day, and spring delivers the highest output at 6.82 kWh/day per kW of installed capacity. This seasonal pattern is typical for tropical locations, where the sun's angle changes throughout the year create optimal conditions during certain periods. Spring emerges as the ideal time for solar generation at this location, followed by winter, making these seasons particularly valuable for maximizing energy production.

Optimal Panel Configuration

For fixed panel installations at Morrinhos, the ideal tilt angle to maximize total year-round solar production is 4 degrees North. This relatively shallow angle reflects the location's proximity to the equator, where panels need only minimal tilting to capture optimal sunlight throughout the year.

Environmental and Weather Challenges

Several factors could potentially impact solar production efficiency at this Brazilian location:

• Heavy rainfall and wet seasons: Tropical regions experience intense rainy periods that can reduce solar irradiance and leave water spots or debris on panels
• High humidity levels: Persistent moisture can affect electrical connections and potentially reduce system efficiency over time
• Dust and pollen accumulation: The combination of dry periods followed by wet seasons can create conditions for significant panel soiling
• Intense UV exposure: Strong tropical sunlight, while beneficial for energy production, can accelerate degradation of panel materials and mounting systems

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these challenges, several installation strategies prove effective:

• Regular cleaning systems: Install automated panel cleaning systems or establish frequent manual cleaning schedules, particularly after dust storms or heavy pollen seasons
• Enhanced drainage design: Ensure proper panel mounting angles and drainage systems to prevent water pooling and promote quick drying after rainfall
• Corrosion-resistant materials: Use marine-grade or tropical-rated mounting hardware and electrical components designed to withstand high humidity environments
• UV-resistant components: Select panels and mounting systems with enhanced UV protection and longer warranty periods suitable for intense tropical sun exposure

Despite these considerations, Morrinhos offers exceptional conditions for solar energy generation, with consistent high output throughout the year making it an ideal location for both residential and commercial solar installations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

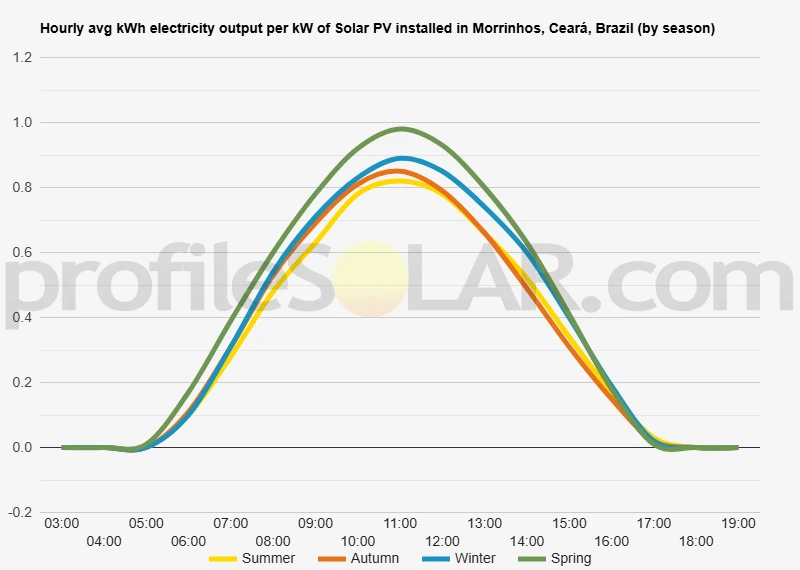

Solar output per kW of installed solar PV by season in Morrinhos, Ceará

Seasonal solar PV output for Latitude: -3.3144, Longitude: -40.1246 (Morrinhos, Ceará, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Morrinhos, Ceará, Brazil

To maximize your solar PV system's energy output in Morrinhos, Ceará, Brazil (Lat/Long -3.3144, -40.1246) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Morrinhos, Ceará, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Morrinhos, Ceará, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	10° North in Autumn	19° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Morrinhos, Ceará, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Morrinhos, Ceará, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Morrinhos, Ceará, Brazil

Topographical Overview of Morrinhos Region

The area around Morrinhos, located in the state of Goiás in central Brazil, is characterized by gently rolling hills and relatively flat plateaus that are typical of the Brazilian Central Plateau. This region sits at an elevation of approximately 750 to 900 meters above sea level, forming part of the expansive cerrado landscape that dominates much of central Brazil. The topography is generally undulating with gradual slopes and broad, open valleys that stretch across the countryside. The terrain consists primarily of sedimentary formations with weathered soils that have developed over millions of years. These geological features have created a landscape of moderate relief, where steep inclines are rare and most slopes remain gentle enough to support various land uses. The area experiences minimal dramatic elevation changes, with most variations occurring gradually across distances of several kilometers rather than abrupt cliff faces or deep gorges.

Drainage and Water Features

The region's drainage patterns follow the natural contours of the land, with several small to medium-sized streams and rivers meandering through the valleys. These waterways have carved shallow channels into the landscape over time, creating subtle depressions and floodplains that add variety to the otherwise consistent topography. The watershed characteristics of this area contribute to the formation of seasonal wetlands and gallery forests along the watercourses. During the wet season, some lower-lying areas may experience temporary flooding or become marshy, while the higher elevations and plateaus remain well-drained throughout the year. This natural drainage system has shaped the agricultural patterns of the region, with different crops and land uses adapted to the varying moisture conditions across the landscape.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Morrinhos vicinity would be the elevated plateaus and gently sloping hillsides that face south or southeast. These areas offer several advantages including consistent elevation, minimal shading from surrounding terrain features, and natural drainage that prevents water accumulation around equipment installations. The broad, relatively flat expanses found on the higher elevations provide ideal conditions for solar arrays, as they require minimal grading and earthwork during construction. These plateau areas typically have slopes of less than five degrees, which allows for efficient panel placement and maintenance access while still providing adequate drainage to prevent standing water issues. Areas to avoid for solar development would include the narrow valley bottoms where seasonal flooding might occur, steep-sided hills that would require extensive terracing, and locations near gallery forests where tree shadows could impact panel performance. The marshy or seasonally wet areas along stream corridors would also present challenges for foundation stability and equipment access. The northern and northwestern facing slopes in the region would be less optimal for solar installations due to reduced direct sunlight exposure throughout the day. Similarly, areas with significant tree cover or those designated for environmental protection should be excluded from consideration for large-scale solar development.

Infrastructure and Access Considerations

The topography around Morrinhos generally supports good road access and infrastructure development, which is crucial for large-scale solar projects. The moderate relief and stable soils make it relatively straightforward to construct access roads and transmission lines to connect solar installations to the electrical grid. The higher elevation areas not only provide better solar exposure but also offer advantages for electrical transmission, as power lines can follow ridge lines and elevated corridors with fewer obstacles. The consistent elevation changes across the landscape allow for strategic placement of substations and switching equipment at optimal locations for grid integration.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
