Rodeiro, Minas Gerais, Brazil presents a moderately good location for year-round solar energy generation, though it experiences notable seasonal variation in solar output. The location produces its highest energy during summer months at 6.45kWh per day per kW of installed solar capacity, while winter sees the lowest production at 4.49kWh per day per kW.

Seasonal Performance Analysis

Summer represents the peak solar generation period, delivering approximately 44% more energy than the winter months. Spring and autumn provide intermediate production levels at 5.17kWh and 5.40kWh per day per kW respectively. This seasonal pattern is typical for locations in the Southern Hemisphere, where summer occurs from December through February. The winter production drop to 4.49kWh per day per kW indicates that solar installations will generate significantly less electricity during June through August. However, the year-round generation capability means solar remains viable throughout all seasons, just with reduced winter output.

Optimal Installation Configuration

For maximum year-round energy production at Rodeiro, Minas Gerais, solar panels should be installed at a fixed tilt angle of 20 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying elevation angles throughout the year and weighting them according to solar irradiance potential at this specific latitude.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at this Brazilian location:

• Tropical rainfall patterns: Heavy seasonal rains during wet periods can reduce solar irradiance and create cloud cover that diminishes energy output
• High humidity levels: Consistent tropical humidity may lead to moisture-related issues with electrical components and reduce panel efficiency
• Dust and debris accumulation: Dry season conditions can result in dust buildup on panels, reducing their ability to capture sunlight effectively

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these environmental challenges, several installation strategies should be considered: Regular cleaning schedules become essential during dry periods to remove dust and debris that accumulate on panel surfaces. Installing panels with adequate spacing and ventilation helps combat humidity-related efficiency losses by allowing air circulation to keep components cooler and drier. Selecting corrosion-resistant mounting systems and electrical components rated for high-humidity tropical environments will ensure longer system lifespan and maintained performance. Additionally, installing monitoring systems can help identify when cleaning or maintenance is needed to maintain optimal energy generation. The seasonal nature of rainfall actually provides some natural panel cleaning during wet periods, but manual cleaning during drier months will be necessary to maintain peak performance throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

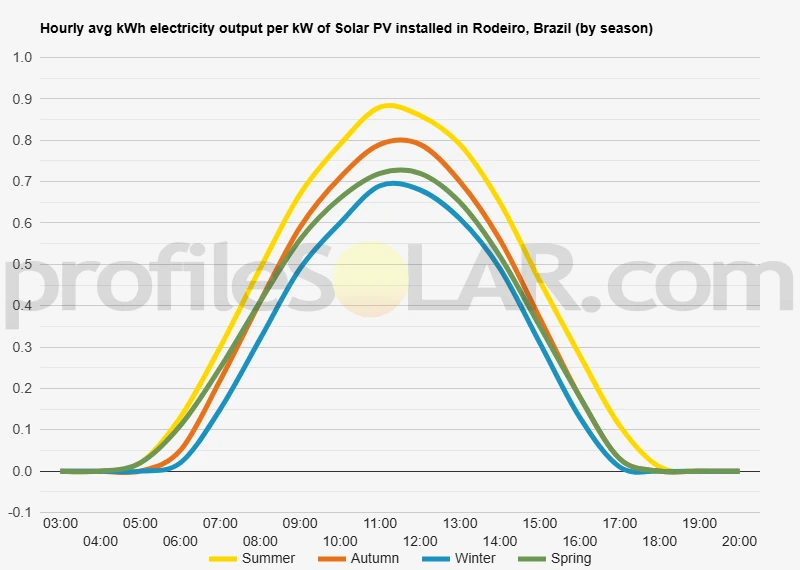

Solar output per kW of installed solar PV by season in Rodeiro

Seasonal solar PV output for Latitude: -21.2094, Longitude: -42.843 (Rodeiro, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Rodeiro, Brazil

To maximize your solar PV system's energy output in Rodeiro, Brazil (Lat/Long -21.2094, -42.843) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rodeiro, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rodeiro, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rodeiro, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rodeiro, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rodeiro, Brazil

Topographical Features of the Rodeiro Region

Rodeiro sits within the southeastern Brazilian state of Minas Gerais, positioned in a region characterized by rolling hills and gentle undulations typical of the Brazilian Highlands. The topography around this municipality features a mix of moderate elevations and valley systems that create a varied landscape of slopes and plateaus. The terrain generally consists of weathered crystalline rock formations that have been shaped over millions of years into rounded hills and broad valleys.

The immediate area around Rodeiro displays elevations that range from approximately 400 to 800 meters above sea level, with the terrain gradually rising and falling in waves across the landscape. These elevation changes are generally gradual rather than steep, creating long, sweeping slopes that extend for several kilometers. The region benefits from good natural drainage due to this undulating topography, with numerous small streams and tributaries flowing through the valleys between the hills.

The local geology consists primarily of metamorphic and igneous rocks from the Precambrian era, which have weathered into deep, reddish soils typical of much of Minas Gerais. This geological foundation provides stable ground conditions across most of the area, though the degree of slope varies considerably from one location to another.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Rodeiro would be the broader plateau areas and gentle south-facing slopes that offer relatively flat or mildly inclined terrain. These areas provide the dual advantages of stable ground conditions for mounting systems and minimal shading from surrounding topographical features.

The elevated plateau regions to the north and east of Rodeiro present particularly attractive opportunities for solar development. These areas typically feature expanses of relatively level ground with gradual slopes that rarely exceed 5-10 degrees, making them ideal for conventional ground-mounted solar arrays. The stable geological conditions in these zones also reduce foundation costs and engineering complexity.

Valley floors and lower-lying areas, while often flatter, may be less suitable due to potential drainage issues during the rainy season and the possibility of morning fog formation that could affect solar panel performance. Additionally, these lower areas might experience more shading from surrounding hills during early morning and late afternoon periods.

The western approaches to Rodeiro also show promise for solar installations, particularly where the terrain opens up into broader, less dissected upland areas. These locations benefit from good accessibility via existing rural roads while maintaining the stable ground conditions necessary for large-scale solar infrastructure. The generally open nature of the landscape in these areas also minimizes concerns about shading from vegetation or adjacent topographical features.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
