Rolante, Rio Grande do Sul, Brazil, situated in the Southern Sub Tropics at latitude -29.612 and longitude -50.5454, presents a variable but generally favorable environment for solar PV energy generation throughout the year. The location experiences significant seasonal fluctuations in solar energy production potential.

Seasonal Solar Production

Solar energy production at this location varies considerably across seasons. Summer months yield the highest output at 6.87kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.67kWh/day. Autumn provides moderate generation at 4.48kWh/day, while winter shows the lowest production at just 3.28kWh/day per kilowatt installed.

This seasonal pattern means that solar systems in Rolante will produce more than twice as much electricity during summer compared to winter months. This variation is important to consider when sizing a system to meet year-round energy needs.

Optimal Panel Installation

For fixed solar panel installations in Rolante, Rio Grande do Sul, the ideal tilt angle to maximize year-round energy production is 26 degrees facing North. This specific angle optimizes the annual solar harvest by balancing seasonal variations in sun position throughout the year.

Environmental Considerations

Several environmental factors in Rolante may impact solar production. The region experiences a humid subtropical climate with potential challenges including:

• Frequent rainfall and humidity, especially during summer months, which can temporarily reduce solar efficiency
• Potential for dust and pollen accumulation on panels due to the region's vegetation
• Occasional hailstorms that could physically damage panels

To mitigate these challenges, solar installations in Rolante should incorporate several preventative measures. Regular cleaning schedules will help maintain optimal performance by removing dust and pollen. High-quality panels with tempered glass and proper hail ratings are recommended. Additionally, installing panels with sufficient drainage angles will help prevent water accumulation after rainfall.

While winter months show significantly reduced production, the overall annual potential makes Rolante a viable location for solar energy systems when properly designed and maintained.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

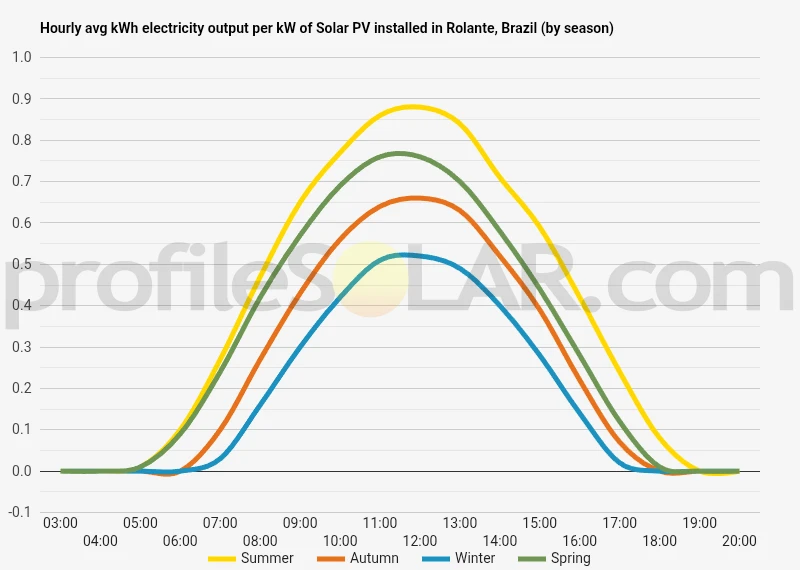

Solar output per kW of installed solar PV by season in Rolante

Seasonal solar PV output for Latitude: -29.612, Longitude: -50.5454 (Rolante, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Rolante, Brazil

To maximize your solar PV system's energy output in Rolante, Brazil (Lat/Long -29.612, -50.5454) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rolante, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rolante, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rolante, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rolante, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rolante, Brazil

The topography around Rolante, Brazil presents a diverse and complex landscape characterized by significant variations in elevation. Located in the northeastern region of Rio Grande do Sul state, Rolante sits within the southern portion of the Serra Geral mountain range. The terrain features a striking transition from the coastal lowlands in the east to the more elevated highlands as one moves westward. The immediate vicinity of Rolante is marked by a series of valleys and hills, with elevations ranging from approximately 70 meters above sea level in the lower valley floors to over 800 meters in the surrounding highlands. The municipality itself is nestled within a valley formed by the Rolante River, which has carved its path through the landscape over millennia.

Mountain Influences

The Serra Geral formation dominates the regional topography, creating a dramatic backdrop of steep escarpments and ridgelines. These mountains run roughly north-south and constitute part of the greater Serra do Mar coastal range system. The eastern slopes of these mountains are generally steeper, while the western aspects tend to have more gradual inclines. The mountainous terrain creates numerous microclimates throughout the region, with variations in temperature, precipitation, and wind patterns depending on elevation, aspect, and proximity to valleys. These topographical features have traditionally shaped land use patterns in the area, with agriculture concentrated in the valley bottoms and lower slopes, while the steeper areas remain forested.

Potential for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several areas near Rolante offer promising conditions based on topographical considerations: The gently sloping highlands to the west of Rolante present some of the most suitable terrain for solar development. These areas, typically at elevations between 400-700 meters, offer relatively flat plateaus and gradual slopes that would minimize the earthwork required for installation while providing good solar exposure. The broader valley floors, particularly those extending northeast and southwest of the main Rolante valley, provide expanses of relatively flat land that could accommodate large solar arrays. These areas benefit from reduced shadowing effects from the surrounding mountains, particularly in locations where the valley orientation aligns with the east-west solar path.

Topographical Challenges

Despite these opportunities, the region's topography does present certain challenges for solar development. The steep mountain slopes that characterize much of the area are generally unsuitable for large-scale installations due to construction difficulties, potential soil instability, and shadowing effects. Additionally, the narrow valleys can experience reduced direct sunlight during portions of the day as the surrounding mountains cast shadows. The region also experiences significant rainfall, which has shaped the topography through erosional processes. This has created a network of drainage systems and occasional steep-sided gullies that would need to be avoided or accommodated in solar development plans.

Optimal Development Areas

Considering these topographical factors, the most promising areas for large-scale solar PV development near Rolante would be: 1. The elevated plateaus approximately 10-15 kilometers west and northwest of Rolante's center, where the terrain levels out after the initial rise from the valley floor. 2. The broader, open areas of the main valley, particularly in its southern reaches where it widens considerably before joining the larger regional drainage system. 3. The transitional slopes between the valley floor and steeper mountains, particularly those with western, southwestern, or southern aspects that receive consistent sunlight throughout the day. These areas combine favorable topographical characteristics with sufficient space for commercial-scale solar installations while avoiding the most challenging terrain features of this mountainous region.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
