Catanduvas, Brazil presents a moderately good location for year-round solar energy generation, though with significant seasonal variation typical of its Southern Sub Tropics climate zone. The location experiences its strongest solar production during summer months at 7.01kWh per day per kW of installed capacity, while winter months see the lowest output at just 3.68kWh per day per kW.

Seasonal Performance Patterns

The solar energy output shows a clear seasonal pattern that follows the Southern Hemisphere's sun cycle. Summer delivers the highest production at 7.01kWh/day per kW, making it an excellent time for solar generation. Spring follows as the second-best season with 5.93kWh/day per kW, while autumn drops to 4.95kWh/day per kW. Winter presents the most challenging period with only 3.68kWh/day per kW, representing nearly a 50% reduction from peak summer performance. For optimal year-round energy capture at this location, solar panels should be installed at a fixed tilt angle of 24 degrees facing North. This angle has been calculated to maximize total annual solar output by accounting for the sun's varying position throughout the year and weighting the angles based on actual solar irradiance data.

Local Environmental Challenges

Several environmental and weather factors in the Catanduvas region can potentially impact solar energy production:

• High humidity and frequent rainfall: The subtropical climate brings substantial moisture that can reduce panel efficiency and create more cloudy days, particularly during summer months when thunderstorms are common
• Dust and pollen accumulation: The agricultural surroundings and seasonal pollen can create film buildup on panels, reducing light transmission
• Hail risk: Severe weather systems in this region occasionally produce hail that could damage solar installations
• Strong winds: Storm systems can bring high winds that may affect panel mounting systems

Preventative Installation Measures

To maximize energy production despite these challenges, several preventative measures should be implemented during installation. Regular cleaning systems or easy-access designs allow for frequent panel maintenance to remove dust, pollen, and water spots that accumulate in the humid environment. Robust mounting systems designed for high wind loads will ensure panels remain secure during storms. Installing panels with adequate spacing allows for better air circulation, which helps reduce the efficiency losses that occur when panels overheat in humid conditions. Impact-resistant glass or protective films can help panels withstand hail damage, while proper drainage design prevents water pooling that could lead to electrical issues or accelerated wear. Consider installing monitoring systems that can quickly identify underperforming panels, allowing for prompt maintenance in this challenging climate. The location's winter production dip means that battery storage or grid-tie systems become particularly valuable for maintaining consistent energy supply during the lower-production months from June through August.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

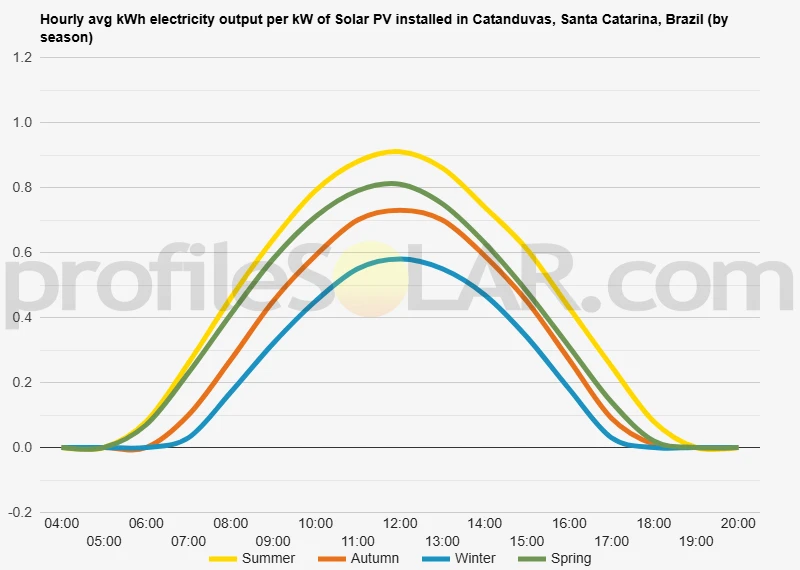

Solar output per kW of installed solar PV by season in Catanduvas, Santa Catarina

Seasonal solar PV output for Latitude: -27.0512, Longitude: -51.7265 (Catanduvas, Santa Catarina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Catanduvas, Santa Catarina, Brazil

To maximize your solar PV system's energy output in Catanduvas, Santa Catarina, Brazil (Lat/Long -27.0512, -51.7265) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Catanduvas, Santa Catarina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Catanduvas, Santa Catarina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	33° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Catanduvas, Santa Catarina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Catanduvas, Santa Catarina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Catanduvas, Santa Catarina, Brazil

Topographical Features of Catanduvas and Surrounding Region

Catanduvas is situated in the western region of Santa Catarina state, Brazil, nestled within the gently rolling terrain characteristic of the southern Brazilian highlands. The municipality sits at an elevation of approximately 650 meters above sea level, positioned on what geographers call the Second Planalto, or Second Plateau, of the Paraná Basin. This elevated plateau region extends across much of southern Brazil and is distinguished by its relatively stable geological foundation and moderate relief.

The landscape around Catanduvas features a series of undulating hills and broad valleys, with elevation changes that are generally gradual rather than dramatic. The terrain slopes gently toward the west, following the natural drainage patterns that eventually feed into the Paraná River system. Local topography is characterized by rounded hilltops and wide, shallow valleys that have been carved by centuries of erosion from the region's numerous small streams and tributaries.

The area experiences a subtropical highland climate, with the elevated position contributing to more moderate temperatures than found in lower-lying regions of Brazil. The rolling topography creates natural windbreaks and microclimates, while the generally open landscape allows for good air circulation and minimal shading from major geographical features.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie on the broader hilltops and gentle southern-facing slopes within a 20-kilometer radius of Catanduvas. These elevated areas offer several advantages, including minimal shading from surrounding terrain and excellent exposure to direct sunlight throughout the day. The relatively stable geological conditions of the plateau provide solid foundations for large-scale infrastructure development.

Particularly suitable areas can be found to the southwest and southeast of the municipality, where the terrain opens into wider valleys with extensive flat to gently sloping land. These locations benefit from the natural topographical features that minimize wind turbulence while maximizing solar exposure. The gradual slopes in these areas, typically ranging from 2 to 8 degrees, are ideal for optimizing panel orientation without requiring extensive grading or earthwork.

The agricultural lands surrounding Catanduvas present additional opportunities, as many of the existing farm fields occupy naturally level or gently sloping terrain that could accommodate solar arrays with minimal site preparation. The established rural infrastructure, including access roads and electrical connections, provides a foundation for solar development that could reduce installation costs and complexity.

Areas near the BR-282 highway corridor offer particular advantages due to existing transportation infrastructure and proximity to electrical transmission lines. The relatively open topography along this corridor, combined with the stable elevation and good drainage characteristics of the plateau, creates conditions well-suited to large-scale solar installations. The moderate relief ensures that installations would not create significant visual impact on the surrounding landscape while maintaining optimal performance characteristics.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
