Salvador do Sul, Brazil is located in the Southern Sub Tropics and demonstrates reasonably good potential for year-round solar PV energy generation, though with significant seasonal variation that impacts its overall effectiveness.

Seasonal Solar Performance

The location shows strong summer performance with 7.26kWh per day per kW of installed solar capacity, making December through February the optimal period for solar energy generation. Spring follows as the second-best season at 5.80kWh/day, while autumn drops to 4.62kWh/day. Winter presents the most challenging conditions with only 3.24kWh/day, representing less than half the summer output. This seasonal pattern is typical for locations in the Southern Hemisphere, where the sun's path during winter months results in reduced solar irradiance. The substantial difference between summer and winter production means that solar installations need to be sized appropriately to meet energy demands during the lower-production months.

Optimal Panel Configuration

For a fixed panel installation at Salvador do Sul, the ideal angle to tilt panels to maximize total year-round production is 25 degrees North. This angle represents the optimal compromise across all seasons, calculated by analyzing daily solar elevation angles and weighting them according to solar irradiance potential throughout the year.

Local Factors Affecting Solar Production

Several environmental and weather factors in this Southern Sub Tropical location can impact solar energy production:

• High humidity and moisture: The subtropical climate brings elevated humidity levels that can reduce panel efficiency and promote the accumulation of moisture-related debris
• Frequent cloud cover: Subtropical regions often experience periods of increased cloud coverage, particularly during certain seasons, which directly reduces solar irradiance
• Heavy rainfall: While rain can help clean panels naturally, intense subtropical storms may cause temporary significant drops in production
• Vegetation growth: The favorable growing conditions in subtropical climates mean that surrounding vegetation can grow rapidly and create shading issues

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar production despite these local challenges:

• Enhanced ventilation: Install panels with adequate spacing from the roof surface to promote air circulation and reduce heat buildup caused by high humidity
• Regular maintenance scheduling: Implement more frequent cleaning schedules to address humidity-related debris and ensure panels remain unobstructed
• Strategic placement: Carefully assess the installation site for potential shading from fast-growing subtropical vegetation and plan panel placement accordingly
• Drainage considerations: Ensure proper drainage around the installation area to prevent water accumulation during heavy rainfall periods
• Quality mounting systems: Use corrosion-resistant mounting hardware designed to withstand the higher moisture levels typical of subtropical climates

Overall, Salvador do Sul presents a moderately favorable location for solar PV installation, with excellent summer performance offsetting the more challenging winter months. Proper installation techniques that account for the subtropical climate conditions can help ensure reliable long-term energy production.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

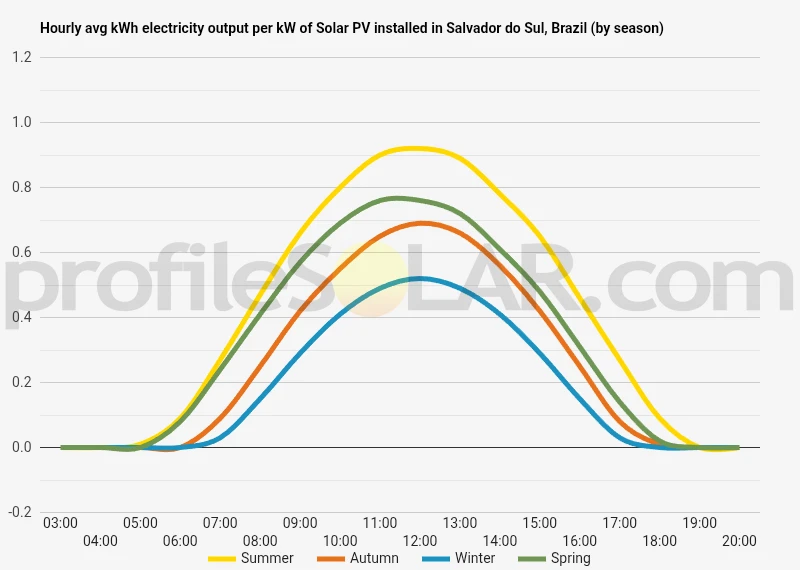

Solar output per kW of installed solar PV by season in Salvador Do Sul

Seasonal solar PV output for Latitude: -29.4832, Longitude: -51.5143 (Salvador Do Sul, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Salvador Do Sul, Brazil

To maximize your solar PV system's energy output in Salvador Do Sul, Brazil (Lat/Long -29.4832, -51.5143) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Salvador Do Sul, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Salvador Do Sul, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Salvador Do Sul, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Salvador Do Sul, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Salvador Do Sul, Brazil

Topographical Features of Salvador do Sul Region

Salvador do Sul sits within the Serra Gaúcha region of Rio Grande do Sul state, characterized by rolling hills and gentle slopes that form part of the broader Southern Brazilian Highlands. The terrain around this municipality features a mix of undulating countryside with elevations ranging from moderate valleys to higher ridgelines. The landscape displays the typical characteristics of the Rio Grande do Sul interior, with smooth, rounded hills created by ancient geological processes and weathering patterns over millions of years. The immediate area around Salvador do Sul presents a mosaic of agricultural land, pastures, and scattered woodlands. The topography is generally well-drained due to the sloping terrain, which prevents water accumulation and creates favorable conditions for various land uses. Small streams and tributaries flow through the valleys, creating natural drainage patterns that have shaped the local geography over time.

Regional Terrain Analysis

Moving outward from Salvador do Sul, the topographical patterns continue with similar rolling characteristics extending in all directions. To the north and east, the terrain maintains its gentle undulating nature, while areas to the west and southwest show slightly more pronounced elevation changes. The region benefits from relatively stable geological foundations, with minimal risk of significant erosion or landslide activity on most slopes. The soil composition throughout the area consists primarily of well-developed agricultural soils that have formed over volcanic and sedimentary parent materials. These soils, combined with the moderate slopes, create conditions that support both intensive agriculture and potential alternative land uses. The climate interaction with the topography produces relatively consistent weather patterns across the region, with the rolling hills providing some protection from extreme weather events.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Salvador do Sul would be the gently sloping hillsides with southern exposure, taking advantage of Brazil's position in the Southern Hemisphere where north-facing slopes receive less direct sunlight. The ideal sites would feature gradual slopes between 5 and 15 degrees, providing optimal panel positioning while minimizing construction and maintenance challenges. Areas with minimal tree coverage and existing agricultural use present the best opportunities for solar development. The rolling pastureland extending to the southeast and southwest of Salvador do Sul offers particularly promising conditions, with adequate slope for drainage while remaining gentle enough for efficient installation and maintenance access. These areas typically have established road networks due to their agricultural history, which would facilitate construction and ongoing operations. The higher elevation areas surrounding the municipality could also prove suitable, particularly those with consistent southern-facing aspects. These locations often experience better air circulation, which can improve solar panel efficiency by reducing operating temperatures. Additionally, the elevated positions tend to have fewer obstacles that might create shading issues during different seasons.

Infrastructure and Access Considerations

The existing road network throughout the Salvador do Sul region generally follows the natural contours of the landscape, creating reasonable access to most potential solar development sites. The relatively gentle topography means that extending access roads to optimal solar locations would not require extensive earthwork or engineering challenges that might be encountered in more mountainous regions. The terrain characteristics also favor the installation of electrical transmission infrastructure needed to connect large solar installations to the regional power grid. The stable soil conditions and moderate slopes provide good foundations for transmission towers and underground cable runs, while the open nature of much of the landscape minimizes the need for extensive clearing or environmental disruption during construction phases.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
