Santa Izabel do Oeste, Brazil presents a moderately favorable location for year-round solar PV energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows significant seasonal fluctuation. Summer delivers the strongest performance at 7.02 kWh per day per kW of installed capacity, making it the prime solar generation period. Spring follows as the second-best season with 6.11 kWh per day per kW, while autumn drops to 5.30 kWh per day per kW. Winter presents the most challenging period for solar generation, producing only 3.96 kWh per day per kW of installed capacity. This represents a substantial 44% decrease compared to summer output, which is typical for locations in the Southern Hemisphere where winter coincides with the sun's northern migration.

Optimal Installation Configuration

For fixed panel installations at Santa Izabel do Oeste, the ideal tilt angle is 23 degrees North to maximize total year-round solar production. This angle is calculated by analyzing daily solar elevation angles at the specific latitude, determining optimal panel positioning, and weighting these angles using NASA solar irradiance data to account for Earth's elliptical orbit.

Local Environmental Challenges

Several environmental factors in this region can potentially impact solar energy production:

• High humidity levels typical of subtropical climates can reduce panel efficiency and create condensation issues
• Frequent rainfall during certain seasons may limit solar generation and create cleaning challenges
• Potential for severe weather events including hailstorms that could damage panels
• Dense vegetation growth in the humid climate may create shading issues if not properly managed

Preventative Installation Measures

To maximize energy production despite these challenges, several preventative measures should be implemented:

• Install panels with adequate ventilation spacing underneath to reduce humidity-related efficiency losses
• Use anti-reflective coatings and hydrophobic treatments to minimize water spotting and improve self-cleaning
• Implement robust mounting systems designed to withstand high winds and potential hail damage
• Establish regular vegetation management protocols to prevent shading from overgrown trees or shrubs
• Consider micro-inverters or power optimizers to minimize production losses from partial shading

Regular maintenance schedules become particularly important in this subtropical environment to ensure panels remain clean and free from organic debris that accumulates more rapidly in humid conditions.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

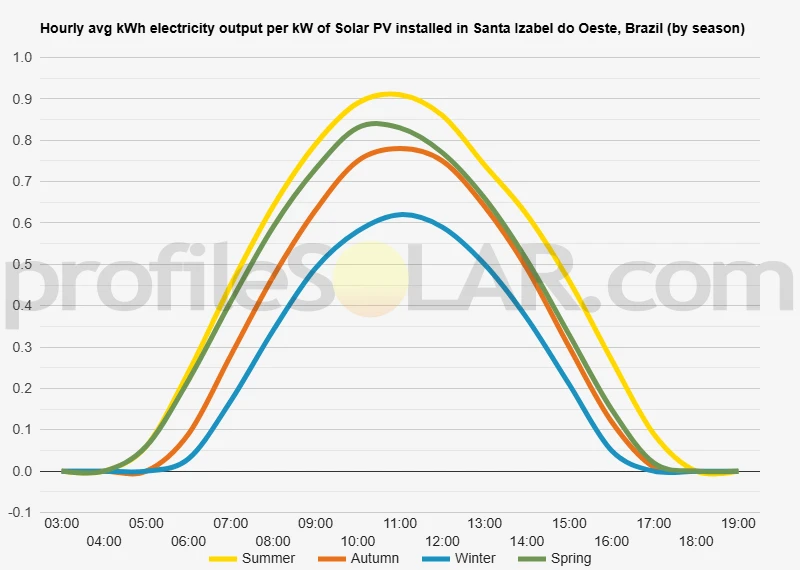

Solar output per kW of installed solar PV by season in Santa Izabel Do Oeste

Seasonal solar PV output for Latitude: -25.7767, Longitude: -53.4074 (Santa Izabel Do Oeste, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° North in Santa Izabel Do Oeste, Brazil

To maximize your solar PV system's energy output in Santa Izabel Do Oeste, Brazil (Lat/Long -25.7767, -53.4074) throughout the year, you should tilt your panels at an angle of 23° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Santa Izabel Do Oeste, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Santa Izabel Do Oeste, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	31° North in Autumn	41° North in Winter	18° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Santa Izabel Do Oeste, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Santa Izabel Do Oeste, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Santa Izabel Do Oeste, Brazil

Topography Around Santa Izabel do Oeste

Santa Izabel do Oeste sits in the western region of Paraná state, Brazil, positioned within the distinctive landscape of the Paraná Plateau. This area forms part of the broader Brazilian Highlands, characterized by relatively elevated terrain that gradually slopes toward the Paraná River basin. The municipality lies at an elevation of approximately 400 to 500 meters above sea level, creating a moderately elevated platform that extends across much of the surrounding region.

The terrain around Santa Izabel do Oeste consists primarily of gently rolling hills and broad, undulating plains. These features result from the underlying geology of ancient basaltic lava flows that once covered this portion of South America. Over millions of years, weathering and erosion have created a landscape of smooth, rounded topography with relatively gentle gradients. The area lacks dramatic elevation changes, steep slopes, or significant mountain ranges, instead presenting a series of low ridges separated by shallow valleys.

The region experiences a subtropical climate with distinct wet and dry seasons, supporting a landscape that transitions between agricultural land and remnant Atlantic Forest fragments. Much of the natural vegetation has been converted to farmland, creating an open landscape dominated by crop fields, pastures, and scattered woodlots. The Paraná River system drains the area through various tributaries, creating a network of small streams and rivers that flow generally westward toward the main river channel.

Optimal Areas for Large-Scale Solar Development

The topography around Santa Izabel do Oeste presents several advantages for large-scale solar photovoltaic installations. The most suitable areas would be the broad, gently sloping plateaus that extend north and east of the municipality. These elevated plains offer extensive flat to moderately sloping terrain with minimal obstructions, allowing for efficient panel placement and maintenance access while maximizing solar exposure throughout the day.

The agricultural lands surrounding the municipality represent particularly promising locations for solar development. These areas have already been cleared of natural vegetation and typically feature gentle slopes that can accommodate large arrays without significant grading or earthwork. The existing road infrastructure serving farming operations would facilitate construction and ongoing maintenance of solar installations.

Areas with south-facing slopes would be especially valuable for solar development, as they receive optimal sun exposure in the Southern Hemisphere. The rolling terrain provides natural variations in aspect and slope that can be utilized to optimize panel orientation. The relatively stable geology of the basaltic plateau offers solid foundations for mounting systems and reduces concerns about ground instability.

The proximity to existing electrical infrastructure serving the agricultural region presents additional advantages. Rural electrification networks and transmission lines already connect this area to the broader grid, potentially reducing the costs and complexity of connecting large solar installations to the electrical system. The open landscape also minimizes shading concerns from trees or structures, while the elevated position of the plateau provides good air circulation that can help maintain optimal panel temperatures.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
