Santa Maria de Itabira, Brazil represents a very good location for year-round solar energy generation. This tropical location benefits from consistent sunlight throughout the year, with seasonal variations being more influenced by wet and dry periods rather than dramatic changes in daylight hours.

The solar energy output at this location shows strong performance across all seasons. Summer delivers the highest production at 6.13 kWh per day per kW of installed solar capacity, while spring follows closely at 5.78 kWh per day. Autumn maintains solid output at 5.67 kWh per day, and even winter, the lowest producing season, still generates a respectable 4.96 kWh per day per kW installed.

Optimal Installation Setup

For maximum year-round energy production at Santa Maria de Itabira, solar panels should be installed at a fixed tilt angle of 19 degrees facing north. This angle has been calculated to optimize total annual solar output by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at this location and should be considered during installation planning:

Seasonal Rainfall: The tropical climate brings distinct wet and dry seasons, with heavy rainfall during wet periods potentially reducing solar irradiance due to cloud cover and atmospheric moisture. This explains the lower winter production figures when wet season conditions are more prevalent.

Humidity and Dust: High humidity levels common in tropical regions can lead to moisture accumulation on panels, while dust and debris can build up on panel surfaces, particularly during drier periods.

Vegetation Growth: The favorable growing conditions in tropical climates mean that nearby vegetation can grow rapidly and potentially create shading issues if not properly managed.

Preventative Measures for Optimal Performance

• Regular cleaning schedules: Implement frequent panel cleaning, especially during transition periods between wet and dry seasons
• Proper drainage design: Ensure installation includes adequate drainage to prevent water pooling around equipment
• Strategic positioning: Site panels away from areas where vegetation could create future shading problems
• Quality mounting systems: Use corrosion-resistant mounting hardware suitable for humid tropical conditions
• Vegetation management: Establish regular trimming schedules for nearby trees and shrubs

Despite these considerations, Santa Maria de Itabira's consistent solar resource makes it an excellent location for solar energy generation. The relatively small seasonal variation in output, with winter production still reaching about 81% of peak summer levels, demonstrates the location's reliability for solar power throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

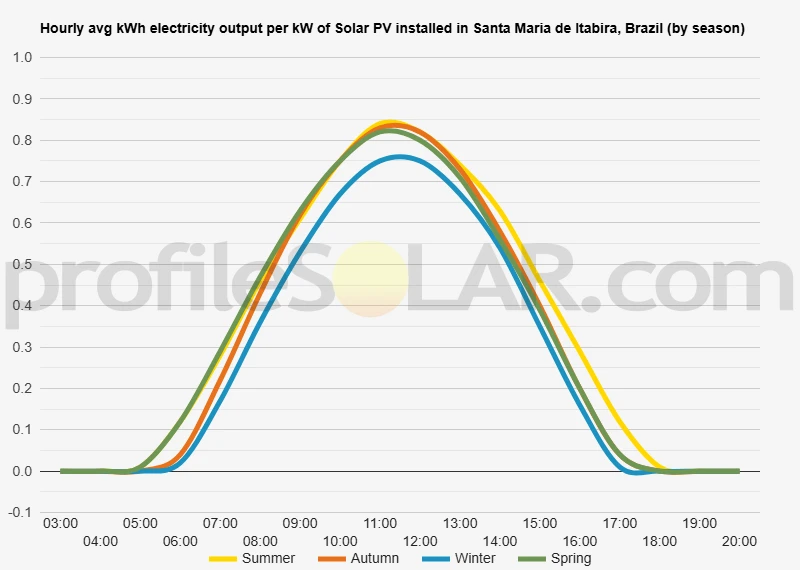

Solar output per kW of installed solar PV by season in Santa Maria De Itabira

Seasonal solar PV output for Latitude: -19.4359, Longitude: -43.0684 (Santa Maria De Itabira, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Santa Maria De Itabira, Brazil

To maximize your solar PV system's energy output in Santa Maria De Itabira, Brazil (Lat/Long -19.4359, -43.0684) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Santa Maria De Itabira, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Santa Maria De Itabira, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	25° North in Autumn	35° North in Winter	13° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Santa Maria De Itabira, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Santa Maria De Itabira, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Santa Maria De Itabira, Brazil

Topographical Features of Santa Maria de Itabira

Santa Maria de Itabira sits within the rolling highlands of Minas Gerais state in southeastern Brazil, positioned in the mineral-rich region known as the Iron Quadrilateral. The terrain around this municipality is characterized by undulating hills and gentle ridges that rise and fall across the landscape, creating a distinctive topographical pattern typical of the Brazilian Shield geological formation. The elevation in and around Santa Maria de Itabira varies considerably, with the town itself positioned at approximately 850 meters above sea level. The surrounding countryside features a series of rounded hills and broad valleys, many of which have been shaped by centuries of erosion acting upon the ancient crystalline rocks that form the foundation of this region. These hills rarely present steep faces, instead displaying gradual slopes that transition smoothly from one elevation to another. The area's topography has been significantly influenced by mining activities, particularly iron ore extraction, which has created both excavated areas and artificial elevated zones where mining waste has been deposited. These human modifications to the natural landscape have resulted in large, relatively flat areas that contrast with the naturally rolling terrain.

Drainage and Valley Systems

Several small streams and tributaries flow through the region, creating shallow valleys that cut through the highland terrain. These waterways generally follow north-south orientations, flowing toward larger river systems that eventually connect to the São Francisco River basin. The valleys are typically broad and gentle rather than deeply incised, contributing to the overall moderate relief of the area. The drainage patterns have created natural terraces and floodplains in some areas, though these are generally narrow due to the relatively small size of the local watercourses. During the wet season, these areas may experience temporary flooding, but the well-drained nature of the elevated terrain means that most of the landscape remains dry and stable throughout the year.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Santa Maria de Itabira would be the extensive flat to gently sloping areas created by mining operations. These zones offer several advantages: they have already been cleared of vegetation, possess stable foundations, and provide large contiguous spaces that can accommodate substantial solar arrays without requiring significant terrain modification. The broad ridge tops and plateau areas that occur naturally throughout the region also present excellent opportunities for solar development. These elevated positions typically feature gentle slopes of less than 5 degrees and offer good exposure to sky without significant shading from surrounding hills. The consistent elevation of these ridge systems means that large installations can be designed with uniform panel orientations across extensive areas. Former mining areas that have been rehabilitated or are no longer in active use represent particularly attractive sites. These locations often feature engineered flat surfaces that were created for industrial operations, making them ideal for solar panel installation with minimal site preparation required. The compacted soils in these areas also provide stable foundations for mounting systems. The broad valley floors, while generally suitable for solar installations, would require careful consideration of drainage patterns and potential flooding during wet periods. However, many of these areas offer large expanses of relatively flat terrain that could support significant solar capacity if properly engineered to handle seasonal water flow. Areas with southern-facing slopes of moderate gradient would also be well-suited for solar development, as they can provide optimal panel orientation while maintaining reasonable installation and maintenance access. The rolling nature of the terrain means that numerous such slopes are available throughout the region, offering flexibility in site selection based on other factors such as grid connection proximity and land availability.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
