Santa Maria, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics, offers varying potential for solar energy generation throughout the year. This location experiences significant seasonal fluctuations in solar electricity production that are important to understand when planning a solar PV installation.

Seasonal Solar Performance

Solar energy production in Santa Maria shows strong seasonal variation. During summer months, panels can generate an impressive 7.55kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.95kWh/day, while autumn yields a moderate 4.77kWh/day. Winter performance drops considerably to 3.37kWh/day per kW installed.

This pattern creates a production ratio of more than 2:1 between the best and worst seasons, with summer generating over twice the electricity of winter months. This seasonal variability means that system sizing should account for these fluctuations to ensure adequate year-round power.

Optimal Installation Angle

For fixed-panel installations in Santa Maria, Rio Grande do Sul, the ideal tilt angle to maximize total year-round production from solar PV is 26 degrees facing North. This specific angle optimizes annual electricity generation by balancing seasonal solar variations, capturing more energy during both high and low production periods throughout the year.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Santa Maria. The region experiences occasional hailstorms that could damage panels if not properly protected. Installing panels with tempered glass and ensuring they meet hail impact resistance standards can mitigate this risk.

Dust and pollen accumulation is another consideration in this agricultural region. Regular cleaning maintenance should be scheduled, particularly after the dry season when dust buildup is most significant. Installing panels at the recommended 26-degree tilt also helps with natural cleaning during rainfall events.

Morning fog can sometimes occur in Santa Maria during winter months, slightly delaying peak production hours. This factor is already reflected in the lower winter production figures and doesn't require specific mitigation beyond proper system sizing.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

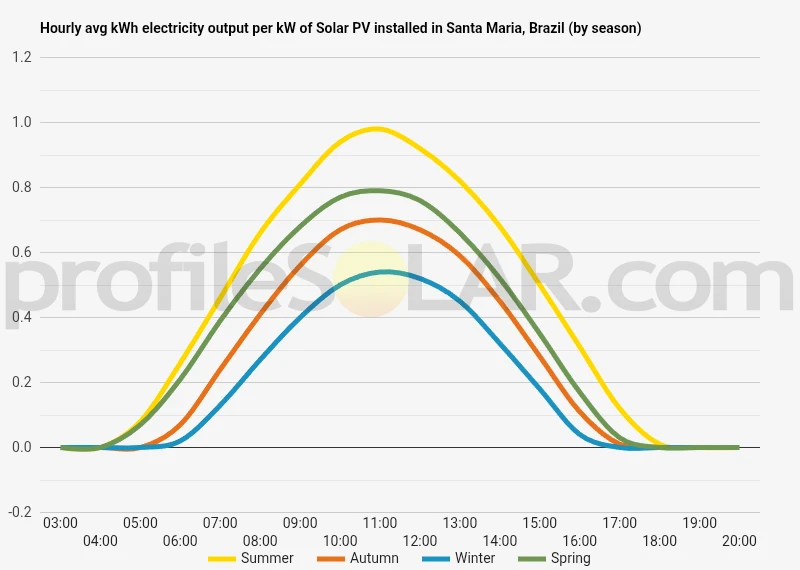

Solar output per kW of installed solar PV by season in Santa Maria

Seasonal solar PV output for Latitude: -29.6842, Longitude: -53.8069 (Santa Maria, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Santa Maria, Brazil

To maximize your solar PV system's energy output in Santa Maria, Brazil (Lat/Long -29.6842, -53.8069) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Santa Maria, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Santa Maria, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Santa Maria, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Santa Maria, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Santa Maria, Brazil

The region around Santa Maria, Brazil, lies within the southern part of the state of Rio Grande do Sul and features a varied topography that transitions between different landform types. Santa Maria itself sits at an elevation of approximately 151 meters above sea level, positioned in what is known as the Central Depression (Depressão Central) of Rio Grande do Sul.

Regional Topographical Features

The landscape surrounding Santa Maria is characterized by a transitional zone between the higher plateau regions to the north and the lower plains to the south. To the north and northeast, the terrain gradually rises toward the Southern Brazilian Highlands (Planalto Meridional), featuring more rugged, undulating hills with elevations reaching several hundred meters. These highlands are part of the Serra Geral formation, a significant geological feature extending through southern Brazil. To the south and southwest of Santa Maria, the topography transitions into more gently rolling plains known as the Pampas. These open grasslands feature lower elevations and fewer significant terrain obstacles, creating expansive, relatively flat areas. The western portions of the region gradually merge with the Uruguayan border landscapes. The area is drained by several river systems, primarily the Ibicuí and Jacuí Rivers and their tributaries, which have carved valleys through the landscape over geological time. These river valleys create localized variations in the topography, with some steeper slopes near watercourses and flatter floodplains adjacent to the rivers.

Suitability for Solar PV Development

For large-scale solar photovoltaic development, the areas south and southwest of Santa Maria offer the most promising conditions from a topographical perspective. These regions, with their gentler slopes and more consistent terrain features, present fewer challenges for the construction and maintenance of large solar arrays. The open Pampas landscapes provide expansive areas where solar installations could be developed with minimal need for extensive terrain modification. The relatively flat plains allow for more uniform solar panel orientation and simplify the installation process. Additionally, these areas typically have fewer natural obstacles that might cast shadows across solar arrays, maximizing potential energy capture throughout the day. By contrast, the more undulating terrain to the north and northeast, while not impossible for solar development, would present greater challenges. The varied topography would require more complex site preparation, potentially increasing construction costs. The hillier regions may also experience more localized shading effects from the terrain itself, potentially reducing overall system efficiency. The river valleys throughout the region present a mixed picture for solar development. While some of the broader floodplains might offer suitable flat terrain, these areas may face increased flooding risks and higher humidity levels that could impact long-term system performance and maintenance requirements. From a purely topographical standpoint, the optimal areas for large-scale solar PV development would be the elevated, gently sloping plains south of Santa Maria, particularly those areas with good drainage that are not prone to flooding. These locations combine favorable terrain characteristics with the natural solar exposure advantages of the region's geographical position.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
