Santa Rosa do Sul, Brazil, located in the Southern Sub Tropics, presents a moderately favorable location for year-round solar energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location shows significant seasonal fluctuation. Summer delivers the strongest performance at 6.96 kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best period with 5.75 kWh per day per kW, offering solid energy production as the region emerges from winter. Autumn sees a decline to 4.53 kWh per day per kW, while winter represents the most challenging period with only 3.25 kWh per day per kW of installed solar capacity. This winter figure is less than half the summer output, highlighting the substantial seasonal variation typical of locations at this latitude.

Optimal Installation Setup

For fixed panel installations at Santa Rosa do Sul, the ideal tilt angle to maximize total year-round solar production is 25 degrees facing North. This angle has been calculated to optimize energy capture across all seasons by accounting for the sun's varying position throughout the year and weighting the angles based on solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors in this coastal southern Brazilian location can impact solar energy generation:

• High humidity and marine environment: The proximity to the Atlantic Ocean creates elevated humidity levels and salt-laden air that can reduce panel efficiency and cause corrosion over time
• Frequent cloud cover: The subtropical climate brings regular cloud formations, particularly during autumn and winter months, which directly reduces solar irradiance
• Seasonal weather patterns: Winter months often experience increased precipitation and overcast conditions that significantly limit solar production
• Salt air corrosion: The coastal location exposes solar installations to salt spray that can degrade electrical connections and panel frames

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented: Regular cleaning schedules become essential due to the humid environment and potential salt buildup on panels. Installing panels with marine-grade aluminum frames and stainless steel mounting hardware will resist corrosion from salt air exposure. Ensuring adequate ventilation around panels helps combat efficiency losses from high humidity, while selecting panels with anti-reflective coatings can help capture more diffuse light during cloudy periods. Electrical connections should use marine-grade sealing to prevent moisture intrusion and corrosion.

Overall Assessment

While Santa Rosa do Sul experiences notable seasonal variations in solar production, the location remains viable for solar energy generation. The strong summer and spring performance can offset the reduced winter output, though system sizing should account for the seasonal fluctuations to ensure adequate energy supply year-round. Proper installation techniques that address the coastal environmental factors will be crucial for long-term system performance and reliability.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

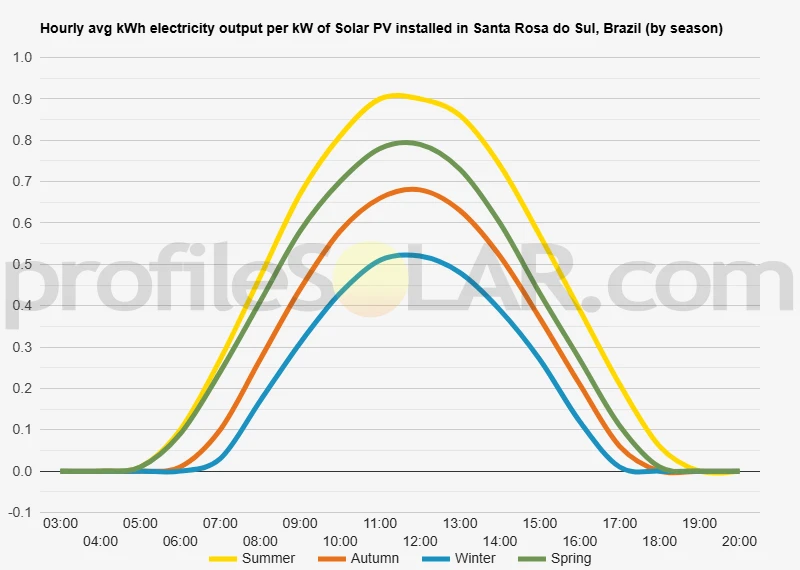

Solar output per kW of installed solar PV by season in Santa Rosa Do Sul

Seasonal solar PV output for Latitude: -29.0954, Longitude: -49.739 (Santa Rosa Do Sul, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Santa Rosa Do Sul, Brazil

To maximize your solar PV system's energy output in Santa Rosa Do Sul, Brazil (Lat/Long -29.0954, -49.739) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Santa Rosa Do Sul, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Santa Rosa Do Sul, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Santa Rosa Do Sul, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Santa Rosa Do Sul, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Santa Rosa Do Sul, Brazil

Topographical Features of Santa Rosa do Sul

Santa Rosa do Sul is located in the southernmost state of Brazil, Rio Grande do Sul, positioned along the Atlantic coastal plain near the border with Uruguay. The region sits within a relatively flat to gently undulating landscape that characterizes much of the coastal lowlands of southern Brazil. The immediate area around Santa Rosa do Sul features predominantly low-lying terrain with elevations typically ranging from sea level to approximately 100 meters above sea level. The topography is characterized by gentle rolling hills interspersed with flat coastal plains and river valleys. These landforms were shaped by centuries of sedimentary deposits and coastal processes, creating a landscape that gradually transitions from the Atlantic Ocean inland toward the higher elevations of the Serra do Sudeste mountain range, which lies further to the west and northwest. The coastal influence is significant in this region, with numerous lagoons, wetlands, and low-lying areas that are subject to seasonal flooding. The terrain becomes slightly more elevated as one moves inland from the coast, but the changes in elevation remain modest throughout the immediate vicinity of Santa Rosa do Sul.

Drainage and Water Features

The area is crossed by several small rivers and streams that flow eastward toward the Atlantic Ocean. These waterways have carved shallow valleys through the landscape, creating a network of gentle depressions and slightly elevated interfluves. The drainage pattern reflects the overall eastward slope of the land toward the ocean, though the gradients are generally quite gentle. Seasonal variations in water levels can affect some of the lower-lying areas, particularly during the wetter months when rivers and streams may overflow their banks. This creates temporary wetlands and affects the suitability of certain areas for development projects.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Santa Rosa do Sul region would be found on the higher, better-drained portions of the coastal plain. These areas offer several advantages including stable ground conditions, reduced risk of flooding, and minimal interference from existing water features. The gently rolling hills that rise 30 to 80 meters above sea level provide ideal conditions for solar installations. These elevated areas offer good drainage while maintaining relatively flat to gently sloping surfaces that can accommodate large arrays without requiring extensive grading or earthwork. The south-facing slopes of these hills would be particularly advantageous for maximizing solar exposure in the southern hemisphere. Areas located several kilometers inland from the immediate coastal zone would be preferable, as they avoid the most flood-prone lowlands while still benefiting from the generally flat topography. The interfluves between the various small river valleys present excellent opportunities for development, as they combine stable, well-drained soils with accessible terrain. The agricultural lands that dominate much of the region also indicate areas with suitable topography for solar development. These farming areas have already been cleared and leveled to some degree, reducing the preparation costs for large-scale installations. The existing road network serving these agricultural areas would facilitate construction and maintenance access for solar facilities. Areas to avoid would include the immediate coastal wetlands, flood-prone river valleys, and any remaining forested areas that might have environmental protection status. The lowest-lying areas near lagoons and seasonal wetlands would present challenges due to unstable soils and periodic inundation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
