Santana de Mangueira, Brazil presents an excellent location for year-round solar energy generation. Located in the tropical region of northeastern Brazil, this area benefits from consistent sunlight throughout the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Output Performance

The solar energy production data for this location shows remarkably consistent performance across most seasons, with one standout period. Winter, autumn, and summer all deliver similar output levels, ranging from 6.03 to 6.28 kWh per day per kW of installed solar capacity. However, spring emerges as the peak production season, generating an impressive 7.43 kWh per day per kW of installed capacity. This spring peak likely coincides with optimal atmospheric conditions - clear skies following the dry season but before the intense heat and potential cloud cover of summer arrives. The relatively small variation between the lowest performing season (winter at 6.03 kWh/day/kW) and the highest (spring at 7.43 kWh/day/kW) demonstrates the location's reliability for consistent solar energy generation throughout the year.

Optimal Panel Installation

For maximum year-round energy production at Santana de Mangueira, solar panels should be installed at a fixed tilt angle of 7 degrees facing north. This relatively shallow angle is typical for locations close to the equator, where the sun passes nearly overhead throughout much of the year.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in this region:

• Dust accumulation: The semi-arid climate of northeastern Brazil means significant dust buildup on solar panels, especially during dry periods
• Seasonal rainfall patterns: While rain can help clean panels, heavy tropical downpours during wet seasons may temporarily reduce output
• High temperatures: Extreme heat can reduce solar panel efficiency, though this is partially offset by excellent solar irradiance
• Humidity and moisture: High humidity levels during certain periods may affect electrical components

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation and maintenance strategies should be implemented: Regular cleaning schedules are essential, particularly during dry seasons when dust accumulation is heaviest. Installing panels with adequate spacing allows for proper air circulation, helping to keep operating temperatures lower and improving efficiency. Choosing high-quality components rated for tropical climates ensures better performance under high temperature and humidity conditions. This includes selecting panels with lower temperature coefficients and using corrosion-resistant mounting systems and electrical components. Proper drainage design around the installation site prevents water pooling during heavy rains, while ensuring electrical systems are well-sealed against moisture intrusion. Installing monitoring systems allows for quick identification of performance issues that may arise from environmental factors. Overall, Santana de Mangueira represents a highly favorable location for solar energy generation, with consistent output year-round and excellent spring peak performance. With proper installation techniques and regular maintenance to address local environmental challenges, solar installations in this location can achieve outstanding long-term energy production results.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

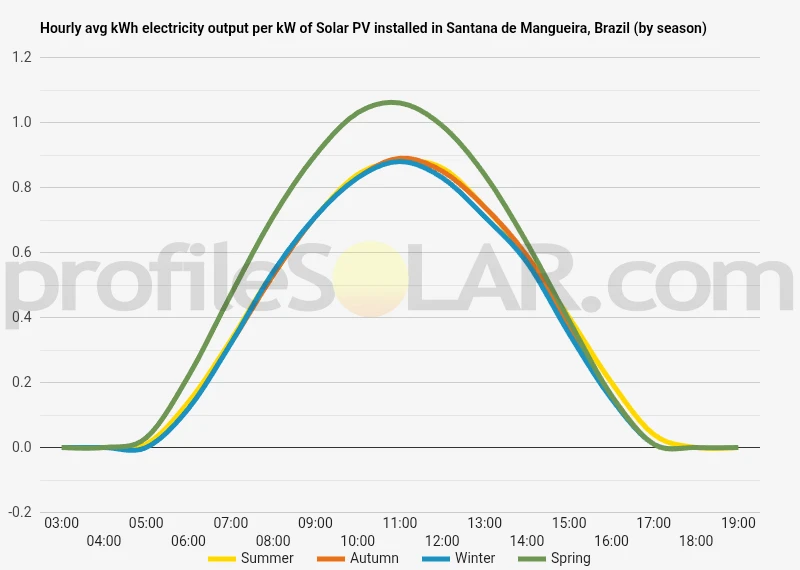

Solar output per kW of installed solar PV by season in Santana De Mangueira

Seasonal solar PV output for Latitude: -7.6659, Longitude: -38.3585 (Santana De Mangueira, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Santana De Mangueira, Brazil

To maximize your solar PV system's energy output in Santana De Mangueira, Brazil (Lat/Long -7.6659, -38.3585) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Santana De Mangueira, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Santana De Mangueira, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	14° North in Autumn	23° North in Winter	2° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Santana De Mangueira, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Santana De Mangueira, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Santana De Mangueira, Brazil

Topographical Features of Santana de Mangueira

Santana de Mangueira sits within the semi-arid landscape of Paraíba state in northeastern Brazil, positioned in the Caatinga biome region. The terrain around this municipality is characterized by gently rolling hills and elevated plateaus typical of the Brazilian Northeast's interior highlands. The area forms part of the Borborema Plateau, an ancient geological formation that creates a landscape of moderate elevation changes across the region.

The topography features a series of low ridges and broad valleys, with elevations generally ranging from approximately 400 to 700 meters above sea level. These undulating landforms create natural drainage patterns that flow toward larger river systems, though the semi-arid climate means many waterways remain dry for extended periods throughout the year. The terrain is generally stable with gradual slopes rather than steep inclines, making much of the landscape accessible for development.

Rock outcroppings and exposed bedrock are common features throughout the region, reflecting the ancient crystalline basement rocks that form the geological foundation. The soil cover tends to be relatively thin in many areas, with patches of deeper sedimentary deposits found in valley bottoms and depression areas where erosional materials have accumulated over time.

Vegetation and Land Use Patterns

The natural vegetation consists primarily of Caatinga scrubland, characterized by drought-resistant shrubs, cacti, and small trees that have adapted to the semi-arid conditions. This sparse vegetation cover means that much of the landscape has relatively low visual obstruction, creating expansive open areas with clear sight lines across the terrain.

Agricultural activities in the region focus mainly on livestock grazing and small-scale farming, with large portions of land remaining in natural or semi-natural states. The existing land use patterns result in extensive areas of relatively undeveloped terrain that could potentially accommodate large infrastructure projects without significant displacement of intensive agricultural operations.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be the elevated plateau areas and gentle hillsides that offer several key advantages. These higher elevation zones typically provide excellent exposure to solar radiation while maintaining relatively flat or gently sloping terrain that minimizes construction and installation challenges.

The broad valley floors and mesa-like formations scattered throughout the region present particularly attractive opportunities for solar development. These areas combine accessible terrain with minimal vegetation clearing requirements, as the natural Caatinga cover is already sparse. The stable geological conditions of the crystalline basement rocks provide solid foundations for mounting systems and related infrastructure.

Areas with southern and southeastern exposures on the gentle slopes would be especially well-suited, as they can capture optimal solar angles throughout the day. The relatively low population density and limited competing land uses in much of the surrounding region mean that large contiguous areas could potentially be developed without significant social or economic disruption to local communities.

Transportation access represents another important consideration, and areas within reasonable distance of existing roads and the municipal center would offer logistical advantages for construction and maintenance activities. The terrain's gentle gradients mean that access roads could be developed without excessive grading or environmental disturbance in most locations throughout the region.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
