Santana do Livramento, Brazil, located in the Southern Sub Tropics at latitude -30.782 and longitude -55.4785, offers varying potential for solar energy production throughout the year. This border city experiences significant seasonal fluctuations in solar electricity generation.

Seasonal Solar Production

Solar panels in Santana do Livramento perform best during summer months, generating an impressive 7.88 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 6.22 kWh/day. Production decreases considerably during autumn (4.79 kWh/day) and reaches its lowest point in winter (3.33 kWh/day).

This seasonal pattern creates more than a 2.3-fold difference between the best and worst seasons for solar generation, with summer producing approximately 137% more electricity than winter months. The substantial drop during cooler months means solar installations here will have periods of significantly reduced output.

Optimal Panel Installation

For fixed solar panel installations in Santana do Livramento, the ideal tilt angle to maximize year-round production is 26 degrees facing North. This specific angle optimizes the total annual electricity generation by balancing seasonal variations in the sun's position.

Environmental and Weather Considerations

Several factors may impact solar production in this location:

• The region experiences occasional dust storms from the nearby pampas, which can coat panels and reduce efficiency if not regularly cleaned.
• Hailstorms, though infrequent, can potentially damage panels without proper protective measures.
• Temperature extremes during summer can slightly reduce panel efficiency when modules overheat.

To mitigate these challenges, installation best practices include:

• Implementing automated or scheduled cleaning systems to remove dust accumulation
• Using hail-resistant panels or protective covers during storm seasons
• Ensuring adequate airflow beneath panels to reduce temperature-related efficiency losses
• Installing panels with sufficient spacing to prevent shadowing, particularly important during winter months when the sun is lower in the sky

Overall, Santana do Livramento offers good potential for solar energy production, particularly during summer and spring, though winter output will be significantly reduced. With proper installation techniques addressing the local environmental factors, solar PV systems can be a viable energy solution in this Southern Sub Tropical location.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

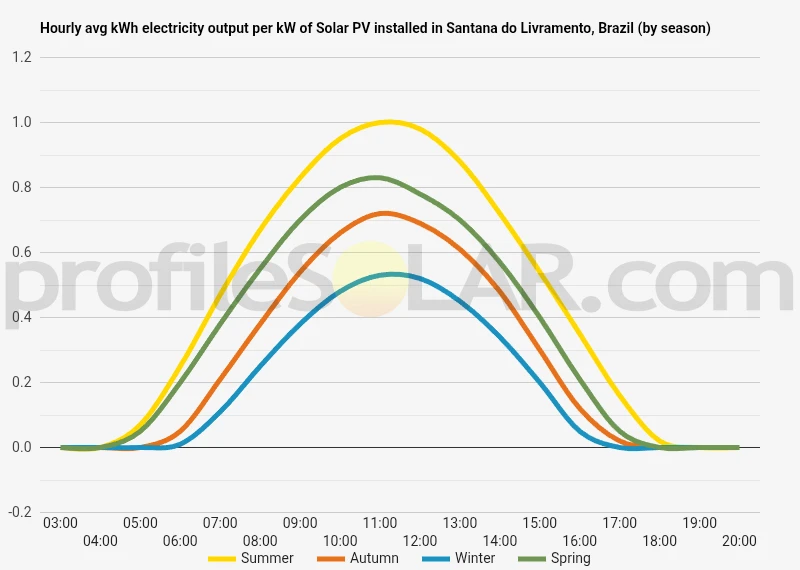

Solar output per kW of installed solar PV by season in Santana Do Livramento

Seasonal solar PV output for Latitude: -30.782, Longitude: -55.4785 (Santana Do Livramento, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Santana Do Livramento, Brazil

To maximize your solar PV system's energy output in Santana Do Livramento, Brazil (Lat/Long -30.782, -55.4785) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Santana Do Livramento, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Santana Do Livramento, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	36° North in Autumn	46° North in Winter	23° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Santana Do Livramento, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Santana Do Livramento, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Santana Do Livramento, Brazil

The landscape surrounding Santana do Livramento in southern Brazil presents a distinctive topographical character defined by gently rolling hills and wide, open plains. Located in the state of Rio Grande do Sul near the Uruguayan border, this region sits within what is locally known as the Campanha Gaúcha or Pampa biome. The terrain features modest elevation changes, with undulating grasslands that create a smooth, wavelike appearance across the horizon.

Regional Topography

The area around Santana do Livramento typically ranges from approximately 200 to 300 meters above sea level. The topography is characterized by soft hills rather than steep mountains, with gradual slopes that create natural drainage patterns toward local river systems. These hills, known locally as "coxilhas," are a defining feature of the landscape, offering subtle elevation changes rather than dramatic relief. The region sits on the edge of the Brazilian Shield, an ancient geological formation that provides stability to the landscape. The soil composition tends toward sandy and clay-based varieties, with rocky outcroppings occasionally visible across the terrain. Several small rivers and streams cut through the landscape, including the Quaraí River which forms part of the border with Uruguay. The natural vegetation consists primarily of grasslands with scattered trees and shrubs, creating an open landscape with excellent exposure to the sky. This pampa ecosystem has relatively few tall forests or dense vegetation that would obstruct sunlight.

Solar PV Suitability

For large-scale solar photovoltaic development, several areas around Santana do Livramento offer particularly favorable conditions. The most suitable locations for solar installations would be: The gently sloping hillsides with southern to northern exposures provide ideal positioning for solar arrays. These areas benefit from consistent sun exposure throughout the day while avoiding the steeper terrain that would complicate construction and maintenance. The elevated plateaus to the east and northeast of the city offer excellent potential for solar development. These relatively flat expanses sit at higher elevations than the surrounding countryside, minimizing potential shadowing effects while providing ample space for large installations. The open grasslands extending toward the Uruguayan border to the south represent another prime area for solar development. These expansive, unobstructed plains allow for efficient layout of solar arrays with minimal site preparation required. The slightly elevated terrain approximately 15-20 kilometers to the northwest of the city center combines favorable topographical features with good access to existing infrastructure. These areas offer a balance of gentle slopes, minimal flooding risk, and proximity to transportation networks. The region's climate complements its topography, with relatively low precipitation compared to other parts of Brazil. The combination of moderate temperatures, limited cloud cover for much of the year, and the open, unobstructed landscape creates favorable conditions for solar energy capture. From a practical development perspective, areas closest to existing transmission infrastructure would reduce connection costs. The relatively sparse population density in the rural areas surrounding Santana do Livramento means that large land parcels could potentially be acquired without significant displacement issues.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
