Santana, Bahia, Brazil represents an excellent location for year-round solar energy generation, with its tropical climate providing consistent sunlight throughout the year and seasonal variations characterized more by wet and dry periods than traditional temperature-based seasons.

Solar Energy Production Performance

The solar energy output at this location demonstrates remarkable consistency across all seasons. Winter produces the lowest output at 6.16 kWh per day per kW of installed capacity, while spring delivers the highest at 6.85 kWh per day per kW. Summer and autumn fall between these ranges at 6.47 and 6.41 kWh per day per kW respectively. This seasonal variation of only 0.69 kWh between the best and worst performing seasons represents exceptional stability for solar energy production. Spring emerges as the optimal season for solar generation, likely due to clearer skies before the onset of wet season weather patterns.

Optimal Panel Installation

For maximum year-round energy production at Santana, Bahia, solar panels should be installed at a fixed tilt angle of 13 degrees facing north. This angle has been calculated to optimize total annual solar output by accounting for the sun's path throughout the year, Earth's elliptical orbit, and the site's specific latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this tropical location:

• Wet season cloud cover: Extended periods of heavy cloud cover during rainy seasons can significantly reduce solar irradiance reaching the panels
• High humidity and moisture: Tropical humidity can lead to moisture buildup on panels and within electrical components
• Dust and debris accumulation: Dry season conditions may cause dust buildup on panel surfaces, reducing efficiency
• Intense UV exposure: Consistent tropical sunlight can accelerate degradation of panel materials and mounting systems

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Enhanced drainage systems: Install panels with adequate spacing and drainage to prevent water pooling and ensure quick drying after rainfall
• Regular cleaning schedules: Establish routine maintenance programs to remove dust, debris, and organic matter that accumulate on panel surfaces
• Weather-resistant components: Use marine-grade or tropical-rated electrical components, inverters, and mounting hardware designed to withstand high humidity and temperature fluctuations
• Proper ventilation: Design installations with adequate air circulation behind panels to prevent overheating and moisture trapped air
• UV-resistant materials: Select mounting systems and electrical conduits specifically rated for intense tropical UV exposure

Despite these considerations, Santana's consistent solar output throughout the year makes it an highly suitable location for solar PV installations, provided proper installation techniques and maintenance protocols are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

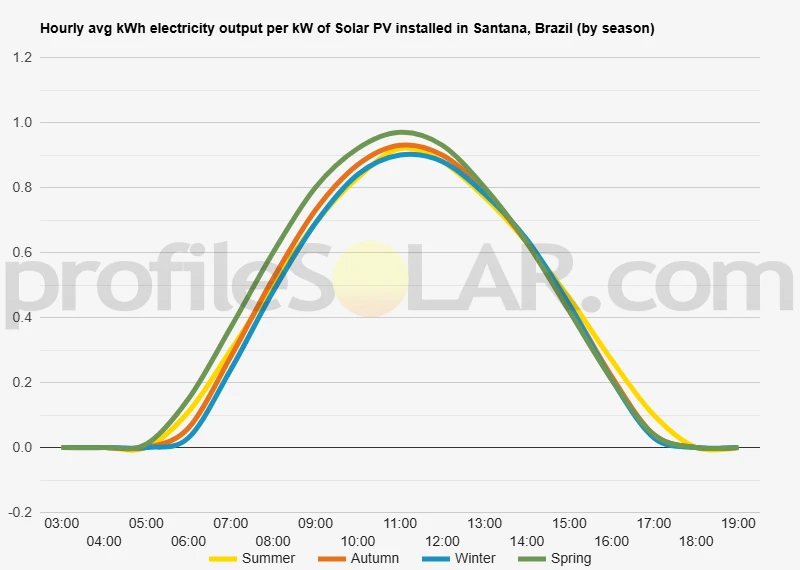

Solar output per kW of installed solar PV by season in Santana

Seasonal solar PV output for Latitude: -13.0894, Longitude: -43.8476 (Santana, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 13° North in Santana, Brazil

To maximize your solar PV system's energy output in Santana, Brazil (Lat/Long -13.0894, -43.8476) throughout the year, you should tilt your panels at an angle of 13° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Santana, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Santana, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 13° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° South in Summer	19° North in Autumn	29° North in Winter	8° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Santana, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Santana, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Santana, Brazil

Topographical Features of Santana, Brazil

Santana is located in the state of Bahia within Brazil's semi-arid interior region, positioned on the elevated plateau known as the Planalto Central. The terrain around this municipality is characterized by gently rolling hills and vast expanses of relatively flat tableland, typical of the Brazilian highlands. The elevation ranges from approximately 400 to 600 meters above sea level, creating a landscape that undulates softly across the horizon without dramatic peaks or deep valleys. The region sits within the Caatinga biome, where the topography has been shaped by millions of years of erosion acting on ancient crystalline rocks. This geological foundation has created a stable, weathered surface with gentle slopes and broad plateaus. The terrain is punctuated by occasional rock outcrops and low ridges, but these features rarely create significant obstacles to development or land use. Drainage patterns in the area follow the natural contours of the land, with seasonal streams and dry creek beds carving shallow channels through the landscape. During the dry season, many of these waterways become intermittent, leaving behind sandy beds that wind through the countryside. The overall topography promotes good natural drainage, preventing waterlogging even during periods of heavier rainfall.

Optimal Areas for Large-Scale Solar Development

The extensive flat to gently sloping plateaus surrounding Santana present excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas are the broad tablelands that stretch for kilometers with minimal elevation changes, requiring little to no grading or earthwork for solar panel installation. These elevated plains offer unobstructed exposure to sunlight throughout the day, with few natural barriers to block solar radiation. The southeastern and southwestern expanses from Santana's center are particularly well-suited for solar development due to their combination of flat terrain and minimal vegetation cover. These areas feature stable soil conditions built on the crystalline basement rock, providing solid foundations for mounting systems and infrastructure. The natural clearing of much of this land for agricultural use has already prepared many sites for potential solar development. Areas with gentle south-facing slopes present additional advantages for solar installations, as the natural tilt can optimize panel positioning for maximum energy capture. The region's low population density means that large tracts of suitable land remain available without the complications of dense residential or commercial development. The proximity to existing agricultural areas also provides benefits, as much of the necessary infrastructure including access roads and electrical connections may already be established. The flat terrain facilitates easy construction and maintenance access, while the stable geological conditions minimize concerns about ground movement or foundation issues that might affect solar installations over their operational lifetime.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
