Solar Energy Potential in Santiago, Rio Grande do Sul, Brazil

Santiago, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics, offers varying potential for solar PV energy generation throughout the year. The location experiences significant seasonal fluctuations in solar energy production that potential solar installers should consider. During summer, Santiago demonstrates excellent solar energy potential with an average daily output of 7.70kWh per kW of installed capacity. This makes summer the prime season for solar generation at this location. Spring follows as the second most productive season, yielding 6.03kWh per day for each kW installed. The productivity drops considerably during autumn, with daily generation averaging 4.76kWh per kW installed. Winter presents the greatest challenge for solar energy production in Santiago, Rio Grande do Sul, with output falling to just 3.43kWh per day per kW installed, less than half of the summer production. For fixed solar panel installations in Santiago, Rio Grande do Sul, the ideal tilt angle to maximize year-round energy production is 25 degrees facing North. This specific angle optimizes the panels' exposure to the sun throughout the year, accounting for Santiago's position in the Southern Hemisphere.

Environmental and Weather Considerations

Several factors may impact solar production in Santiago. The significant seasonal variation indicates that winter months will produce substantially less energy, requiring appropriate system sizing to meet year-round needs. This seasonal disparity is important to consider when planning a solar installation's capacity. Dust accumulation can be a concern in this subtropical region. Implementing a regular cleaning schedule for panels, especially during drier periods, can help maintain optimal efficiency. Additionally, installing panels with self-cleaning properties or at an angle that facilitates natural cleaning during rainfall can minimize maintenance requirements. Temperature is another consideration, as excessive heat can reduce solar panel efficiency. Ensuring adequate airflow beneath panels through proper mounting techniques can mitigate this effect and maintain higher production levels, particularly during the hot summer months when generation potential is highest. By accounting for these factors and implementing appropriate design considerations, solar PV systems in Santiago can effectively capitalize on the strong summer and spring production periods while minimizing the impact of reduced winter output.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

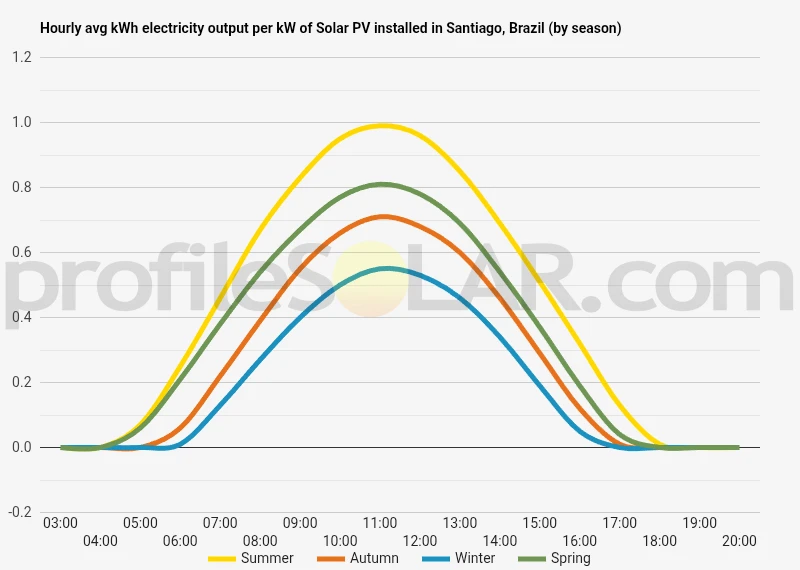

Solar output per kW of installed solar PV by season in Santiago

Seasonal solar PV output for Latitude: -29.1137, Longitude: -54.7336 (Santiago, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Santiago, Brazil

To maximize your solar PV system's energy output in Santiago, Brazil (Lat/Long -29.1137, -54.7336) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Santiago, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Santiago, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	34° North in Autumn	44° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Santiago, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Santiago, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Santiago, Brazil

Santiago, located in the state of Rio Grande do Sul in southern Brazil, is situated in a region with diverse and distinctive topographical features. The terrain around Santiago (coordinates -29.1137, -54.7336) is characterized by gently rolling hills and plateaus that form part of the southern Brazilian highlands. This area represents a transition zone between the more mountainous regions to the east and the flatter pampas grasslands that extend westward into Argentina. The elevation in Santiago averages around 400-500 meters above sea level, creating a moderately elevated landscape. The topography includes numerous small valleys formed by local river systems, primarily the Ibicuí River and its tributaries, which have carved gentle depressions throughout the region. These waterways have shaped the land over millennia, creating a pattern of rounded hills with moderate slopes rather than steep or rugged terrain. Vegetation in the area consists of a mix of grasslands (campos) and patches of subtropical forest. This mosaic pattern reflects both the natural conditions and the history of agricultural development in the region, where much of the original forest cover has been converted to agricultural use.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several nearby areas present favorable conditions. The most suitable locations would be the elevated plateaus and hilltops to the north and east of Santiago. These higher elevation areas benefit from minimal shadowing effects and good exposure to sunlight throughout the day. The gently sloping south-facing hillsides should generally be avoided for solar installations in the Southern Hemisphere, as they receive less direct sunlight. Instead, north-facing slopes with gradients between 5-15 degrees would maximize solar capture efficiency without requiring excessive land preparation. The relatively flat plains extending to the southwest of Santiago also offer excellent potential for solar PV development. These areas provide expansive, uninterrupted spaces that would allow for large contiguous installations without significant topographical challenges. The open nature of this terrain minimizes natural obstacles that could cast shadows on solar panels. Areas to avoid would include the riparian zones along the Ibicuí River and its tributaries, which may be subject to seasonal flooding and typically support more diverse ecosystems that could have conservation value. Additionally, some of the steeper hillsides would present installation challenges and potentially higher costs for site preparation. The soil composition in the region is predominantly clay-loam, providing relatively stable foundation conditions for solar infrastructure. This soil type offers good load-bearing capacity for mounting systems while still allowing for effective management of rainfall runoff, an important consideration for maintaining the integrity of large-scale solar installations over time.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
