Santo Cristo, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics at coordinates -27.7893, -54.6995, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The location shows strong seasonal fluctuations in solar energy production. Summer delivers the highest output at 7.39 kWh per day per kW of installed capacity, making it an excellent period for solar generation. Spring follows as the second-best season with 5.93 kWh per day per kW, while autumn drops to 5.02 kWh per day per kW. Winter presents the most challenging period for solar production, generating only 3.72 kWh per day per kW of installed capacity. This represents roughly half the summer output, which is typical for locations in the Southern Hemisphere's subtropical zone.

Optimal Installation Configuration

For maximum year-round energy production at Santo Cristo, Rio Grande do Sul, solar panels should be installed at a fixed tilt angle of 24 degrees facing North. This angle has been calculated to optimize total annual output by accounting for the sun's varying position throughout the year and weighting for daily solar potential based on irradiance data.

Environmental and Weather Challenges

Several local factors could potentially impact solar production at this Southern Sub Tropical location:

• High humidity levels typical of subtropical climates can reduce panel efficiency and create more frequent condensation issues
• Intense summer storms and potential hail events common in this region of Brazil
• Heavy rainfall during certain seasons that can affect system performance and create drainage challenges
• Dust and pollen accumulation on panels, particularly during drier periods

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate ventilation spacing underneath to reduce heat buildup and humidity-related efficiency losses
• Use tempered glass panels rated for hail resistance and ensure proper mounting systems that can withstand strong winds
• Design drainage systems around panel installations to prevent water pooling and ensure proper runoff during heavy rains
• Plan for regular cleaning schedules and consider installing panels at angles that promote self-cleaning during rainfall
• Select inverters and electrical components with appropriate weather protection ratings for humid subtropical conditions

Overall, while Santo Cristo offers decent solar potential, the significant winter reduction in output and subtropical weather challenges require careful system design and maintenance planning to achieve optimal long-term performance.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

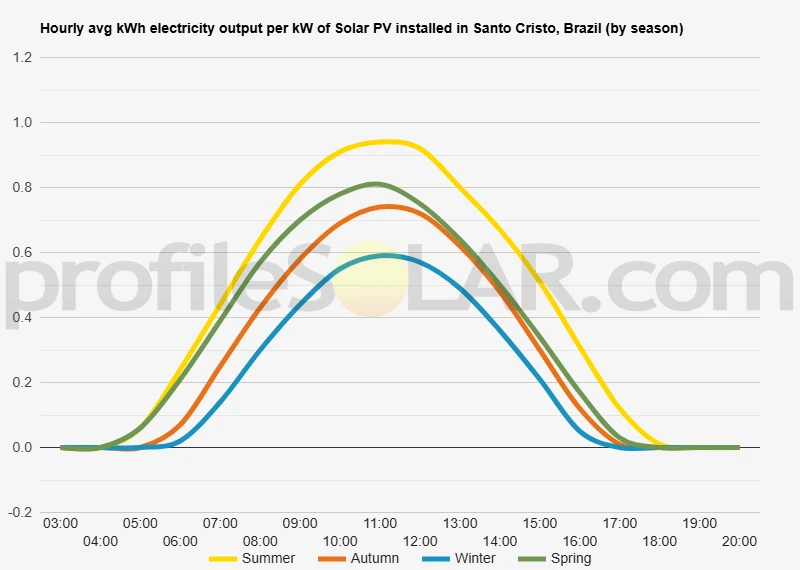

Solar output per kW of installed solar PV by season in Santo Cristo

Seasonal solar PV output for Latitude: -27.7893, Longitude: -54.6995 (Santo Cristo, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Santo Cristo, Brazil

To maximize your solar PV system's energy output in Santo Cristo, Brazil (Lat/Long -27.7893, -54.6995) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Santo Cristo, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Santo Cristo, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	33° North in Autumn	43° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Santo Cristo, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Santo Cristo, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Santo Cristo, Brazil

Santo Cristo is located in the northwestern region of Rio Grande do Sul state in southern Brazil, positioned within a landscape characterized by gently rolling hills and expansive agricultural plains. The area sits at an elevation of approximately 200 to 300 meters above sea level, forming part of the broader Planalto Rio-Grandense plateau that extends across much of the state's interior.

The topography around Santo Cristo features predominantly gentle slopes and undulating terrain, with occasional steeper inclines where the landscape transitions between different elevation zones. This region represents a transitional area between the higher elevations of the Serra Geral mountain range to the east and the lower-lying areas that extend toward the Uruguay River valley to the west. The terrain is generally well-drained, with numerous small streams and tributaries flowing through the landscape, creating a network of shallow valleys separated by low ridges and hills.

Agricultural Landscape and Land Use

The surrounding countryside is dominated by large-scale agricultural operations, primarily focused on soybean and corn cultivation, along with cattle ranching. These agricultural activities have resulted in extensive cleared areas with minimal tree cover, creating vast open spaces that stretch across the rolling terrain. The landscape is punctuated by farm buildings, grain storage facilities, and the geometric patterns of cultivated fields that follow the natural contours of the land.

Rural roads traverse the area following ridge lines and valley bottoms, connecting scattered farmsteads and small rural communities. The road network generally follows the most practical routes across the undulating terrain, often running along watershed divides or following the gentler slopes of valley sides.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Santo Cristo would be the extensive flat to gently sloping agricultural areas that dominate the regional landscape. These areas offer several advantages, including minimal grading requirements, excellent accessibility via existing rural road networks, and proximity to agricultural infrastructure that could facilitate construction and maintenance activities.

The broad plateau areas extending north and west of Santo Cristo present particularly favorable conditions, where the terrain remains relatively level across large expanses. These areas typically feature slopes of less than five degrees, making them ideal for solar panel installation without requiring significant site preparation or specialized mounting systems to accommodate steep grades.

Ridge-top locations throughout the region also offer excellent potential, as these elevated areas often provide unobstructed exposure to the sky while maintaining relatively gentle slopes along their crests. The ridge systems that run generally north-south through the area could accommodate linear solar installations that follow the natural topographical features.

Areas to avoid for solar development would include the steeper valley sides where erosion control could become problematic, and the immediate floodplains of local streams where seasonal water level variations might affect installations. The more heavily dissected terrain found in certain portions of the region, where numerous small valleys create a more complex topographical pattern, would also present challenges for large-scale solar development due to increased shading potential and more complicated site layouts.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
