Solar Energy Potential in São Leopoldo, Brazil

São Leopoldo, Brazil, located in the Southern Sub Tropics at coordinates -29.7592, -51.1477, offers moderate to good conditions for solar PV energy generation throughout the year, though with significant seasonal variations. The solar energy production in São Leopoldo follows a clear seasonal pattern. Summer months are the most productive, generating approximately 7.25kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.79kWh/day, while autumn yields 4.61kWh/day. Winter shows the lowest production at 3.23kWh/day per kW installed. This seasonal variation means that a solar system in São Leopoldo will produce more than twice as much energy in summer compared to winter. However, the location still maintains reasonable production year-round, making it suitable for solar PV installations.

Optimal Panel Installation

For maximizing solar energy production in São Leopoldo, fixed solar panels should be installed at a tilt angle of 26 degrees facing North. This specific angle has been calculated to optimize the year-round solar energy capture, taking into account the location's latitude and the seasonal variations in the sun's position.

Environmental and Weather Considerations

Several factors may affect solar production in São Leopoldo:

• Rainfall and humidity: The region experiences significant rainfall throughout the year, which can temporarily reduce solar output during storms.
• Cloud cover: Particularly during winter months, increased cloud cover contributes to the lower production figures.
• Dust and pollution: Being in an urban/industrial area, air pollution and dust accumulation on panels can reduce efficiency over time.

To mitigate these challenges, solar installations in São Leopoldo should include:

• Regular cleaning schedules to remove dust and debris
• Quality inverters that perform well in variable light conditions
• Slightly oversized systems to compensate for the winter production drop
• Weather-resistant components suitable for the subtropical climate

Despite these considerations, São Leopoldo's location provides sufficient solar resource to make PV installations economically viable, especially when properly designed with the correct orientation and tilt angle to maximize the available solar resource.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

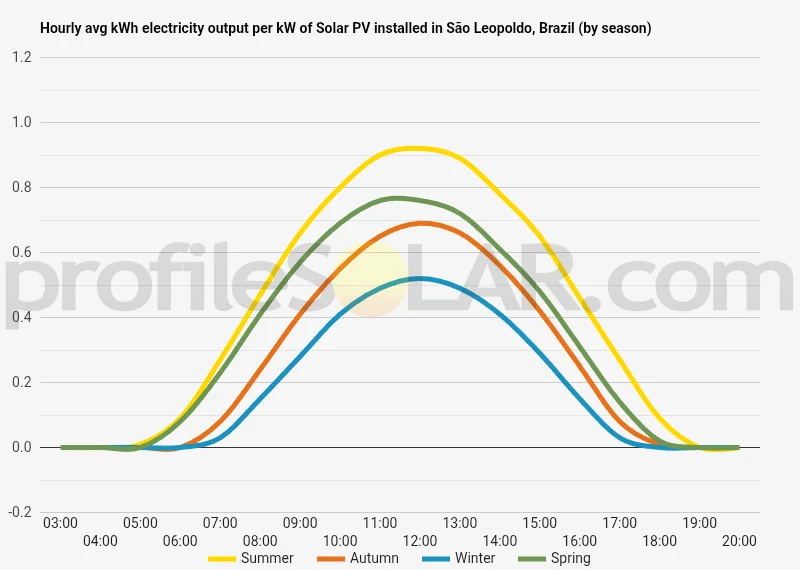

Solar output per kW of installed solar PV by season in Sao Leopoldo

Seasonal solar PV output for Latitude: -29.7592, Longitude: -51.1477 (Sao Leopoldo, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Sao Leopoldo, Brazil

To maximize your solar PV system's energy output in Sao Leopoldo, Brazil (Lat/Long -29.7592, -51.1477) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sao Leopoldo, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sao Leopoldo, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sao Leopoldo, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sao Leopoldo, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sao Leopoldo, Brazil

São Leopoldo is situated in the state of Rio Grande do Sul in southern Brazil, nestled within the lower portion of the Sinos River valley. This region presents a diverse topographical landscape characterized by a transition from lowland floodplains to rolling hills. The city itself sits at an elevation of approximately 26 meters above sea level, with the terrain gradually rising toward the east and northeast.

Valley and Floodplain Features

The western portions of São Leopoldo feature relatively flat terrain associated with the Sinos River floodplain. This lowland area has historically been prone to periodic flooding, with much of the original urban development concentrated on slightly elevated ground. The floodplain extends through neighboring municipalities including Novo Hamburgo to the north and Sapucaia do Sul to the south, creating a continuous lowland corridor.

Eastern Hills and Elevations

Moving eastward from the city center, the landscape transitions to more undulating terrain with modest hills that gradually increase in elevation. These eastern highlands form part of the Serra Geral geological formation, representing the beginning of the escarpment that rises more dramatically further east. The highest elevations near São Leopoldo reach approximately 300 meters above sea level in the northeastern sectors.

Hydrological Features

The Sinos River (Rio dos Sinos) is the dominant hydrological feature, flowing from northeast to southwest through the municipality. This river has shaped the valley over geological time, creating the characteristic lowland corridor flanked by higher ground. Several smaller tributaries and streams dissect the landscape, particularly in the more elevated eastern regions.

Vegetation and Land Use

The natural vegetation of the region consists primarily of Atlantic Forest remnants, though much has been cleared for agriculture, pasture, and urban development. The remaining forest patches tend to be concentrated on steeper slopes and areas less suitable for development. The flatter western areas have been extensively modified for urban and industrial use.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near São Leopoldo would be the gently sloping terrain in the eastern and northeastern sectors of the municipality and adjacent areas. These locations offer several advantages: The modest hills provide good solar exposure with minimal shadowing effects from surrounding terrain. Many of these areas face northward (toward the equator in the southern hemisphere), maximizing solar radiation capture throughout the year. The slightly elevated position reduces the risk of flooding compared to the western lowlands. The rural areas east of São Leopoldo, extending toward municipalities like Dois Irmãos and Ivoti, contain agricultural lands on gentle slopes that could be repurposed for solar installations. These locations combine favorable topography with proximity to existing transmission infrastructure along the developed corridor of the Sinos Valley. Areas to avoid would include the immediate floodplain of the Sinos River, where periodic inundation poses risks to infrastructure, and the steepest hillsides where installation costs would be prohibitive and environmental impacts more severe. The remaining forest patches should also be preserved for their ecological value. The transitional zones between the valley floor and steeper hillsides offer a compromise between accessibility, solar exposure, and development costs. These areas, particularly those with northwestern to northeastern aspects, would likely provide optimal conditions for large-scale solar PV development while minimizing environmental impacts and construction challenges.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.
