Segredo, Rio Grande do Sul, Brazil presents a moderately favorable location for year-round solar photovoltaic energy generation, though with significant seasonal variations typical of its southern subtropical climate.

Seasonal Solar Performance

The solar energy output at this location shows considerable fluctuation throughout the year. Summer delivers the strongest performance at 7.29 kWh per day per kW of installed solar capacity, making it the optimal season for solar generation. Spring follows as the second-best period with 5.78 kWh per day per kW, while autumn drops to 4.68 kWh per day per kW. Winter presents the most challenging conditions for solar generation, producing only 3.29 kWh per day per kW of installed capacity. This represents less than half the summer output, which is typical for locations at this latitude in the Southern Hemisphere.

Optimal Panel Configuration

For fixed solar panel installations at Segredo, Rio Grande do Sul, the ideal tilt angle is 25 degrees facing north to maximize total year-round energy production. This angle has been calculated to optimize solar capture across all seasons by accounting for the sun's varying position throughout the year and weighting the angles based on solar irradiance data.

Environmental and Weather Challenges

Several local factors at this southern subtropical location could potentially impact solar energy production:

• Seasonal cloud cover and precipitation patterns, particularly during winter months when solar output is already at its lowest
• High humidity levels typical of subtropical climates, which can reduce panel efficiency and promote dust and debris accumulation
• Potential for severe weather events including hailstorms and strong winds common in southern Brazil
• Morning fog and mist formation, which can delay peak solar generation during certain seasons

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate ventilation spacing to prevent overheating in humid conditions
• Use tempered glass panels rated for hail resistance and secure mounting systems designed for high wind loads
• Implement regular cleaning schedules to remove dust, pollen, and debris that accumulate more readily in humid environments
• Consider micro-inverters or power optimizers to minimize the impact of partial shading from morning fog or passing clouds
• Ensure proper drainage around panel installations to prevent water pooling and potential electrical issues

While Segredo's location offers reasonable solar potential, the significant seasonal variation means that energy storage or grid-tied systems would be essential for consistent year-round power supply. The winter months particularly require careful energy management planning due to the substantially reduced solar output during this period.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

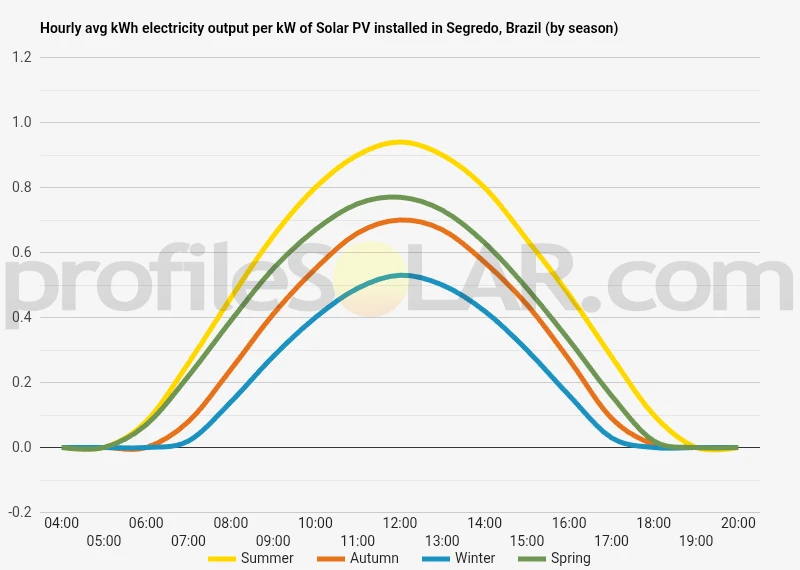

Solar output per kW of installed solar PV by season in Segredo

Seasonal solar PV output for Latitude: -29.3007, Longitude: -52.9246 (Segredo, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Segredo, Brazil

To maximize your solar PV system's energy output in Segredo, Brazil (Lat/Long -29.3007, -52.9246) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Segredo, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Segredo, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	44° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Segredo, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Segredo, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Segredo, Brazil

Topographical Features of the Segredo Region

The area around Segredo in Rio Grande do Sul, Brazil, is characterized by gently rolling hills and relatively modest elevation changes typical of the southern Brazilian highlands. This region sits within the broader context of the Serra Geral formation, though at a more subdued topographical expression compared to areas closer to the coast. The landscape consists of undulating terrain with gradual slopes that rarely exceed steep gradients, making it generally accessible for development and infrastructure projects. The local topography features a mix of agricultural lands, pastures, and scattered forest remnants, with elevation changes that create natural drainage patterns flowing toward regional river systems. The terrain is predominantly composed of sedimentary rock formations overlain with fertile soils that have supported agricultural activities for generations. Small valleys and gentle ridgelines create a mosaic of microclimates and varying exposure angles across the landscape.

Drainage and Water Features

The region's hydrology is shaped by several small to medium-sized waterways that meander through the rolling countryside. These watercourses have carved shallow valleys over time, creating natural boundaries and slightly more pronounced topographical features in an otherwise gently undulating landscape. Seasonal water flow patterns and the presence of small reservoirs and farm ponds add to the complexity of site selection considerations for large-scale development projects. The drainage patterns generally follow the natural slope of the land, with water flowing in a northwesterly direction toward larger tributary systems. This creates areas of better and poorer drainage, which can influence both accessibility and foundation requirements for major installations.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations in this region would be the broader hilltops and gentle south-facing slopes that offer stable ground conditions and minimal shading from surrounding terrain features. These elevated areas typically provide consistent exposure to solar radiation throughout the day while avoiding the potential complications of valley locations where morning fog or moisture retention might be more common. Areas with gradual slopes between five and fifteen degrees would be particularly well-suited, as they allow for optimal panel positioning while maintaining reasonable construction and maintenance access. The rolling nature of the terrain means that careful site selection can take advantage of natural clearings and open agricultural land that already lacks significant tree cover or other obstructions. The relatively stable geological conditions of the region, combined with the moderate topographical relief, create favorable conditions for the substantial infrastructure requirements of large-scale solar installations. Areas away from the immediate vicinity of waterways would be preferable to avoid potential flooding concerns and to take advantage of the slightly higher, better-drained locations that characterize much of the local landscape. Former agricultural lands on the more level portions of the rolling hills would represent prime candidates for solar development, as they often combine adequate size, appropriate slope angles, existing road access, and minimal environmental sensitivity compared to forested or wetland areas.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
