Solar Energy Potential in Serra Negra, São Paulo, Brazil

Serra Negra, São Paulo, Brazil, located in the tropical region at coordinates -22.5814, -46.6919, offers promising conditions for solar PV energy generation throughout the year. This location benefits from the typical tropical climate characteristics, where seasonal variations are more defined by wet and dry periods rather than extreme temperature differences. The solar energy production potential shows consistent output across all seasons, with some natural variation. During summer months, the location yields its highest production at 6.62kWh per day for each kilowatt of installed solar capacity. Spring follows as the second most productive season with 6.08kWh/day. Autumn sees a moderate decrease to 5.49kWh/day, while winter represents the annual low point with 4.83kWh/day per kilowatt installed. For maximizing year-round solar energy production in Serra Negra, São Paulo, fixed solar panels should be installed at a tilt angle of 21 degrees facing North. This specific angle has been calculated to optimize annual energy harvest based on the location's position relative to the sun's path throughout the year.

Seasonal Considerations

The seasonal data reveals that Serra Negra experiences approximately 37% higher solar production in summer compared to winter. This difference is significant but not extreme, indicating reliable year-round production potential. The gradual transition between seasons also means that energy planning can be more predictable than in locations with more dramatic seasonal variations. Summer and spring represent the prime solar harvesting periods in Serra Negra, São Paulo, making these seasons ideal for generating surplus energy that could potentially be stored for use during the less productive autumn and winter months.

Environmental and Weather Factors

Several environmental factors could potentially impact solar production in Serra Negra:

• Seasonal rainfall patterns typical of tropical regions may reduce solar efficiency during the wet season due to increased cloud cover
• Dust and pollen accumulation, particularly during dry periods, can gradually diminish panel efficiency if not addressed
• High humidity levels common in tropical areas can occasionally cause condensation on panels in early morning hours

To mitigate these challenges, solar installations in Serra Negra would benefit from several preventative measures. Regular cleaning schedules should be implemented, particularly before and after the rainy season. Installing panels at the recommended 21-degree tilt not only optimizes sun exposure but also facilitates natural cleaning during rainfall events. Additionally, quality inverters with high humidity tolerance ratings should be selected, and protective housing for electrical components is advisable. The relatively consistent solar production across seasons makes Serra Negra a favorable location for solar PV systems, especially when compared to regions with more extreme seasonal variations. With proper installation techniques and maintenance, solar energy systems in this location can provide reliable power generation throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

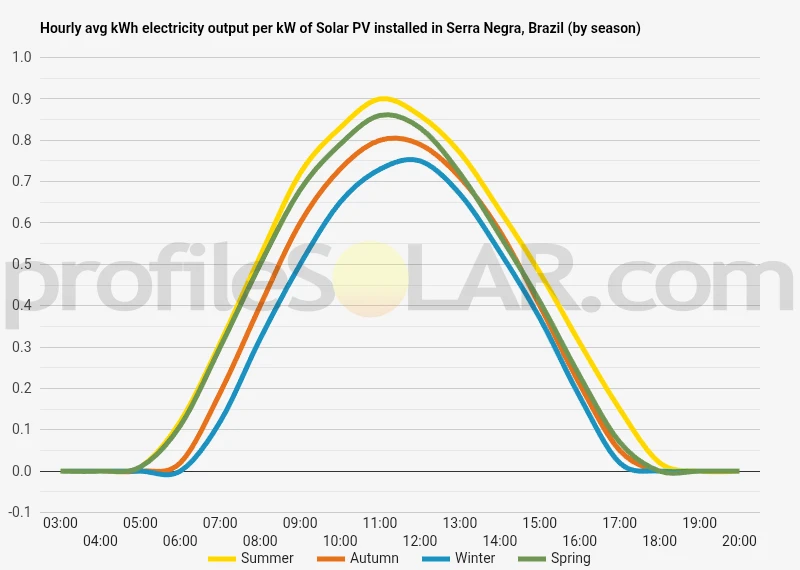

Solar output per kW of installed solar PV by season in Serra Negra

Seasonal solar PV output for Latitude: -22.5814, Longitude: -46.6919 (Serra Negra, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Serra Negra, Brazil

To maximize your solar PV system's energy output in Serra Negra, Brazil (Lat/Long -22.5814, -46.6919) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Serra Negra, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Serra Negra, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Serra Negra, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Serra Negra, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Serra Negra, Brazil

The topography around Serra Negra, Brazil presents a varied and undulating landscape characteristic of the southeastern region of the country. Located in the state of São Paulo, Serra Negra sits within the Mantiqueira Mountain Range, a significant geological formation that extends through portions of São Paulo, Minas Gerais, and Rio de Janeiro states. The terrain in this area is predominantly characterized by rolling hills, steep slopes, and elevated plateaus with elevations ranging approximately between 900 and 1,300 meters above sea level. The name "Serra Negra" itself translates to "Black Mountain Range," reflecting the dense vegetation that historically covered these highlands, giving them a dark appearance when viewed from a distance. The topography features numerous valleys carved by river systems that have shaped the landscape over millennia. These waterways have created natural drainage patterns throughout the region, resulting in a series of ridges and depressions that define the local geography.

Distinctive Topographical Features

The area around Serra Negra exhibits classic features of Brazil's Atlantic Plateau region. The terrain becomes increasingly rugged toward the east, where the Mantiqueira Mountains rise more prominently. To the west, the landscape gradually transitions to gentler slopes and broader valleys. This topographical variation creates distinct microclimates throughout the region, influencing vegetation patterns and land use possibilities. Natural springs are abundant in the Serra Negra region, a direct result of its favorable geological structure and elevation. These springs have historically contributed to the area's development as a health tourism destination. The porous rock formations allow for significant groundwater accumulation, which emerges at various points along the hillsides.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installation, several nearby areas offer promising conditions based on topographical considerations. The western portions of the Serra Negra region, where the terrain flattens somewhat and opens into broader valleys, present the most suitable locations for extensive solar arrays. These areas provide more consistent surface angles and require less extensive land modification for installation. The gently sloping plateaus found to the southwest of Serra Negra's center offer particularly favorable conditions. These elevated flat areas receive consistent solar exposure throughout the day without significant shadowing from nearby mountains. The stable soil composition in these plateau regions also provides solid foundation conditions for solar infrastructure without excessive preparation costs. Areas to avoid would include the steeper eastern slopes of the Mantiqueira range, where installation would be technically challenging and environmental impact potentially more significant. The deeply cut valleys throughout the region also present limitations due to reduced direct sunlight exposure and increased morning or afternoon shadowing from surrounding elevations.

Topographical Considerations for Solar Implementation

When evaluating specific sites around Serra Negra for solar development, several topographical factors merit attention. South-facing slopes (in the Southern Hemisphere) should generally be avoided as they receive less direct sunlight. The north-facing gentle inclines, particularly those with 5-15 degree slopes, often represent optimal positioning for fixed solar arrays in this latitude. Elevation changes across potential installation sites require careful assessment, as uniform surfaces reduce installation complexity and maintenance challenges. The higher plateau areas also benefit from slightly cooler average temperatures compared to lowland regions, which can improve photovoltaic efficiency as solar panels typically perform better in cooler conditions while still receiving abundant sunlight. Drainage patterns must factor into site selection, as the region experiences seasonal rainfall variation. Areas with natural drainage capabilities help minimize erosion risks and foundation stability concerns for large-scale installations. The well-drained soils of the plateau regions generally provide better long-term stability for ground-mounted systems compared to valley floors where water accumulation may occur.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
