Serra da Saudade, Brazil presents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropical region at coordinates -19.3836, -45.8018, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic changes in solar availability.

Solar Energy Output Performance

The solar energy production data reveals strong and consistent performance across all seasons. Summer delivers the highest output at 6.34 kWh per day per kW of installed solar capacity, followed closely by spring at 6.18 kWh/day. Even during the lowest-producing season of winter, the location still generates a respectable 5.39 kWh/day per kW, while autumn produces 5.94 kWh/day. This relatively small seasonal variation from 5.39 to 6.34 kWh/day demonstrates the location's reliability for solar energy production. The difference between peak and minimum production is only about 15%, which is excellent for maintaining consistent energy output throughout the year.

Optimal Installation Configuration

For maximum year-round solar production at Serra da Saudade, solar panels should be installed at a fixed tilt angle of 19 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation angles at this latitude, determining daily optimal panel positioning, and weighting these angles according to solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at this location, though most can be effectively managed through proper installation practices. The tropical climate brings distinct wet and dry seasons, with the wet season potentially creating challenges through increased cloud cover and frequent rainfall. Heavy rainfall can temporarily reduce solar output, but it also provides a natural cleaning mechanism for solar panels, helping maintain their efficiency by washing away dust and debris. Humidity levels in tropical regions can be consistently high, which may affect electrical components over time if not properly protected. However, modern solar equipment is designed to handle tropical conditions when properly installed with appropriate sealing and ventilation.

Preventative Measures for Optimal Performance

To maximize energy production and system longevity at Serra da Saudade, several installation considerations should be implemented:

• Use marine-grade or tropical-rated electrical components and inverters designed for high humidity environments
• Ensure proper drainage around panel mounting systems to prevent water accumulation
• Install panels with adequate spacing to allow air circulation and prevent overheating
• Use corrosion-resistant mounting hardware suitable for tropical climates
• Implement proper grounding and surge protection due to potential lightning activity during wet seasons

Regular maintenance becomes particularly important in tropical locations. While the frequent rainfall helps keep panels clean, periodic professional cleaning and inspection should be scheduled to remove any stubborn debris and check for weather-related wear on electrical connections and mounting systems. The consistent solar resource availability at Serra da Saudade makes it an excellent location for solar energy investment, with proper installation techniques ensuring reliable performance despite the tropical climate challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

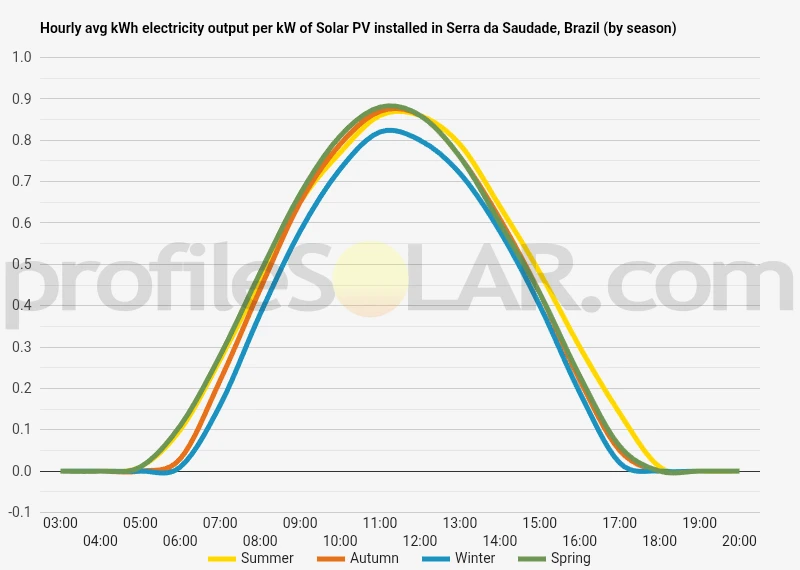

Solar output per kW of installed solar PV by season in Serra Da Saudade

Seasonal solar PV output for Latitude: -19.3836, Longitude: -45.8018 (Serra Da Saudade, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Serra Da Saudade, Brazil

To maximize your solar PV system's energy output in Serra Da Saudade, Brazil (Lat/Long -19.3836, -45.8018) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Serra Da Saudade, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Serra Da Saudade, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	25° North in Autumn	35° North in Winter	13° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Serra Da Saudade, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Serra Da Saudade, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Serra Da Saudade, Brazil

Topographical Features of Serra da Saudade

Serra da Saudade sits within the mountainous landscape of central Minas Gerais, characterized by rolling hills, elevated plateaus, and moderate relief typical of the Brazilian Highlands. The region forms part of the Espinhaço Mountain Range system, where elevations generally range from 800 to 1,200 meters above sea level. The terrain consists of undulating topography with gentle to moderate slopes, interspersed with flatter highland areas that provide natural platforms for development. The local landscape features a combination of rounded hilltops, broad valleys, and plateau-like formations created by ancient geological processes. Drainage patterns follow the natural contours, with small streams and seasonal watercourses flowing through the valleys between elevated areas. The soil composition includes weathered crystalline rocks and sedimentary formations, creating a stable foundation across much of the region.

Climate and Environmental Conditions

The area experiences a tropical highland climate with distinct wet and dry seasons. The elevated position moderates temperatures throughout the year, creating favorable conditions for outdoor installations. The dry season typically extends from May through September, characterized by clear skies and minimal precipitation. During the wet season from October through April, afternoon thunderstorms are common, though morning and early afternoon periods often remain clear. Vegetation in the region consists primarily of cerrado savanna, with grasslands, scattered trees, and gallery forests along watercourses. This relatively open landscape reduces shading concerns and provides good access for maintenance activities. Wind patterns are generally moderate, influenced by the highland topography and seasonal weather systems.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations lie on the elevated plateaus and gently sloping highland areas surrounding Serra da Saudade. These plateau regions offer several key advantages including relatively flat terrain that minimizes grading requirements, stable geological conditions, and minimal risk of flooding during the rainy season. Areas with south-facing slopes of 5 to 15 degrees provide excellent orientation for solar panels while maintaining manageable construction conditions. The higher elevation zones, particularly those above 1,000 meters, benefit from clearer atmospheric conditions and cooler operating temperatures that can improve panel efficiency. The broad valley floors between hill systems also present opportunities for development, particularly where they feature gentle gradients and adequate drainage. These areas often provide larger contiguous spaces suitable for utility-scale installations while remaining accessible for construction equipment and ongoing maintenance. Agricultural areas with existing road access represent prime candidates for solar development, as the infrastructure requirements are often already partially met. The transition zones between cerrado vegetation and cleared agricultural land frequently offer the ideal combination of flat terrain, good drainage, and established access routes. Areas to avoid include steep hillsides where erosion control becomes challenging, narrow valleys prone to seasonal flooding, and regions with dense tree cover that would require extensive clearing. The most promising sites combine favorable topography with proximity to existing electrical transmission infrastructure and transportation networks.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
