Serra do Ramalho, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical region at coordinates -13.411, -43.7785, this area benefits from consistent sunlight throughout most of the year, with seasons characterized primarily by wet and dry periods rather than significant temperature variations.

Solar Energy Production Performance

The solar energy output data for Serra do Ramalho demonstrates remarkably consistent performance across all seasons. Spring emerges as the peak production period, generating 6.85 kWh per day per kW of installed solar capacity. Summer follows closely with 6.47 kWh/day per kW, while autumn maintains strong performance at 6.41 kWh/day per kW. Even winter, typically the lowest production season, still delivers a robust 6.16 kWh/day per kW. This seasonal variation of less than 0.7 kWh between the highest and lowest performing seasons indicates exceptional stability for solar energy generation. The relatively minor fluctuation makes this location highly predictable for energy planning and demonstrates the advantages of tropical positioning.

Optimal Panel Configuration

For maximum year-round solar production at Serra do Ramalho, fixed solar panels should be tilted at 13 degrees North. This optimal angle maximizes total annual energy output by accounting for the sun's path throughout the year, daily solar elevation angles, and the Earth's elliptical orbit patterns specific to this latitude.

Environmental and Weather Considerations

Several local factors could potentially impact solar production efficiency at this location and require careful consideration during installation:

• Seasonal rainfall patterns: The tropical wet season can reduce solar irradiance through cloud cover and deposit dust and debris on panel surfaces
• High humidity levels: Persistent moisture can affect electrical connections and create condensation issues
• Dust accumulation: Dry season conditions may lead to significant dust buildup on panels
• Intense UV exposure: Tropical sun intensity can accelerate degradation of panel materials and mounting systems

Preventative Installation Measures

To maximize energy production despite these environmental challenges, several preventative measures should be implemented. Installing panels with adequate spacing allows for proper air circulation, reducing humidity-related issues and helping maintain optimal operating temperatures. Regular cleaning schedules become essential, particularly during dry seasons when dust accumulation peaks. Automated cleaning systems or easy-access designs for manual cleaning can significantly improve long-term performance. Selecting high-quality, UV-resistant materials for both panels and mounting systems helps combat the intense tropical sun exposure. Marine-grade electrical components and proper sealing protect against humidity damage, while corrosion-resistant mounting hardware ensures structural integrity over time. Proper drainage design prevents water pooling during heavy rains, and strategic positioning away from trees or structures minimizes shading while reducing debris accumulation. These measures collectively help ensure Serra do Ramalho's excellent solar potential translates into sustained, high-performance energy generation throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

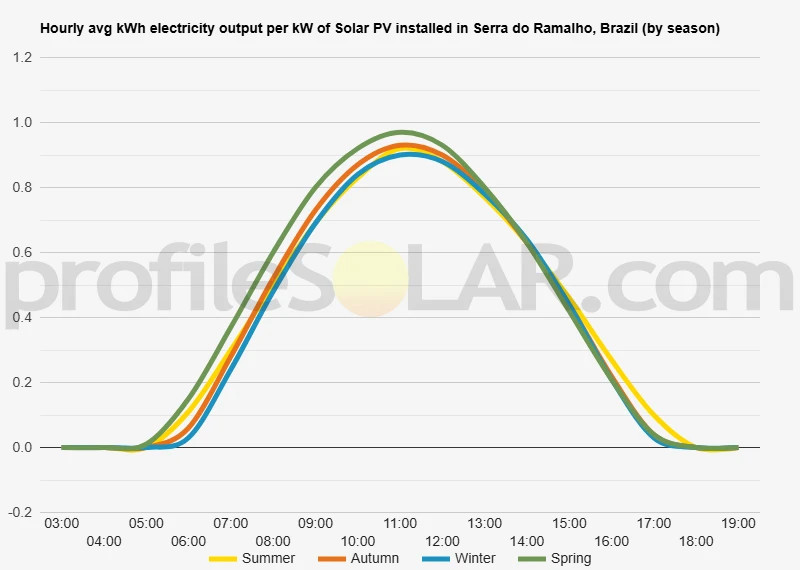

Solar output per kW of installed solar PV by season in Serra Do Ramalho

Seasonal solar PV output for Latitude: -13.411, Longitude: -43.7785 (Serra Do Ramalho, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 13° North in Serra Do Ramalho, Brazil

To maximize your solar PV system's energy output in Serra Do Ramalho, Brazil (Lat/Long -13.411, -43.7785) throughout the year, you should tilt your panels at an angle of 13° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Serra Do Ramalho, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Serra Do Ramalho, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 13° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° South in Summer	19° North in Autumn	29° North in Winter	8° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Serra Do Ramalho, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Serra Do Ramalho, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Serra Do Ramalho, Brazil

Topographical Features of Serra do Ramalho

Serra do Ramalho sits within the western region of Bahia state in Brazil, positioned on elevated terrain that forms part of the broader Brazilian Highlands. The area is characterized by gently rolling hills and plateaus that rise approximately 400 to 600 meters above sea level. This elevated positioning creates a landscape of undulating terrain with moderate slopes and occasional steeper inclines where the plateau edges meet lower-lying areas. The region features a mix of flat-topped mesas and rounded hills, typical of the weathered crystalline formations found throughout this part of the Brazilian interior. Drainage patterns have carved shallow valleys and depressions into the landscape over geological time, creating a terrain that varies between relatively flat expanses and more dissected areas with greater topographical relief.

Geological Foundation and Soil Conditions

The underlying geology consists primarily of ancient crystalline rocks, including granites and gneisses that have been extensively weathered over millions of years. This weathering process has created deep soil profiles in many areas, though rocky outcrops and areas of shallow soil over bedrock are also common throughout the region. The soils tend to be well-drained due to the elevated topography and underlying rock structure. Sandy and clay-rich soils predominate, with varying degrees of fertility depending on local conditions. The landscape shows evidence of past and ongoing erosional processes, with some areas displaying exposed rock surfaces and others covered by deeper sedimentary deposits.

Climate and Vegetation Influence on Terrain

The semi-arid climate of the region has shaped both the natural vegetation and the physical landscape. The area falls within the Caatinga biome, characterized by drought-resistant vegetation that includes thorny shrubs, small trees, and cacti. This vegetation pattern reflects the challenging moisture conditions and has influenced soil development and erosion patterns across the terrain. Seasonal rainfall patterns have created a landscape adapted to periods of both wet and dry conditions. During rainy periods, water flows create temporary drainage channels and contribute to ongoing landscape modification, while dry periods expose much of the terrain to direct atmospheric conditions.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale photovoltaic installations would be the flatter plateau areas and gentle slopes with gradients of less than 5 degrees. These areas offer the advantage of reduced construction and maintenance costs while providing stable foundations for solar panel arrays. The elevated mesas and broader hilltops present particularly attractive sites due to their relatively level surfaces and good drainage characteristics. Areas with southern and southeastern exposures on gentle slopes could also prove excellent for solar development, as they would receive optimal solar radiation throughout the day while maintaining manageable construction conditions. The well-drained soils in these locations would minimize issues with water accumulation around solar installations. Regions with deeper soil cover over the crystalline bedrock would generally be preferable to areas with extensive rock outcrops, as they would allow for easier installation of support structures and access roads. The flatter inter-hill areas and broader valley floors could accommodate large solar arrays while providing relatively straightforward access for construction and maintenance vehicles. Areas to avoid would include the steeper slope faces, deeply incised drainage channels, and locations with significant rock outcropping that would complicate installation procedures. The most dissected portions of the landscape, where erosion has created irregular terrain with frequent elevation changes, would present greater challenges for large-scale solar development projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
