Serrana, São Paulo, Brazil presents a favorable location for year-round solar photovoltaic energy generation, with consistently strong solar output throughout all seasons due to its tropical positioning.

Solar Energy Production Potential

The solar energy output at Serrana shows excellent year-round performance, with seasonal variations that follow typical tropical patterns. Summer delivers the highest production at 6.78 kWh per day per kW of installed solar capacity, while spring maintains strong output at 6.21 kWh per day per kW. Autumn sees a moderate decrease to 5.67 kWh per day per kW, and winter represents the lowest production period at 5.04 kWh per day per kW. Even during the lowest production season, winter still provides substantial energy generation, making this location highly suitable for consistent solar power throughout the year. The difference between peak and minimum production seasons is relatively modest, ensuring reliable energy output regardless of the time of year. For optimal performance with a fixed panel installation at this location, solar panels should be tilted at 20 degrees facing north. This angle maximizes total year-round solar energy production by accounting for the sun's path throughout the seasons and the location's specific latitude.

Environmental and Weather Challenges

Several environmental factors could potentially impact solar energy production at Serrana and require consideration during installation planning. Rainfall and Humidity: As a tropical location, Serrana experiences distinct wet and dry seasons. During wet periods, frequent rainfall and high humidity levels can reduce solar panel efficiency. Heavy rains may temporarily decrease sunlight penetration, while persistent humidity can lead to moisture-related issues with electrical components. Dust and Debris Accumulation: The combination of dry seasons and agricultural activities common in this region of Brazil can result in dust accumulation on solar panels. Dust buildup significantly reduces panel efficiency by blocking sunlight from reaching the photovoltaic cells. Temperature Effects: High tropical temperatures can reduce solar panel efficiency, as photovoltaic cells perform less effectively in extreme heat despite abundant sunlight availability.

Preventative Installation Measures

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate spacing and ventilation underneath to promote air circulation and reduce operating temperatures
• Use high-quality weatherproof mounting systems and electrical components rated for tropical conditions
• Implement proper drainage systems to prevent water accumulation around panel installations
• Choose panels with anti-reflective coatings and self-cleaning surfaces where possible

Maintenance Considerations: Regular cleaning schedules become particularly important at this location. During dry seasons, monthly panel cleaning may be necessary to remove dust accumulation. Installing panels at the recommended 20-degree tilt angle also helps with natural rain-washing during wet seasons, reducing manual cleaning requirements. Proper electrical component selection, including inverters and wiring rated for high humidity and temperature conditions, ensures long-term system reliability. Additionally, installing monitoring systems allows for quick identification of performance issues related to environmental factors.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

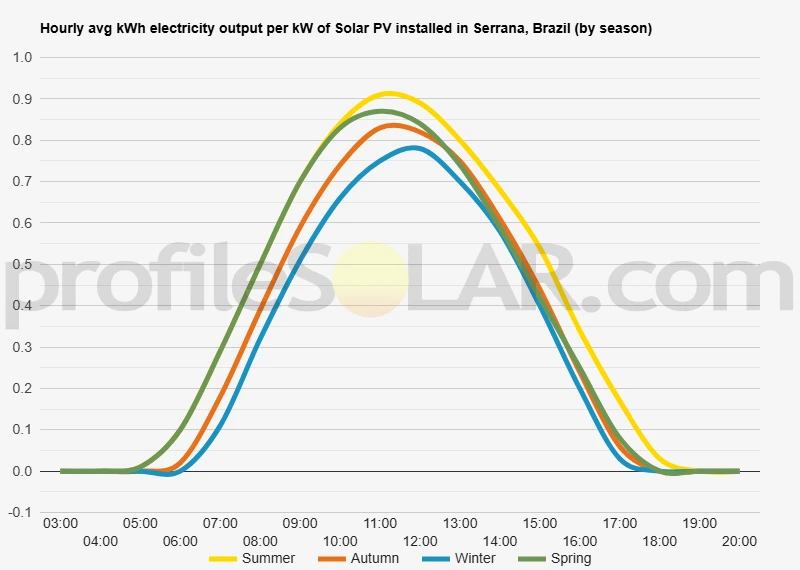

Solar output per kW of installed solar PV by season in Serrana

Seasonal solar PV output for Latitude: -21.2177, Longitude: -47.6147 (Serrana, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Serrana, Brazil

To maximize your solar PV system's energy output in Serrana, Brazil (Lat/Long -21.2177, -47.6147) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Serrana, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Serrana, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Serrana, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Serrana, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Serrana, Brazil

Topographical Features of the Serrana Region

The area around Serrana, located in the northeastern portion of São Paulo state, sits within a transitional zone between the Brazilian Highlands and the coastal plains. This region is characterized by gently rolling hills and relatively modest elevation changes, with the terrain gradually rising from approximately 500 meters above sea level in the lower areas to around 700 meters on the higher ridges. The landscape consists primarily of undulating terrain with broad, sweeping valleys separated by low hills and ridgelines. The topography in this part of São Paulo state has been significantly shaped by centuries of agricultural activity, particularly sugar cane cultivation and cattle ranching. Much of the natural vegetation has been cleared, leaving expansive open areas with gentle slopes that are well-suited to mechanized farming. The soil composition is predominantly red latosol, which is typical of the Brazilian interior and provides good drainage characteristics. Water features in the region include several small streams and seasonal waterways that flow generally eastward toward the Pardo River system. These waterways have carved shallow valleys through the landscape, creating a pattern of low ridges and gentle depressions. The drainage patterns are well-established and stable, with most watercourses following predictable seasonal cycles.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader hilltops and gentle south-facing slopes that characterize much of the region around Serrana. These elevated areas typically offer excellent exposure to sunlight throughout the day while maintaining relatively stable ground conditions. The higher elevations also tend to experience better air circulation, which can help maintain optimal operating temperatures for solar panels. The extensive cleared agricultural lands present particularly attractive opportunities for solar development. Many of these areas feature minimal slope variations across large contiguous parcels, which would significantly reduce the complexity and cost of solar array installation. The existing agricultural infrastructure, including access roads and electrical connections, could potentially be adapted to support solar facilities. Areas to the west and southwest of Serrana appear especially promising due to their combination of gentle topography, extensive cleared land, and proximity to existing transmission infrastructure. These zones feature broad plateaus with minimal tree cover and relatively uniform elevation profiles that would allow for efficient solar panel placement and maintenance access. The region's well-drained soils and stable geological conditions provide solid foundations for mounting systems, while the open terrain minimizes concerns about shading from adjacent hills or vegetation. The existing road network throughout the agricultural areas would facilitate both construction access and ongoing maintenance operations for large-scale solar installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
