Solar Energy Potential in Sete Lagoas, Minas Gerais, Brazil

Sete Lagoas, Minas Gerais, Brazil offers a favorable location for solar PV energy generation, with consistent electricity production throughout the year. This tropical location experiences relatively steady sunlight patterns, with seasonal variations defined more by wet and dry periods than dramatic changes in daylight hours. The solar energy output at this location shows modest seasonal fluctuation. During summer months, solar panels generate their highest output at 6.45 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 6.19 kWh/day, while autumn yields 5.97 kWh/day. Winter represents the lowest production period, though still respectable at 5.38 kWh/day per kilowatt installed.

Optimal Panel Positioning

For fixed solar panel installations in Sete Lagoas, Minas Gerais, the ideal tilt angle to maximize year-round energy production is 19 degrees facing North. This specific angle has been calculated to optimize solar collection throughout the year, accounting for the location's position in the Southern Hemisphere.

Environmental Considerations

Several environmental factors may impact solar production in Sete Lagoas:

• Seasonal rainfall: The region's wet season (typically October through March) can reduce solar efficiency due to cloud cover and precipitation. Installing panels with high-efficiency ratings that perform better in diffuse light conditions can help mitigate this impact.
• Dust accumulation: The area's dry season can lead to dust buildup on panels, potentially reducing efficiency by 10-30% if not addressed. Implementing regular cleaning schedules or automated cleaning systems is recommended.
• High temperatures: While Sete Lagoas benefits from abundant sunshine, excessive heat can reduce panel efficiency. Choosing panels with lower temperature coefficients and ensuring adequate airflow beneath the installation can help maintain optimal performance.

Maximizing Production

The relatively small seasonal variation in solar output makes Sete Lagoas an excellent location for year-round solar energy production. Summer and spring represent peak production periods, making these ideal times for energy-intensive activities. However, even during winter, the solar resource remains substantial enough to provide reliable energy generation. To maximize production, consider installing panels with anti-soiling coatings to reduce dust accumulation effects during the dry season. Additionally, implementing a slight overcapacity in the system design can help compensate for the modest reduction in winter output, ensuring consistent energy availability throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

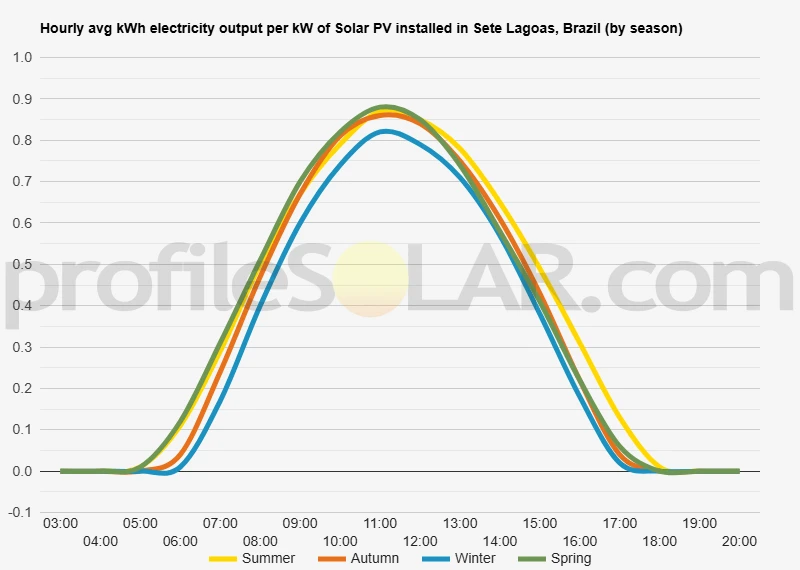

Solar output per kW of installed solar PV by season in Sete Lagoas

Seasonal solar PV output for Latitude: -19.4367, Longitude: -44.2837 (Sete Lagoas, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Sete Lagoas, Brazil

To maximize your solar PV system's energy output in Sete Lagoas, Brazil (Lat/Long -19.4367, -44.2837) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sete Lagoas, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sete Lagoas, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	25° North in Autumn	35° North in Winter	13° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sete Lagoas, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sete Lagoas, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sete Lagoas, Brazil

Topography of Sete Lagoas, Brazil

Sete Lagoas, located in the state of Minas Gerais, Brazil, sits within a varied topographical landscape that combines hills, plateaus, and valleys. The city itself is positioned at approximately 760 meters above sea level in a transition zone between the Brazilian Highlands and the São Francisco River basin. The surrounding region features a distinctive karst topography, characterized by limestone formations that have created numerous caves, sinkholes, and the seven lakes for which the city is named ("Sete Lagoas" translates to "Seven Lakes" in Portuguese). These geological features are part of the Bambuí Group, a significant limestone formation that extends through much of central Brazil. To the east and northeast of Sete Lagoas, the terrain becomes increasingly rugged as it transitions toward the Serra do Espinhaço mountain range, with elevations reaching over 1,000 meters. These higher elevation areas feature steeper slopes and more dramatic relief. In contrast, the western portions of the region tend to have gentler topography, gradually descending toward the São Francisco River basin. The landscape surrounding Sete Lagoas also includes rolling hills covered with cerrado vegetation (Brazilian savanna), interspersed with patches of deciduous forest. This varied terrain creates a mosaic of microclimates and ecological zones within relatively short distances.

Optimal Areas for Solar PV Development

When considering large-scale solar photovoltaic (PV) development near Sete Lagoas, several topographical factors become important. The most suitable areas would generally include: The western plains and gentle slopes extending toward the São Francisco River basin present ideal conditions for solar PV installation. These areas offer relatively flat terrain that reduces construction costs and simplifies maintenance access. The lower-lying regions west of the city have fewer obstructions that might cast shadows on solar arrays. Elevated plateaus in the region, particularly those with minimal forest cover, provide excellent potential sites. These plateaus often experience less atmospheric interference and benefit from consistent exposure to sunlight throughout the day. Several such plateaus can be found in the northwestern and southwestern peripheries of the Sete Lagoas region. The gently rolling cerrado landscapes surrounding the city offer considerable potential for solar development. These areas typically have sparse tree cover and stable soil conditions that can support the necessary infrastructure without excessive land preparation costs. Areas to avoid would include the steeper eastern slopes approaching the Serra do Espinhaço, the immediate surroundings of the karst features (sinkholes, caves, and lakes), and locations with denser forest cover. These areas present challenges including difficult terrain for construction, potential environmental sensitivities, and reduced solar exposure due to shading. The relatively dry climate of the region is favorable for solar PV efficiency, as solar panels typically perform better in areas with lower humidity. The combination of favorable topography in the western portions of the region, along with the climate conditions, makes the areas west and southwest of Sete Lagoas particularly promising for large-scale solar PV development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
