Silva Jardim, Rio de Janeiro, Brazil represents a moderately good location for year-round solar energy generation, though it experiences notable seasonal variations in solar output. Located in the tropics where sunlight remains relatively consistent throughout the year, this region benefits from the characteristic wet and dry seasonal patterns rather than extreme temperature fluctuations.

Seasonal Solar Performance

The solar energy production at Silva Jardim varies significantly across the seasons. Summer delivers the highest output at 6.39 kWh per day per kW of installed solar capacity, making it the ideal time for solar generation. Spring follows as the second-best season with 4.90 kWh/day per kW, while autumn produces 5.19 kWh/day per kW. Winter represents the least productive period, generating only 4.24 kWh/day per kW of installed capacity. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 21 degrees facing north. This angle has been calculated to maximize total annual solar output by accounting for the sun's varying elevation throughout the year and weighting these angles based on actual solar irradiance data.

Environmental and Weather Challenges

Several environmental factors at Silva Jardim can significantly impact solar energy production and require careful consideration during installation:

• High humidity and moisture: The tropical climate creates persistent humidity that can cause corrosion of electrical components and reduce panel efficiency over time
• Heavy rainfall during wet seasons: Intense tropical downpours can create water ingress issues and may temporarily reduce solar output during storm periods
• Salt air exposure: Being relatively close to coastal areas, salt-laden air can accelerate corrosion of metal components
• Vegetation growth: The tropical environment promotes rapid plant growth that can create shading issues if not properly managed

Preventative Installation Measures

To maximize solar energy production despite these challenges, several protective measures should be implemented. All electrical components and connections should use marine-grade or tropical-rated materials with enhanced corrosion resistance and proper IP ratings for moisture protection. Proper drainage systems must be installed to prevent water accumulation around panel mounting systems, while elevated mounting structures should be used to improve air circulation and reduce moisture buildup. Regular vegetation management around the solar installation is essential to prevent shading from rapidly growing tropical plants. Panel cleaning systems or schedules should account for the combination of dust, pollen, and moisture that can reduce panel efficiency more quickly in tropical environments. Additionally, using panels and inverters specifically rated for high-humidity tropical conditions will ensure longer equipment life and more consistent energy production throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

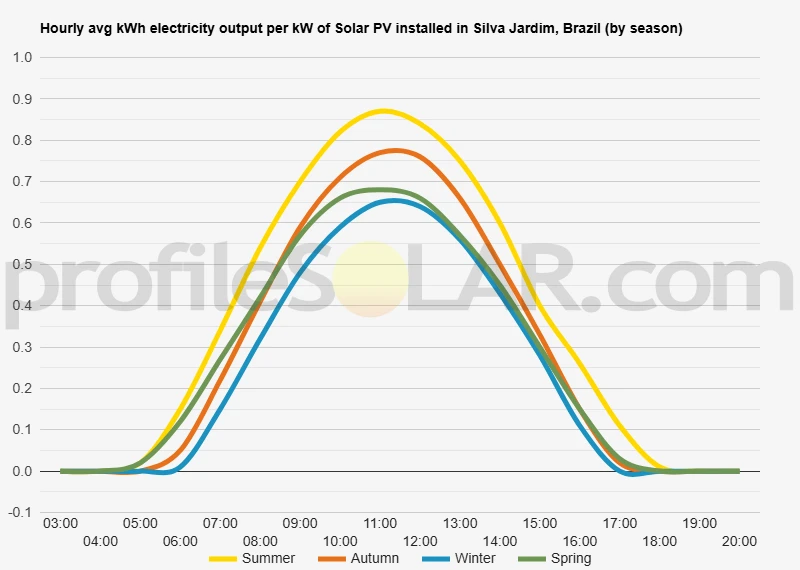

Solar output per kW of installed solar PV by season in Silva Jardim

Seasonal solar PV output for Latitude: -22.5472, Longitude: -42.3516 (Silva Jardim, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Silva Jardim, Brazil

To maximize your solar PV system's energy output in Silva Jardim, Brazil (Lat/Long -22.5472, -42.3516) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Silva Jardim, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Silva Jardim, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Silva Jardim, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Silva Jardim, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Silva Jardim, Brazil

Topographical Features of Silva Jardim

Silva Jardim sits within the coastal lowlands of Rio de Janeiro state, positioned between the Atlantic Ocean to the south and the Serra do Mar mountain range to the north. The municipality occupies a transitional zone where the coastal plains gradually give way to rolling hills and low mountains. The terrain is characterized by gentle undulations, small valleys, and scattered low ridges that rarely exceed 200 meters in elevation above sea level. The landscape around Silva Jardim features a mix of flat to gently sloping areas interspersed with small hills and shallow valleys carved by local waterways. The Bacaxá River system drains much of the region, creating fertile floodplains and wetland areas near the watercourses. Moving inland from the coast, the topography becomes increasingly varied, with more pronounced hills and steeper slopes as the land approaches the foothills of the Serra do Mar.

Soil and Ground Conditions

The geological foundation consists primarily of sedimentary deposits and weathered crystalline rocks. Much of the coastal plain area features sandy soils with good drainage, while the hillier inland areas contain clay-rich soils derived from weathered granite and gneiss. The region's tropical climate has created deep soil profiles in many areas, though rocky outcrops become more common on steeper slopes and hilltops. Wetland areas and seasonal flooding zones exist near major waterways, particularly along the Bacaxá River and its tributaries. These areas present challenges for development due to environmental protection requirements and unstable ground conditions during wet periods.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations lie in the gently rolling plains and low hills between Silva Jardim and the inland municipalities. These areas offer several advantages including relatively stable ground conditions, good drainage, and minimal environmental constraints compared to coastal wetlands or steep mountain slopes. The elevated plains and gentle ridges extending northward toward Casimiro de Abreu and westward toward Rio Bonito present ideal characteristics for solar development. These locations provide sufficient elevation to avoid flooding concerns while maintaining gentle slopes that minimize grading requirements and construction costs. The well-drained soils in these areas reduce foundation complications and provide stable platforms for solar mounting systems. Areas to avoid include the immediate coastal zone with its environmental sensitivities and potential storm surge impacts, as well as the steeper terrain approaching the Serra do Mar where slopes become too pronounced for efficient solar panel installation. The wetland corridors along major rivers also present regulatory and technical challenges that make them unsuitable for large-scale solar development. The transitional zone between the coastal lowlands and the mountain foothills offers the optimal balance of accessible terrain, stable soils, and minimal environmental constraints. This region provides extensive areas of gently undulating land that can accommodate large solar installations while maintaining reasonable access to existing infrastructure and transmission corridors.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
