Cachoeirinha, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical region where sunlight remains consistent throughout most of the year, this area experiences seasons characterized more by wet and dry periods rather than the dramatic temperature variations found in other climates.

Solar Energy Production Potential

The solar energy output data for this location demonstrates strong year-round performance. Spring emerges as the peak season with an impressive 7.22kWh per day per kW of installed solar capacity. Summer follows closely with 6.56kWh/day per kW, while autumn maintains solid production at 5.81kWh/day per kW. Even during the lowest-producing season of winter, the location still generates a respectable 5.01kWh/day per kW. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 7 degrees facing north. This angle has been calculated to maximize total annual solar output by accounting for the sun's varying position throughout the year and the Earth's elliptical orbit pattern.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Cachoeirinha and require careful consideration during installation planning. The tropical climate brings significant rainfall during wet seasons, which can reduce solar irradiance when heavy cloud cover persists for extended periods. Additionally, the combination of high humidity and frequent precipitation creates ideal conditions for accelerated dirt, dust, and organic matter accumulation on solar panels.

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Install panels with adequate spacing and proper mounting systems that allow air circulation to prevent moisture buildup and reduce humidity-related degradation
• Implement regular cleaning schedules, particularly during and after wet seasons when organic debris and sediment accumulation peaks
• Use anti-reflective coatings and hydrophobic treatments on panel surfaces to minimize dirt adhesion and improve water runoff
• Install monitoring systems to track performance drops that may indicate cleaning or maintenance needs
• Consider automated cleaning systems for larger installations to maintain consistent performance

Despite these considerations, Cachoeirinha's consistent tropical sunlight and strong seasonal production figures make it a highly suitable location for solar PV installations when proper maintenance protocols are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

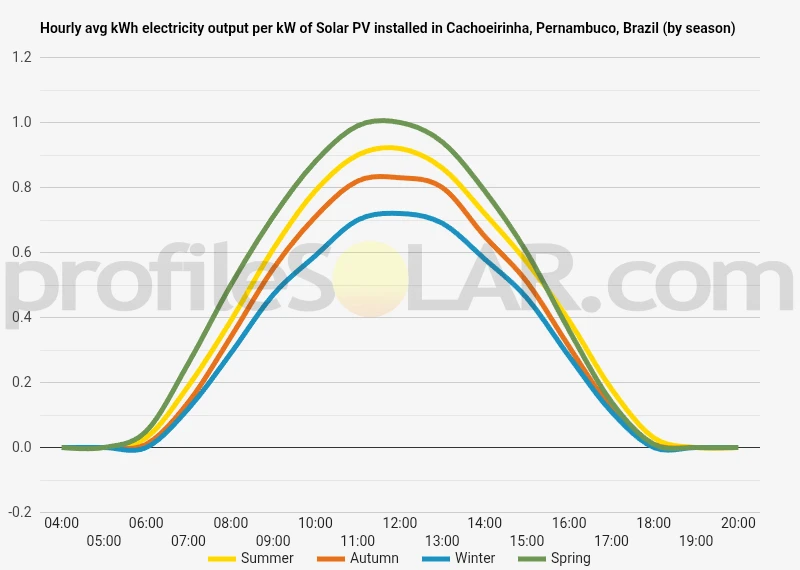

Solar output per kW of installed solar PV by season in Cachoeirinha, Pernambuco

Seasonal solar PV output for Latitude: -8.5208, Longitude: -36.2956 (Cachoeirinha, Pernambuco, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Cachoeirinha, Pernambuco, Brazil

To maximize your solar PV system's energy output in Cachoeirinha, Pernambuco, Brazil (Lat/Long -8.5208, -36.2956) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cachoeirinha, Pernambuco, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cachoeirinha, Pernambuco, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° South in Summer	14° North in Autumn	24° North in Winter	2° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cachoeirinha, Pernambuco, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cachoeirinha, Pernambuco, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cachoeirinha, Pernambuco, Brazil

Topographical Features of the Cachoeirinha Region

The area surrounding Cachoeirinha in northeastern Brazil lies within the Caatinga biome, characterized by a semi-arid landscape that forms part of the broader Brazilian Highlands. This region sits at an elevation of approximately 400 to 500 meters above sea level, positioned on an elevated plateau that extends across much of the interior of Pernambuco state. The terrain consists primarily of gently rolling hills interspersed with flat to moderately sloping areas, creating a landscape that undulates gradually rather than featuring dramatic elevation changes. The geological foundation of this area comprises predominantly crystalline rock formations from the Precambrian era, which have been weathered over millions of years to create the current topographical features. These ancient rock structures contribute to the region's generally stable terrain, with occasional outcroppings of granite and gneiss visible across the landscape. The weathering processes have resulted in soils that are typically shallow and rocky, with patches of deeper sedimentary deposits in valley areas and depressions. Water features in the region are relatively sparse, reflecting the semi-arid climate conditions. Small seasonal streams and intermittent watercourses drain the area, flowing generally eastward toward the Atlantic coast. During the dry season, many of these waterways reduce to isolated pools or disappear entirely, leaving behind sandy or rocky channels that mark their seasonal paths across the landscape.

Vegetation and Land Use Patterns

The natural vegetation consists of Caatinga scrubland, featuring drought-adapted trees and shrubs that shed their leaves during dry periods. This sparse vegetation creates an open landscape with scattered thorny bushes, small trees, and cacti species. Much of the original vegetation has been modified by human activity, including cattle grazing and agriculture, resulting in areas of cleared or partially cleared land that alternate with patches of native scrubland. Agricultural activities in the region focus primarily on drought-resistant crops and livestock grazing. The combination of natural clearings and areas modified for agricultural use has created a patchwork landscape of open spaces and low-growing vegetation that rarely exceeds a few meters in height.

Optimal Areas for Large-Scale Solar Development

The gently sloping plateaus and flat areas scattered throughout the region present the most suitable locations for large-scale solar photovoltaic installations. These areas offer several advantages, including stable geological foundations, minimal grading requirements, and excellent exposure to solar radiation with few natural obstructions. The elevated plateau areas, particularly those with southern-facing slopes of less than 5 degrees, would be ideal for solar panel placement as they maximize exposure while minimizing the need for extensive site preparation. Areas that have been previously cleared for agricultural purposes or natural grasslands would require minimal environmental disruption for solar development. The rocky, shallow soils that characterize much of the region, while challenging for agriculture, actually provide excellent drainage for solar installations and reduce concerns about ground instability or excessive vegetation growth beneath panels. The relatively sparse population density and limited competing land uses in many parts of the region mean that large contiguous areas could potentially be assembled for major solar projects. Areas located away from the seasonal watercourses would avoid potential flooding issues and environmental sensitivities associated with riparian zones. Transportation access represents an important consideration, with areas closer to existing roads and infrastructure offering practical advantages for construction and maintenance activities. The higher elevation areas also benefit from increased air circulation, which can help maintain optimal operating temperatures for photovoltaic equipment in this warm climate region.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
