São Sebastião, Brazil represents an excellent location for year-round solar energy generation, benefiting from its tropical climate where consistent sunlight is available throughout most of the year with seasons characterized more by wet and dry periods rather than significant temperature variations.

Solar Energy Production Performance

The solar energy output data for São Sebastião demonstrates strong performance across all seasons, with particularly impressive generation during spring and summer months. Spring delivers the highest output at 7.02kWh per day per kW of installed capacity, closely followed by summer at 6.86kWh per day per kW. Even during the lowest-producing season of winter, the location still generates a respectable 4.87kWh per day per kW, while autumn provides 5.67kWh per day per kW. This seasonal variation shows that São Sebastião maintains relatively consistent solar production year-round, with spring and summer being the optimal periods for maximum energy generation. The difference between peak and lowest production seasons is approximately 44%, which is quite favorable compared to many locations at higher latitudes.

Optimal Panel Installation

For fixed panel installations at São Sebastião, the ideal tilt angle to maximize total year-round solar production is 8 degrees facing North. This relatively shallow angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these angles based on solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several environmental factors at São Sebastião could potentially impact solar energy production, though most can be effectively managed with proper installation practices:

• High Humidity and Salt Air: Being a coastal location, São Sebastião experiences high humidity levels and salt-laden air from the Atlantic Ocean, which can cause corrosion of metal components and degradation of electrical connections over time.
• Heavy Rainfall During Wet Season: The tropical climate brings intense rainfall periods that can reduce solar irradiance and create challenges for system maintenance and cleaning.
• Strong Coastal Winds: The coastal position exposes installations to potentially damaging winds, particularly during storm seasons.
• Dust and Debris Accumulation: Airborne particles from both natural and urban sources can accumulate on panel surfaces, reducing efficiency.

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these environmental challenges, several preventative measures should be implemented during solar installation: Marine-grade materials and coatings should be used throughout the installation to resist salt corrosion. All electrical connections must be properly sealed and weatherproofed using marine-grade enclosures and corrosion-resistant materials. Stainless steel or aluminum mounting systems with appropriate protective coatings will provide better longevity in the coastal environment. Robust mounting systems designed to withstand high wind loads are essential, with proper engineering calculations for local wind conditions. Panels should be securely anchored with adequate structural support to prevent wind damage during storms. Regular maintenance schedules should include frequent cleaning of panel surfaces to remove salt deposits, dust, and organic matter that can reduce efficiency. Installing panels at the optimal 8-degree tilt also helps with natural rain-washing of debris. Proper drainage systems around ground-mounted installations will prevent water accumulation during heavy rainfall periods, while elevated mounting can protect electrical components from potential flooding in low-lying areas.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

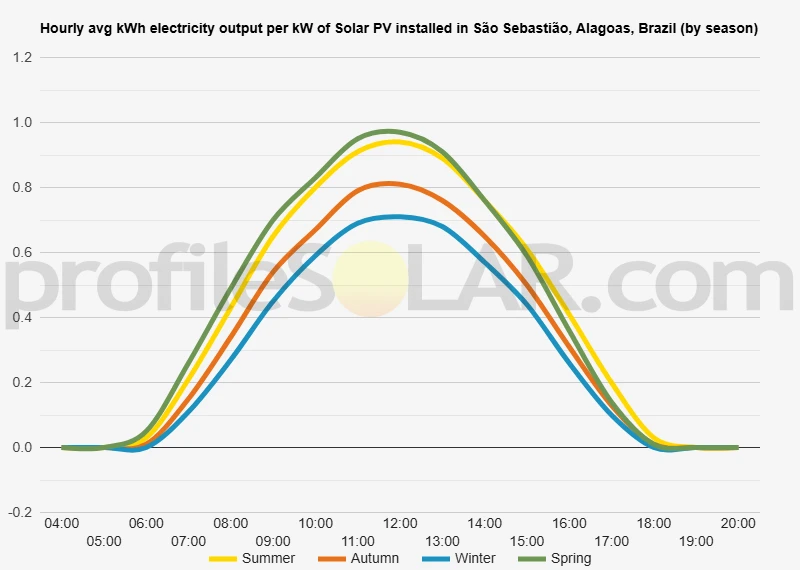

Solar output per kW of installed solar PV by season in São Sebastião, Alagoas

Seasonal solar PV output for Latitude: -9.9681, Longitude: -36.5489 (São Sebastião, Alagoas, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° North in São Sebastião, Alagoas, Brazil

To maximize your solar PV system's energy output in São Sebastião, Alagoas, Brazil (Lat/Long -9.9681, -36.5489) throughout the year, you should tilt your panels at an angle of 8° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for São Sebastião, Alagoas, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in São Sebastião, Alagoas, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	15° North in Autumn	25° North in Winter	3° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in São Sebastião, Alagoas, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in São Sebastião, Alagoas, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around São Sebastião, Alagoas, Brazil

Topographical Features of São Sebastião Region

São Sebastião sits in the state of Alagoas within Brazil's northeastern coastal region, positioned along the Atlantic Ocean. The immediate topography around this location presents a relatively flat to gently undulating landscape typical of the coastal plains that characterize much of Brazil's northeastern shoreline. The terrain gradually rises from sea level as one moves inland, creating a series of low-lying coastal terraces and gentle slopes. The area features a mix of sandy coastal lowlands near the ocean transitioning to slightly more elevated terrain further inland. These coastal plains are interspersed with small hills and ridges that rarely exceed modest elevations. The landscape is shaped by sedimentary formations and alluvial deposits, creating generally stable ground conditions with good drainage characteristics in most areas. Moving westward from the coast, the topography becomes more varied with rolling hills and broader valleys. The region contains several small river systems and seasonal watercourses that have carved gentle valleys through the landscape. These waterways typically flow eastward toward the Atlantic, creating natural drainage patterns that help define the local topographical features.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the elevated coastal terraces and gentle inland slopes situated between two to ten kilometers from the immediate shoreline. These areas offer several advantages including stable, well-drained soils and relatively flat terrain that minimizes grading requirements while avoiding the salt-laden air and potential storm surge impacts of immediate coastal locations. The rolling hills and broader valleys located further inland, particularly those with southern and southeastern exposures, present excellent opportunities for large-scale solar development. These slightly elevated positions provide natural advantages for solar installations while offering sufficient space for extensive arrays. The gentle slopes in these areas facilitate proper drainage and reduce the risk of flooding during seasonal rains. Agricultural areas on the coastal plains could also accommodate significant solar development, particularly where the land presents minimal slopes and good accessibility. These locations typically feature cleared land with established access routes, reducing initial development costs. The stable geological conditions common to these sedimentary coastal formations provide solid foundations for solar mounting systems. Areas to avoid would include the immediate coastal zone due to salt corrosion concerns and potential extreme weather exposure, as well as any low-lying areas prone to seasonal flooding near river systems. The most promising locations combine gentle topography, good drainage, stable soils, and sufficient distance from the coast to minimize environmental stresses while maintaining reasonable access to existing infrastructure.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
