Sobradinho, Rio Grande do Sul, Brazil presents a moderately favorable location for year-round solar photovoltaic energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropical location shows significant fluctuation throughout the year. Summer delivers the strongest performance at 7.56 kWh per day per kW of installed capacity, making it the optimal season for solar generation. Spring follows as the second-best performing season with 5.97 kWh per day per kW, while autumn drops to 4.78 kWh per day per kW. Winter presents the most challenging conditions, producing only 3.39 kWh per day per kW of installed solar capacity. This seasonal pattern means that solar installations will generate more than twice as much electricity during peak summer months compared to the winter period. The shoulder seasons of spring and autumn provide intermediate generation levels, with spring significantly outperforming autumn.

Optimal Panel Configuration

For maximum year-round energy production at Sobradinho, Rio Grande do Sul, solar panels should be installed at a fixed tilt angle of 25 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data for this specific latitude.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at this location and require attention during installation planning. The Southern Sub Tropical climate typically brings higher humidity levels and increased precipitation, particularly during certain seasons. This can lead to more frequent cloud cover and atmospheric moisture that reduces solar irradiance reaching the panels. Additionally, the humid conditions can promote faster accumulation of dust, pollen, and organic matter on panel surfaces. Temperature fluctuations common in subtropical regions can affect panel efficiency, as solar panels actually perform less efficiently in extremely hot conditions despite having more sunlight available. The combination of high temperatures and humidity can also accelerate degradation of electrical components if not properly protected.

Preventative Measures for Enhanced Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate ventilation spacing underneath to promote air circulation and cooling
• Use high-quality mounting systems with corrosion-resistant materials suitable for humid subtropical conditions
• Implement regular cleaning schedules to remove accumulated dust, pollen, and organic debris
• Choose solar panels and inverters rated for high humidity and temperature variations
• Ensure proper electrical protection with weatherproof enclosures and drainage systems

The location's winter performance of only 3.39 kWh per day per kW suggests that energy storage solutions or grid-tied systems with net metering would be particularly valuable for maintaining consistent energy supply throughout the year. While Sobradinho offers decent solar potential overall, the significant seasonal variation means careful system sizing and energy management planning will be essential for optimal results.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

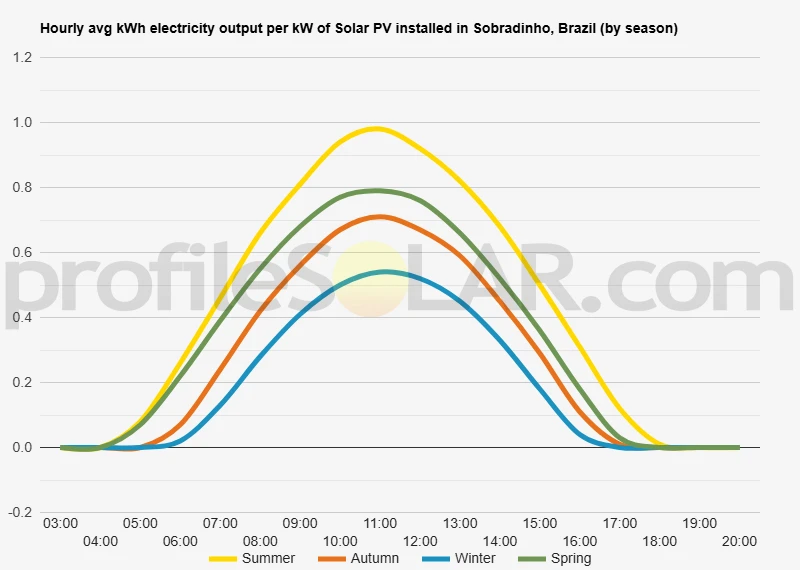

Solar output per kW of installed solar PV by season in Sobradinho

Seasonal solar PV output for Latitude: -29.4097, Longitude: -53.0226 (Sobradinho, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Sobradinho, Brazil

To maximize your solar PV system's energy output in Sobradinho, Brazil (Lat/Long -29.4097, -53.0226) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sobradinho, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sobradinho, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sobradinho, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sobradinho, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sobradinho, Brazil

Topographical Features of the Sobradinho Region

The area surrounding Sobradinho in Brazil's Rio Grande do Sul state is characterized by gently rolling hills and undulating terrain typical of the southern Brazilian highlands. This region sits within the broader geological formation known as the Serra Geral, where ancient volcanic activity has created a landscape of moderate elevations and gradual slopes. The topography consists primarily of rounded hilltops separated by shallow valleys, with elevation changes that are generally gradual rather than steep or dramatic. The terrain around Sobradinho features extensive plateaus and mesa-like formations that provide relatively flat expanses interspersed with gentle inclines. These elevated areas offer good drainage and are less prone to flooding, making them particularly stable for infrastructure development. The soil composition in this region is largely derived from basaltic rock formations, creating fertile ground that has traditionally supported agricultural activities.

Drainage Patterns and Water Features

The local watershed is part of the larger Uruguay River basin, with several smaller tributaries and seasonal streams flowing through the area. These waterways have carved shallow valleys through the landscape over millennia, creating a pattern of ridges and depressions that define the regional topography. The drainage patterns generally flow in a westward direction toward the Uruguay River, following the natural gradient of the terrain. During the rainy season, temporary water accumulation can occur in lower-lying areas, though the overall drainage characteristics of the region are generally good due to the moderate slopes and permeable soil conditions. The presence of these water features also creates microclimates within valleys that can differ from the conditions on elevated areas.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the elevated plateau areas and gentle south-facing slopes that characterize much of the region around Sobradinho. These areas offer several advantages including minimal shading from surrounding terrain, excellent natural drainage, and relatively stable ground conditions for mounting systems. The broad, flat-topped hills and mesa formations provide ideal conditions for large solar arrays because they offer extensive contiguous areas with consistent orientation and minimal topographical obstacles. These elevated positions also benefit from improved air circulation, which can help maintain optimal operating temperatures for photovoltaic panels. Areas to avoid would include the narrow valley bottoms where seasonal flooding might occur, as well as the steeper hillside locations where installation would be more challenging and expensive. The gentler slopes with southern exposure represent a good compromise, offering adequate space for development while maintaining favorable orientation for solar collection throughout the day. The agricultural fields on the flatter portions of the landscape could potentially be converted to solar use, particularly where farming has been less intensive or economically marginal. These areas often have existing access roads and electrical infrastructure that could support solar development, reducing overall project costs and environmental impact.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
