Sobral, Ceará, Brazil presents an excellent location for year-round solar energy generation, with consistently high electricity output throughout all seasons. The data shows this tropical location produces between 5.61 and 6.82 kWh per day for every kW of installed solar capacity.

Seasonal Performance

The solar production at Sobral follows an interesting pattern that differs from temperate regions. Spring delivers the highest output at 6.82 kWh/day per kW, followed by winter at 6.17 kWh/day per kW. Autumn produces 5.73 kWh/day per kW, while summer generates the lowest output at 5.61 kWh/day per kW. This seasonal variation makes sense for a tropical location. The slightly lower summer production likely corresponds with the region's wet season, when increased cloud cover and atmospheric moisture can reduce solar irradiance. The higher spring and winter outputs align with the drier months when skies are typically clearer.

Optimal Installation Setup

For maximum year-round energy production at Sobral, Ceará, solar panels should be installed at a fixed tilt angle of 4 degrees facing north. This shallow angle is typical for locations close to the equator, where the sun passes nearly overhead throughout the year.

Environmental Factors and Mitigation Strategies

Several environmental factors in Sobral could potentially impact solar energy production:

• Seasonal rainfall: The tropical wet season brings heavy rains and increased humidity, which can reduce solar irradiance and leave water spots on panels
• Dust and particulate matter: Dry periods can lead to dust accumulation on solar panels, reducing their efficiency
• High humidity: Persistent moisture in the air can affect equipment longevity and create condensation issues
• Intense UV exposure: Strong tropical sunlight can accelerate degradation of solar panel materials and mounting systems

Preventative Measures

To maximize solar production and system longevity in Sobral's tropical environment, several preventative measures should be implemented:

• Regular cleaning schedule: Establish frequent panel cleaning, especially during dry periods to remove dust buildup
• Proper drainage design: Install systems with adequate drainage to prevent water pooling during heavy rains
• UV-resistant materials: Use high-quality mounting systems and cables rated for intense tropical UV exposure
• Ventilation considerations: Ensure adequate airflow around panels to reduce heat buildup and humidity-related issues
• Corrosion protection: Use marine-grade or tropical-rated hardware to resist humidity-induced corrosion

Despite these considerations, Sobral remains an highly favorable location for solar energy generation, with strong and consistent output year-round that makes it well-suited for both residential and commercial solar installations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

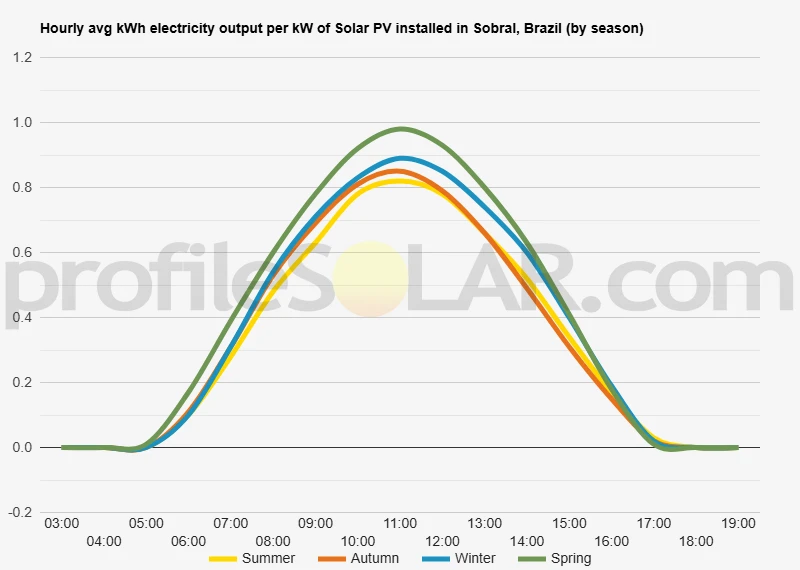

Solar output per kW of installed solar PV by season in Sobral

Seasonal solar PV output for Latitude: -3.6867, Longitude: -40.3481 (Sobral, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Sobral, Brazil

To maximize your solar PV system's energy output in Sobral, Brazil (Lat/Long -3.6867, -40.3481) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sobral, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sobral, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	11° North in Autumn	19° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sobral, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sobral, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sobral, Brazil

Topographical Features Around Sobral

The landscape surrounding Sobral in northeastern Brazil presents a relatively flat to gently undulating terrain characteristic of the Caatinga region. This area sits within the semi-arid interior of Ceará state, where the topography is dominated by low-lying plains punctuated by occasional hills and rocky outcrops. The elevation around Sobral typically ranges from 60 to 200 meters above sea level, creating a predominantly level terrain that extends across much of the surrounding countryside. The region features scattered inselbergs - isolated rocky hills that rise abruptly from the surrounding plains - which are common geological formations throughout northeastern Brazil's semi-arid zones. These granite and gneiss formations create distinctive landmarks but occupy relatively small portions of the overall landscape. Between these rocky outcrops, the terrain consists primarily of sedimentary deposits that have created expansive flat areas ideal for large-scale development projects. Drainage patterns in the area are defined by seasonal streams and rivers that flow primarily during the rainy season. The Acaraú River system influences the local topography to the north of Sobral, while smaller tributaries create gentle valleys and depressions throughout the region. During dry periods, many of these waterways become intermittent, leaving behind relatively flat valley floors.

Optimal Areas for Large-Scale Solar Development

The extensive flat plains stretching east and southeast of Sobral present the most promising locations for major solar photovoltaic installations. These areas offer minimal slopes, reducing the need for extensive ground preparation and allowing for efficient installation of tracking systems. The sedimentary plains in these directions provide stable foundations while maintaining the gentle gradients necessary for proper drainage and equipment access. Areas located approximately 15 to 30 kilometers from Sobral's urban center strike an optimal balance between land availability and infrastructure access. These zones benefit from proximity to existing electrical transmission networks while offering the large contiguous parcels of relatively flat land essential for utility-scale solar farms. The terrain in these areas typically exhibits slopes of less than 5 percent, making them highly suitable for both fixed-tilt and single-axis tracking solar arrays. The southwestern approaches to Sobral also present favorable conditions, particularly where the landscape transitions into broader alluvial plains. These areas combine the advantages of level terrain with good soil stability and reasonable access to transportation networks. The absence of significant vegetation or competing agricultural uses in many of these zones reduces development complications and environmental concerns. Locations that should generally be avoided include the immediate vicinity of the scattered inselbergs and rocky outcrops, where irregular terrain and potential shading issues could compromise solar generation efficiency. Similarly, areas prone to seasonal flooding near major drainage channels present challenges for equipment protection and maintenance access, making them less desirable for large-scale solar development despite otherwise favorable topographical conditions.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
