Tenente Portela, Rio Grande do Sul, Brazil presents a moderately favorable location for solar PV energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location varies significantly throughout the year. Summer delivers the strongest performance at 7.33 kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best period with 6.01 kWh per day per kW, while autumn drops to 5.07 kWh per day per kW. Winter presents the greatest challenge for solar production, generating only 3.74 kWh per day per kW of installed capacity. This represents nearly a 50% reduction compared to summer output, which is typical for locations in the Southern Hemisphere where winter coincides with the sun's lowest position in the sky.

Optimal Panel Installation

For maximum year-round energy production at Tenente Portela, Rio Grande do Sul, solar panels should be installed at a fixed tilt angle of 24 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and weighting the angles based on actual solar irradiance data.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this location:

• High humidity levels typical of subtropical climates can reduce panel efficiency and promote faster degradation of electrical components
• Heavy rainfall during certain seasons may cause temporary shading and require robust drainage systems
• Potential for severe weather events including hailstorms that could damage panels
• Dense vegetation growth in the humid climate may create shading issues if not properly managed

Preventative Measures

To maximize solar production despite these challenges, several installation strategies should be considered:

• Use panels with enhanced corrosion resistance and sealed electrical connections to withstand high humidity
• Install proper drainage systems and ensure adequate spacing between panel rows to prevent water accumulation
• Consider impact-resistant glass or protective screens in areas prone to hail damage
• Implement regular vegetation management around the installation site
• Schedule more frequent cleaning and maintenance during high-humidity periods

Overall, while Tenente Portela offers reasonable solar potential, the significant winter reduction in output and subtropical environmental challenges require careful planning and robust installation practices to ensure optimal long-term performance.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

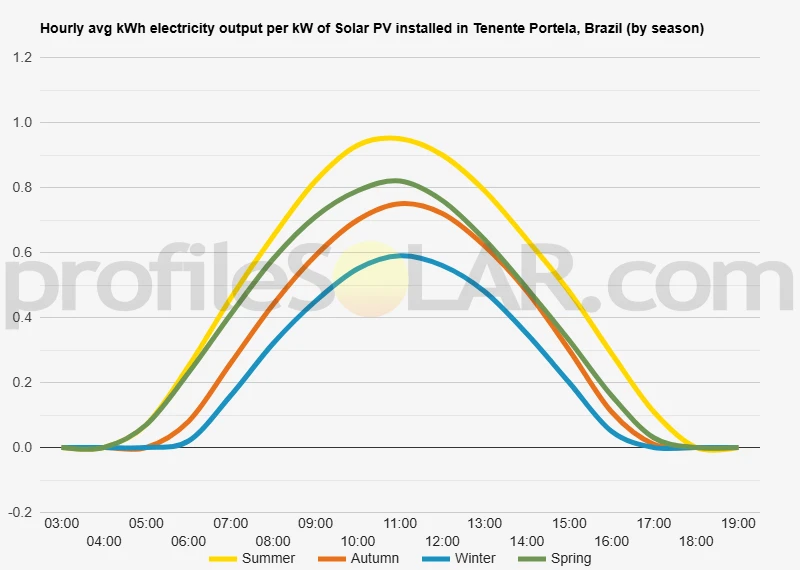

Solar output per kW of installed solar PV by season in Tenente Portela

Seasonal solar PV output for Latitude: -27.3619, Longitude: -53.7756 (Tenente Portela, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Tenente Portela, Brazil

To maximize your solar PV system's energy output in Tenente Portela, Brazil (Lat/Long -27.3619, -53.7756) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tenente Portela, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tenente Portela, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	33° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tenente Portela, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tenente Portela, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tenente Portela, Brazil

Topographical Features of Tenente Portela

Tenente Portela sits in the northwestern region of Rio Grande do Sul state, Brazil, within the gently rolling landscape characteristic of the southern Brazilian plateau. The terrain around this municipality features moderate undulations with elevations typically ranging between 400 and 600 meters above sea level. The topography consists primarily of broad, rounded hills separated by shallow valleys, creating a landscape that appears almost wave-like when viewed from elevated positions. The region forms part of the larger Planalto Meridional, or Southern Plateau, which extends across much of southern Brazil. This geological formation results in relatively stable terrain with gradual slopes rather than steep inclines. The area experiences well-drained conditions due to its elevation and the gentle gradient of the land, which allows water to flow naturally toward the numerous small streams and tributaries that feed into larger river systems.

Agricultural Character and Land Use

The surrounding countryside displays a predominantly agricultural character, with extensive areas dedicated to crop cultivation and livestock grazing. Large fields of soybeans, corn, and wheat dominate the landscape, interspersed with pastureland for cattle. The fertile soils of the region, combined with the favorable topography, have made this area highly productive for farming activities. The existing land use patterns reveal extensive cleared areas with minimal natural vegetation remaining. Most of the original Atlantic Forest that once covered this region has been converted to agricultural use over the past century. This transformation has created vast open spaces with excellent exposure to sunlight throughout the day.

Optimal Areas for Large-Scale Solar Development

The gently sloping terrain south and southeast of Tenente Portela presents ideal conditions for large-scale solar photovoltaic installations. These areas offer several advantages including consistent southern exposure, minimal shading from topographical features, and relatively flat to gently undulating surfaces that require minimal grading for solar panel installation. The broad plateau areas extending toward the municipalities of Frederico Westphalen and Seberi provide particularly suitable locations. These zones feature stable, well-drained soils and gentle slopes that facilitate both construction access and optimal panel orientation. The existing agricultural infrastructure, including access roads and electrical transmission lines, would support the development of utility-scale solar facilities. Areas along the higher elevations of the local ridgelines also present favorable conditions, as they receive consistent solar exposure without significant obstruction from surrounding terrain. The elevated positions provide natural drainage and reduce the risk of flooding or water accumulation that could affect solar installations.

Infrastructure and Accessibility Considerations

The transportation network around Tenente Portela includes well-maintained rural roads that connect to major regional highways, facilitating the movement of equipment and materials necessary for large-scale solar construction. The relatively flat to gently rolling terrain minimizes the need for extensive road improvements or specialized transportation equipment. The existing electrical infrastructure, developed to serve the agricultural sector, provides a foundation for grid connection of solar facilities. Power lines and substations are already present throughout the region, though upgrades may be necessary to handle the electrical output from major solar installations. The proximity to established communities ensures access to skilled labor and support services, while the rural setting minimizes conflicts with dense residential or commercial development. The combination of suitable topography, existing infrastructure, and favorable land use patterns makes the areas surrounding Tenente Portela well-suited for renewable energy development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
