Terra Boa, Paraná, Brazil is located in the Southern Sub Tropics and shows strong potential for year-round solar energy generation, though with notable seasonal variations that reflect its geographic position.

Seasonal Solar Performance

The solar energy output at Terra Boa varies significantly throughout the year. Summer delivers the highest production at 6.95kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best performing season with 6.14kWh per day per kW, while autumn drops to 5.55kWh per day per kW. Winter presents the lowest solar production period, generating only 4.33kWh per day per kW of installed capacity. This represents a substantial decrease of about 38% compared to summer output, which is typical for locations in the Southern Hemisphere's subtropical regions. The ideal times for solar generation at Terra Boa are clearly during the warmer months of summer and spring, when the sun's path is higher in the sky and daylight conditions are most favorable for photovoltaic systems.

Optimal Panel Configuration

For maximum year-round solar production at Terra Boa, Paraná, fixed solar panels should be tilted at 21 degrees facing North. This angle has been calculated to optimize total annual energy output by accounting for the sun's varying elevation throughout the year and weighting these angles based on actual solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors could potentially impact solar energy production at Terra Boa's location in the Southern Sub Tropics:

• Seasonal rainfall patterns: The subtropical climate typically brings increased precipitation during certain months, which can reduce solar irradiance through cloud cover
• Humidity levels: High humidity common in subtropical regions can create atmospheric haze that diminishes solar panel efficiency
• Dust and agricultural particles: Being in a rural Brazilian location, airborne dust and agricultural residues may accumulate on panel surfaces
• Temperature effects: High summer temperatures can reduce photovoltaic efficiency, even though irradiance levels are at their peak

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Regular cleaning systems: Install automated cleaning mechanisms or establish routine manual cleaning schedules to remove dust and debris
• Adequate ventilation: Ensure proper airflow around panels to prevent overheating and maintain efficiency during hot periods
• Quality mounting systems: Use corrosion-resistant mounting hardware suitable for humid subtropical conditions
• Strategic positioning: Consider local wind patterns and vegetation growth when planning panel placement to minimize shading and debris accumulation

Overall, Terra Boa represents a reasonably good location for solar energy generation, with strong summer and spring performance offsetting the reduced winter output typical of subtropical locations.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

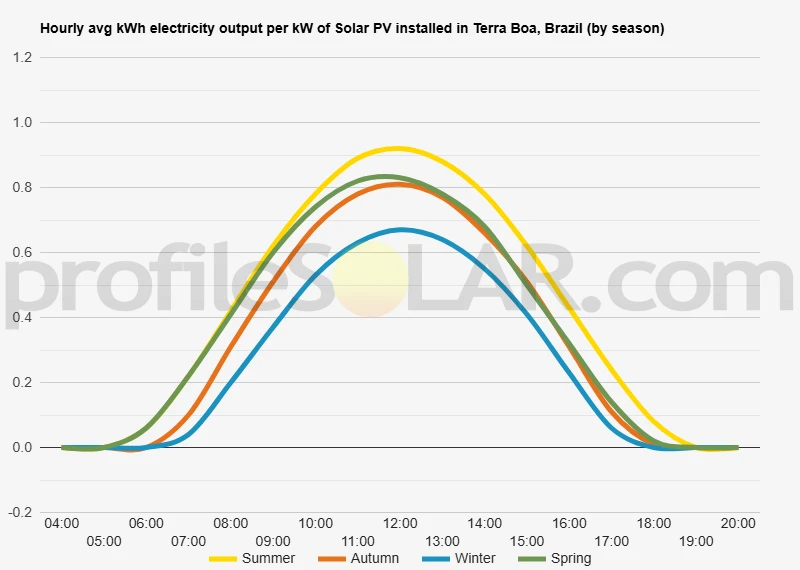

Solar output per kW of installed solar PV by season in Terra Boa

Seasonal solar PV output for Latitude: -23.683, Longitude: -52.3424 (Terra Boa, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Terra Boa, Brazil

To maximize your solar PV system's energy output in Terra Boa, Brazil (Lat/Long -23.683, -52.3424) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Terra Boa, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Terra Boa, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Terra Boa, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Terra Boa, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Terra Boa, Brazil

Topographical Features of Terra Boa Region

Terra Boa is located in the western portion of Paraná state in southern Brazil, positioned within a predominantly flat to gently rolling landscape characteristic of the Paraná Plateau. This area sits at an elevation of approximately 400 to 500 meters above sea level, forming part of the extensive sedimentary plateau that covers much of the state's interior.

The terrain around Terra Boa consists primarily of broad, undulating plains with gentle slopes that rarely exceed gradients of 5 to 8 percent. These low-relief surfaces were formed by ancient lava flows and subsequent erosion, creating a landscape of wide valleys separated by low, rounded ridges. The area is drained by small tributaries that flow westward toward the Paraná River system, with watercourses typically occupying shallow valleys that cut modestly into the plateau surface.

The soil composition in this region is predominantly composed of fertile red earth known locally as "terra roxa," derived from weathered basaltic rock. This well-drained soil type, combined with the relatively stable terrain, provides excellent foundation conditions for large-scale infrastructure development. The landscape is characterized by extensive agricultural fields, primarily dedicated to soybean, corn, and wheat cultivation, with scattered patches of remnant Atlantic Forest vegetation along waterways and steeper slopes.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Terra Boa would be the broad, elevated plateau surfaces that extend northward and eastward from the town center. These areas offer several key advantages including minimal topographical obstacles, excellent drainage characteristics, and relatively uniform terrain that would minimize earthwork requirements during construction.

The gently sloping agricultural lands located within a 15 to 25 kilometer radius of Terra Boa present particularly attractive opportunities for solar development. These areas combine favorable terrain conditions with existing access infrastructure, including rural roads and electrical transmission corridors that already serve the agricultural sector. The slight southward-facing slopes common throughout this region would provide optimal orientation for solar panel installations.

Areas immediately adjacent to existing electrical substations and transmission lines would offer additional advantages for solar development, as they would minimize the infrastructure investment required for grid connection. The relatively sparse population density in the surrounding rural areas would also reduce potential land use conflicts while providing ample space for utility-scale solar installations.

The most practical sites would avoid the narrow riparian corridors along local streams and the few areas of steeper terrain that occur where watercourses have incised more deeply into the plateau surface. Additionally, areas with existing high-value agricultural operations might present land acquisition challenges, making marginal agricultural lands or degraded pastures more attractive targets for solar development initiatives.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]
