Tibagi, Paraná, Brazil, located in the Southern Sub Tropics at latitude -24.6561 and longitude -50.5219, offers generally favorable conditions for solar photovoltaic (PV) energy generation throughout the year, though with seasonal variations.

Seasonal Solar Production

Solar energy production at this location shows clear seasonal patterns. Summer months are the most productive period, with panels generating approximately 6.72kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.79kWh/day, while autumn yields 5.16kWh/day. Winter shows the lowest production at 4.22kWh/day per installed kilowatt.

This seasonal pattern creates a moderate variation between peak and low production periods, with winter generating about 37% less energy than summer. Despite this reduction, the location maintains reasonable production year-round, with no season dropping below 4kWh/day per installed kilowatt.

Optimal Panel Installation

For fixed solar panel installations in Tibagi, Paraná, the ideal tilt angle to maximize year-round energy production is 22 degrees facing North. This angle optimizes the annual solar harvest by balancing seasonal variations and accounting for the Earth's elliptical orbit around the sun.

Environmental and Weather Considerations

Several environmental factors could potentially affect solar production in Tibagi:

• The region experiences a subtropical climate with rainfall throughout the year, which may temporarily reduce solar output during precipitation events.
• Occasional dust storms or agricultural burning in the broader region could deposit particulate matter on panels, gradually reducing efficiency.
• Morning fog and mist are common in river valleys in this region, potentially delaying peak morning production.

To mitigate these challenges, solar installations should include regular cleaning schedules to remove dust and debris. Installing panels at the recommended 22-degree tilt also helps with natural cleaning during rainfall. Additionally, using quality inverters with good partial shading tolerance can help maintain production during periods of variable cloud cover.

Overall, Tibagi offers a good location for solar PV with consistent year-round production, making it suitable for residential and commercial installations despite some seasonal variations.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

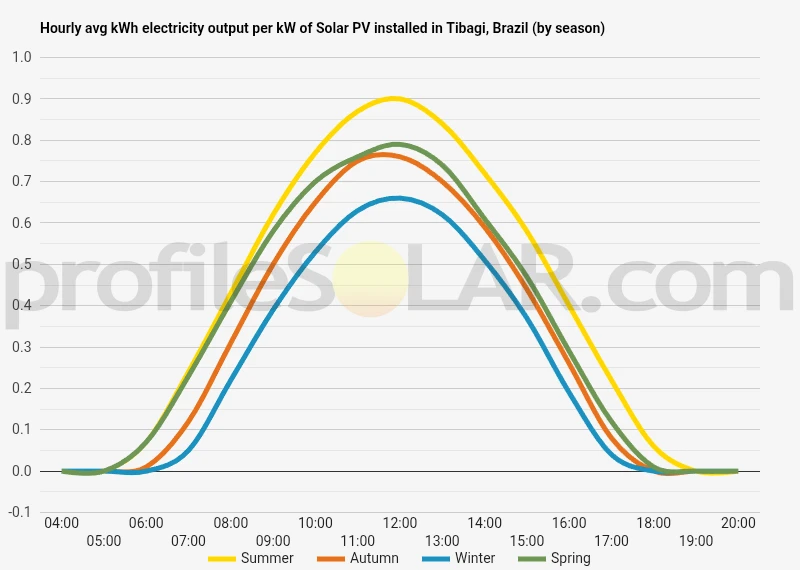

Solar output per kW of installed solar PV by season in Tibagi

Seasonal solar PV output for Latitude: -24.6561, Longitude: -50.5219 (Tibagi, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Tibagi, Brazil

To maximize your solar PV system's energy output in Tibagi, Brazil (Lat/Long -24.6561, -50.5219) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tibagi, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tibagi, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	30° North in Autumn	40° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tibagi, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tibagi, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tibagi, Brazil

The region surrounding Tibagi, located in the state of Paraná in southern Brazil, presents a diverse and undulating topography characterized by rolling hills, river valleys, and distinctive geological formations. Tibagi sits within the Second Paraná Plateau, a significant geographical feature that shapes much of the local landscape. The terrain generally consists of moderate elevations ranging from approximately 700 to 1,100 meters above sea level, creating a varied relief pattern throughout the area. The Tibagi River, one of the most important watercourses in Paraná state, cuts through the region and has been instrumental in shaping the local topography over millennia. This river has carved valleys and created natural drainage systems that define much of the landscape. The riverbanks and associated floodplains represent lower elevation areas, while gentle to moderate slopes rise away from these water features.

Geological Characteristics

Geologically, the Tibagi region is notable for its sandstone formations, which are part of the Devonian period deposits in the Paraná Basin. These formations have weathered over time to create distinctive features including canyons, cliffs, and unusual rock formations. The Guartelá Canyon, located near Tibagi, represents one of the most dramatic topographical features in the area, where the Tibagi River has cut through sandstone to create steep canyon walls. The soil composition varies throughout the region, with sandy soils predominating in areas directly influenced by the sandstone bedrock. These soils tend to drain well but may have limited agricultural productivity without amendments. In other parts of the region, deeper and more fertile soils have developed, particularly in valleys and less steep areas.

Vegetation and Land Cover

The natural vegetation of the region includes elements of the Atlantic Forest and Araucaria moist forests, though much of the original forest cover has been modified by human activities. The current land cover is a mosaic of agricultural areas, pastures, secondary forests, and some remnants of primary forest. This vegetation pattern both influences and reflects the underlying topographical features.

Solar PV Suitability

For large-scale solar photovoltaic development, the most suitable areas near Tibagi would be the gently sloping plateaus and elevated flat areas that characterize portions of the Second Paraná Plateau. These locations offer several advantages for solar deployment: The higher elevation areas to the north and northeast of Tibagi present relatively flat terrain with minimal shadowing effects from surrounding features. These plateau regions receive consistent solar radiation and would require minimal land preparation for solar array installation. Areas with southward-facing gentle slopes (in the Southern Hemisphere, north-facing slopes receive more direct sunlight, but gentle south-facing slopes can still be viable) could also be suitable, particularly where vegetation is already limited and soil conditions are less favorable for agriculture. The regions with sandier soils derived from sandstone formations, while less productive for agriculture, could be ideal for solar development as they typically offer good drainage, reducing concerns about erosion or flooding during installation and operation. Areas to avoid would include the steeper slopes near the Tibagi River canyon, locations with dense forest cover that would require significant clearing, and floodplains or areas with high water tables that could pose challenges for infrastructure stability. The relatively consolidated bedrock in many parts of the region provides good foundation conditions for solar array mounting systems, potentially reducing construction costs compared to areas with less stable geological conditions.

Infrastructure Considerations

The existing road network around Tibagi, while not extensive, does provide access to many of the potentially suitable areas for solar development. The proximity to existing transmission infrastructure would need to be evaluated on a site-specific basis, as this represents a critical factor in determining the economic viability of large-scale solar projects. The topographical diversity of the Tibagi region means that site-specific assessments would be essential for any serious solar development planning, with particular attention to local slope, aspect, shadowing effects, and soil stability conditions.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
