Tijucas do Sul, Brazil presents a moderately favorable location for year-round solar PV energy generation, though with notable seasonal variations typical of its Southern Sub Tropics climate zone.

Seasonal Solar Performance

The location experiences significant seasonal fluctuations in solar energy output. Summer delivers the strongest performance at 6.17 kWh per day per kW of installed capacity, making it the optimal season for solar generation. Spring follows as the second-best period with 5.05 kWh per day per kW, while autumn drops to 4.48 kWh per day per kW. Winter presents the most challenging conditions for solar generation, producing only 3.64 kWh per day per kW of installed capacity. This represents a 41% reduction compared to summer output, which is substantial but not uncommon for locations at this latitude.

Optimal Installation Configuration

For fixed panel installations at Tijucas do Sul, the ideal tilt angle is 23 degrees facing North to maximize total year-round production. This angle has been calculated to optimize solar capture across all seasons by accounting for the sun's varying elevation throughout the year and weighting these angles based on solar irradiance data.

Environmental and Weather Challenges

Several local factors could potentially impact solar production at this Southern Sub Tropics location:

• High humidity and moisture: The subtropical climate brings elevated humidity levels that can reduce panel efficiency and promote dust accumulation on panel surfaces
• Seasonal cloud cover: Winter months may experience increased cloud coverage, contributing to the reduced output during this period
• Heavy rainfall periods: Intense seasonal rains typical of subtropical regions can temporarily reduce solar generation
• Temperature effects: High summer temperatures can reduce panel efficiency despite increased sunlight availability

Preventative Installation Measures

To optimize solar performance despite these challenges, several installation strategies should be considered. Proper panel ventilation is crucial - ensuring adequate airflow behind and around panels helps manage heat buildup during hot summer months, maintaining optimal efficiency. Regular cleaning systems or easy access for manual cleaning becomes essential in this humid environment where dust and organic matter accumulate more readily on panel surfaces. Installing panels with anti-reflective coatings designed for high-humidity environments can also help maintain performance. Robust mounting systems designed to withstand heavy rainfall and potential wind associated with subtropical weather patterns are necessary. Additionally, selecting panels with good low-light performance characteristics can help maximize generation during cloudier winter periods. Overall, while Tijucas do Sul offers reasonable solar potential, the seasonal variation means that energy storage or grid-tied systems become particularly important to manage the winter production dip effectively.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

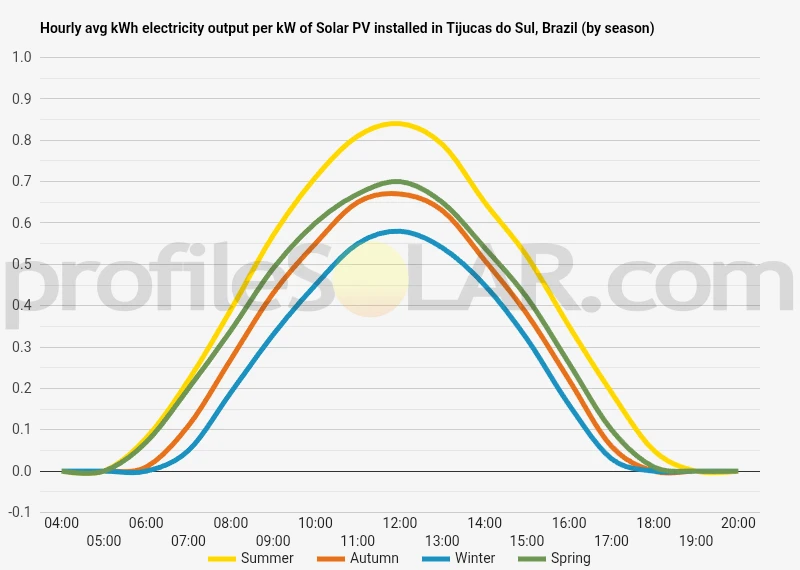

Solar output per kW of installed solar PV by season in Tijucas Do Sul

Seasonal solar PV output for Latitude: -25.9011, Longitude: -49.117 (Tijucas Do Sul, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° North in Tijucas Do Sul, Brazil

To maximize your solar PV system's energy output in Tijucas Do Sul, Brazil (Lat/Long -25.9011, -49.117) throughout the year, you should tilt your panels at an angle of 23° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tijucas Do Sul, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tijucas Do Sul, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	41° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tijucas Do Sul, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tijucas Do Sul, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tijucas Do Sul, Brazil

Topography of the Tijucas do Sul Region

Tijucas do Sul sits within the Serra do Mar mountain range in the state of Paraná, Brazil, positioned approximately 50 kilometers southeast of Curitiba. The terrain around this municipality is characterized by rolling hills and moderate elevations, typical of the Atlantic Plateau region. The landscape features a mix of gentle slopes and steeper inclines, with elevations generally ranging from 800 to 1,200 meters above sea level.

The region displays the classic undulating topography of the Brazilian Highlands, where ancient geological formations have been shaped by millions of years of erosion. Numerous small valleys and ridgelines create a varied terrain that supports both agricultural activities and natural Atlantic Forest remnants. The area experiences a subtropical highland climate, with the elevation contributing to cooler temperatures than coastal regions at the same latitude.

Water features play an important role in shaping the local landscape, with several small rivers and streams flowing through the valleys toward the Atlantic Ocean. These waterways have carved gentle depressions in the terrain over time, creating natural drainage patterns that influence both the topography and local microclimates.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Tijucas do Sul would be the elevated plateaus and gentle south-facing slopes that characterize much of the region. These areas offer relatively flat or gradually sloping terrain that minimizes the need for extensive grading and reduces installation costs while maintaining good solar exposure throughout the day.

The higher elevation areas, particularly those above 900 meters, present excellent opportunities for solar development due to their consistent exposure and reduced atmospheric interference. The clearer air at these elevations, combined with the region's position away from major urban centers, means less atmospheric pollution to diminish solar irradiance reaching photovoltaic panels.

Agricultural areas with gentle slopes of less than 15 degrees would be particularly well-suited for solar farms, as the existing cleared land reduces environmental impact and development costs. Many of these areas feature good road access, which is essential for construction and maintenance activities. The rolling nature of the terrain also provides natural windbreaks that can help protect solar installations from severe weather events.

Areas near existing electrical infrastructure would be most practical for development, as the region's power grid connects to the broader Paraná state electrical network. The proximity to Curitiba's metropolitan area also means that large-scale solar installations could contribute directly to meeting urban energy demands while taking advantage of the more favorable conditions found in this elevated rural setting.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
