Tiradentes, Minas Gerais, Brazil is located in a favorable tropical region for solar energy generation, with consistent sunlight availability throughout most of the year due to its position in the tropics where seasons are characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Performance

The solar energy output at this location shows strong year-round potential, though with noticeable seasonal variation. Summer delivers the highest production at 6.38kWh per day per kW of installed solar capacity, making it the optimal season for solar generation. Spring follows as the second-best performing season with 5.81kWh/day per kW, while autumn produces 5.53kWh/day per kW. Winter represents the lowest production period at 4.93kWh/day per kW, though this output level still remains quite respectable for solar energy generation. The difference between peak summer and lowest winter production is approximately 23%, indicating relatively stable solar conditions throughout the year. For maximum energy production from a fixed panel installation at this location, solar panels should be tilted at an angle of 20 degrees facing north. This optimal tilt angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these factors using solar irradiance data while accounting for Earth's elliptical orbit patterns.

Environmental and Weather Challenges

Several environmental factors at Tiradentes could potentially impact solar energy production and require consideration during installation planning. The tropical climate brings distinct wet and dry seasons, with the wet season likely coinciding with the lower winter production period. Heavy rainfall and increased cloud cover during wet months can reduce solar irradiance, though the seasonal production data suggests this impact, while noticeable, doesn't severely compromise overall system performance. Humidity levels in tropical regions can be consistently high, potentially leading to moisture-related issues with solar equipment over time. High temperatures, while beneficial for solar irradiance, can actually reduce photovoltaic panel efficiency as most solar panels perform less efficiently in extreme heat.

Preventative Installation Measures

Several installation strategies can help maximize solar production and system longevity at this location:

• Install panels with adequate ventilation spacing underneath to promote air circulation and cooling, reducing efficiency losses from overheating
• Use corrosion-resistant mounting hardware and electrical components rated for high-humidity tropical environments
• Ensure proper drainage around ground-mounted systems to prevent water accumulation during heavy rainfall periods
• Select solar panels and inverters specifically rated for tropical climates with appropriate temperature coefficients
• Implement regular cleaning schedules to remove dust, pollen, and organic matter that may accumulate more readily in humid conditions

The location's elevation and inland position may help moderate some tropical climate extremes compared to coastal areas. Overall, Tiradentes presents a quite favorable environment for solar energy generation, with the main considerations being proper equipment selection and installation techniques suited to tropical conditions rather than any fundamental limitations to solar viability.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

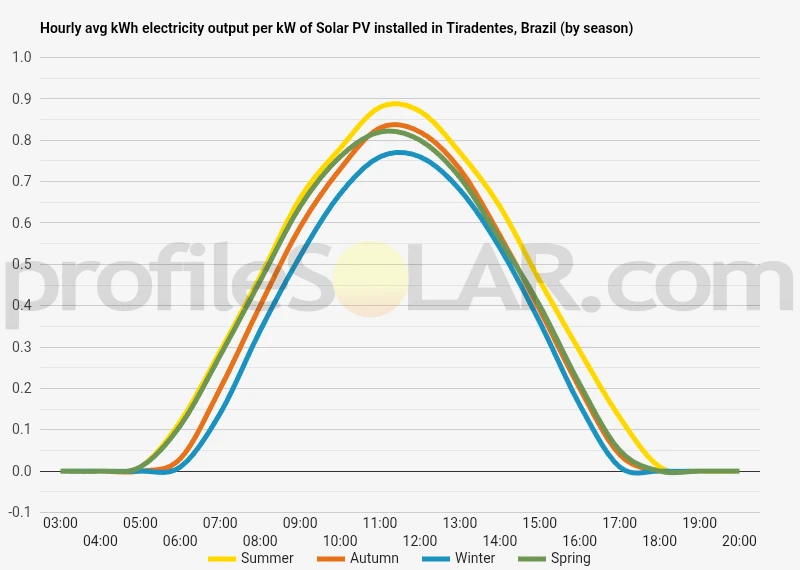

Solar output per kW of installed solar PV by season in Tiradentes

Seasonal solar PV output for Latitude: -21.1189, Longitude: -44.1585 (Tiradentes, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Tiradentes, Brazil

To maximize your solar PV system's energy output in Tiradentes, Brazil (Lat/Long -21.1189, -44.1585) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tiradentes, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tiradentes, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tiradentes, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tiradentes, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tiradentes, Brazil

Topographical Features Around Tiradentes

Tiradentes sits nestled in the Serra de São José mountain range within the state of Minas Gerais, characterized by rolling hills and elevated terrain typical of Brazil's southeastern highlands. The town itself perches at approximately 900 meters above sea level, surrounded by a landscape of gentle slopes, rocky outcrops, and scattered valleys that create a picturesque but challenging topographical environment.

The immediate vicinity features a mix of forested hillsides and open grasslands, with the terrain becoming increasingly rugged toward the higher elevations of the Serra de São José. Ancient quartzite formations dominate the geological structure, creating distinctive ridgelines and rocky escarpments that define the regional character. These formations have weathered over millions of years to produce a landscape of moderate relief with occasional steep gradients.

Water features include several small streams and seasonal watercourses that flow through the valleys, eventually draining toward larger river systems. The topography creates natural drainage patterns that channel rainfall efficiently, though the elevated position means the area experiences good natural drainage overall.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations lie in the broader valleys and plateaus extending northeast and southwest of Tiradentes, where the terrain levels out into more manageable gradients. These areas offer the dual advantages of reduced installation complexity and lower environmental impact compared to the steeper hillsides closer to town.

Agricultural lands in the surrounding municipalities present excellent opportunities, particularly those areas currently used for cattle grazing or crop cultivation on relatively flat terrain. The existing cleared land reduces the need for vegetation removal while providing the large contiguous spaces necessary for utility-scale solar farms.

The plateau areas approximately 10-15 kilometers from the town center toward the northeast offer particularly favorable conditions, with gentle slopes that facilitate both construction access and optimal panel orientation. These locations benefit from being sufficiently distant from the historic town center to avoid visual impact concerns while remaining accessible via existing rural road networks.

Areas with southern exposure on the gentler hillsides also merit consideration, especially those with slopes between 5-15 degrees that can enhance solar collection efficiency. However, the most practical large-scale developments would likely focus on the flatter agricultural zones where construction costs remain manageable and grid connection infrastructure already exists or can be readily established.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
